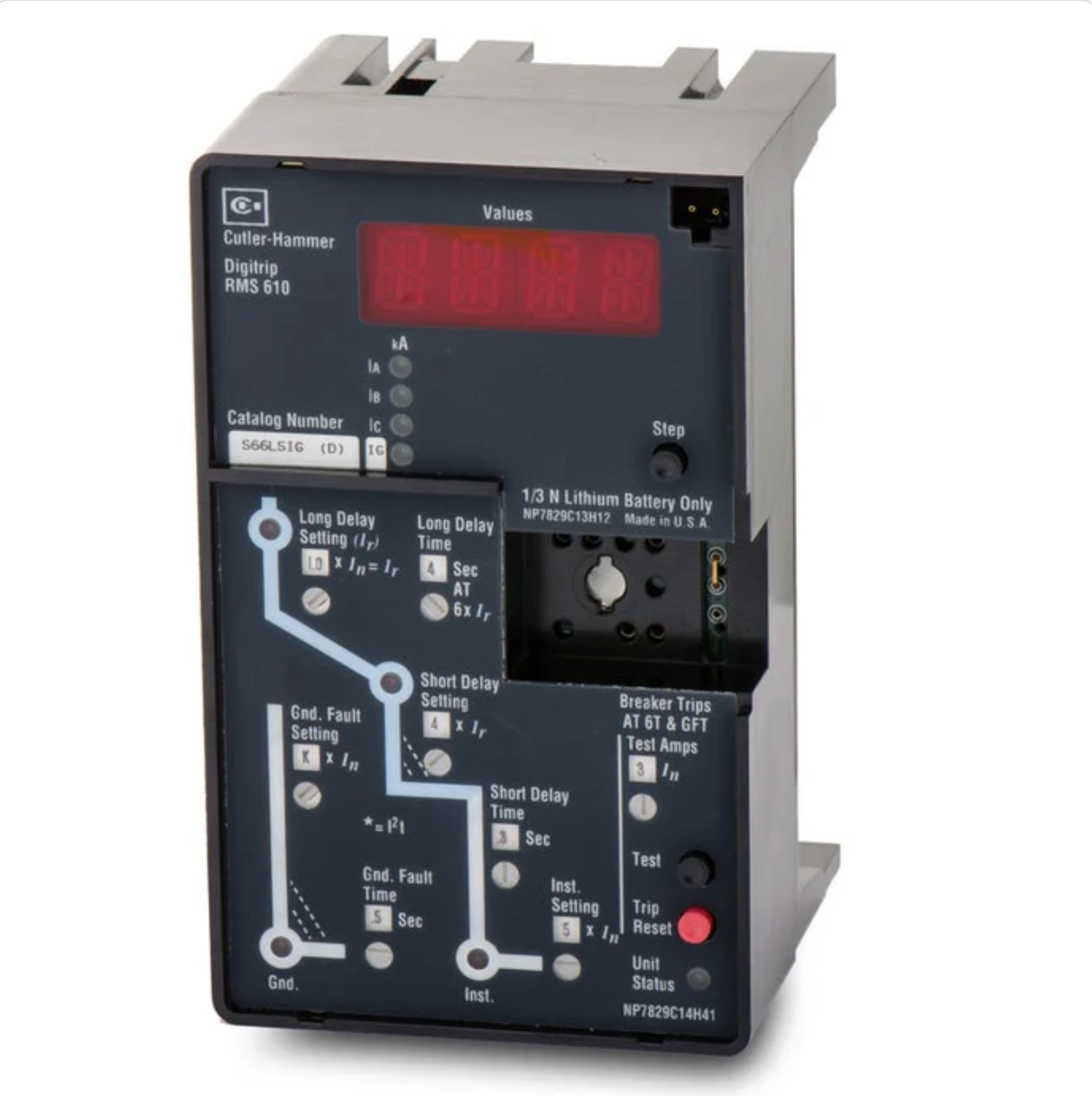

Eaton S66LSIG Digitrip RMS Circuit Breaker Programmer LSIG Protection
- Regular price
- $1,935.00
- Sale price
- $1,935.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S66LSIG
Description
The Eaton S66LSIG is a Digitrip RMS circuit breaker programmer designed to configure and manage solid-state trip units used in Eaton molded case circuit breakers. Eaton part number S66LSIG supports LSIG protection functions, including long-time, short-time, instantaneous, and ground fault protection. This device enables technicians to accurately program and test breaker protection settings for reliable operation in industrial power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Cutler-Hammer |
| Category | Circuit Protection |
| Part Number | S66LSIG |
| Subcategory | Circuit Breaker Programmer |
| Product Type | Digitrip RMS Circuit Breaker Programmer |
| Series | S66 |
| Protection Functions | Long-Time, Short-Time, Instantaneous, Ground Fault (LSIG) |
| Breaker Compatibility | DS, DSL, DSII, DSLII, SPB |
| Protection Technology | Solid-State Digitrip RMS |
| Breaker Poles Supported | Three-pole |
| Typical Breaker Rating Support | Up to 800 A |
| Application | Programming and testing electronic trip units |
| Weight | 3 lb |
Information About S66LSIG
The S66LSIG is part of Eaton’s S66 series Digitrip RMS programming tools developed for configuring electronic trip units in compatible circuit breakers. It is specifically designed for breakers equipped with LSIG protection features, providing adjustments for long-time, short-time, instantaneous, and ground fault trip parameters. The unit is used with DS, DSL, DSII, DSLII, and SPB molded case circuit breakers to facilitate precise protection setup and maintenance. Its design supports safe and accurate calibration of breaker protection functions in critical electrical distribution systems.
Key Features:
- Digitrip RMS Programming Tool: Used to configure and test electronic trip unit protection settings.
- LSIG Protection Configuration: Supports long-time, short-time, instantaneous, and ground fault protection adjustments.
- Compatible Breaker Series: Designed for DS, DSL, DSII, DSLII, and SPB molded case circuit breakers.
- Solid-State Protection Programming: Enables accurate configuration of electronic protection functions.
- Three-Pole Breaker Support: Designed for use with three-phase circuit breaker protection systems.
- 800 Amp Breaker Configuration: Suitable for programming high-capacity circuit breakers used in distribution systems.
- Field Service Tool: Used by technicians for breaker setup, maintenance, and testing.
- Reliable Digitrip Technology: Based on Eaton’s Digitrip RMS system for accurate electrical protection control.
The S66LSIG delivers the reliability and precision required for programming and maintaining advanced electronic trip protection in industrial circuit breaker systems.
