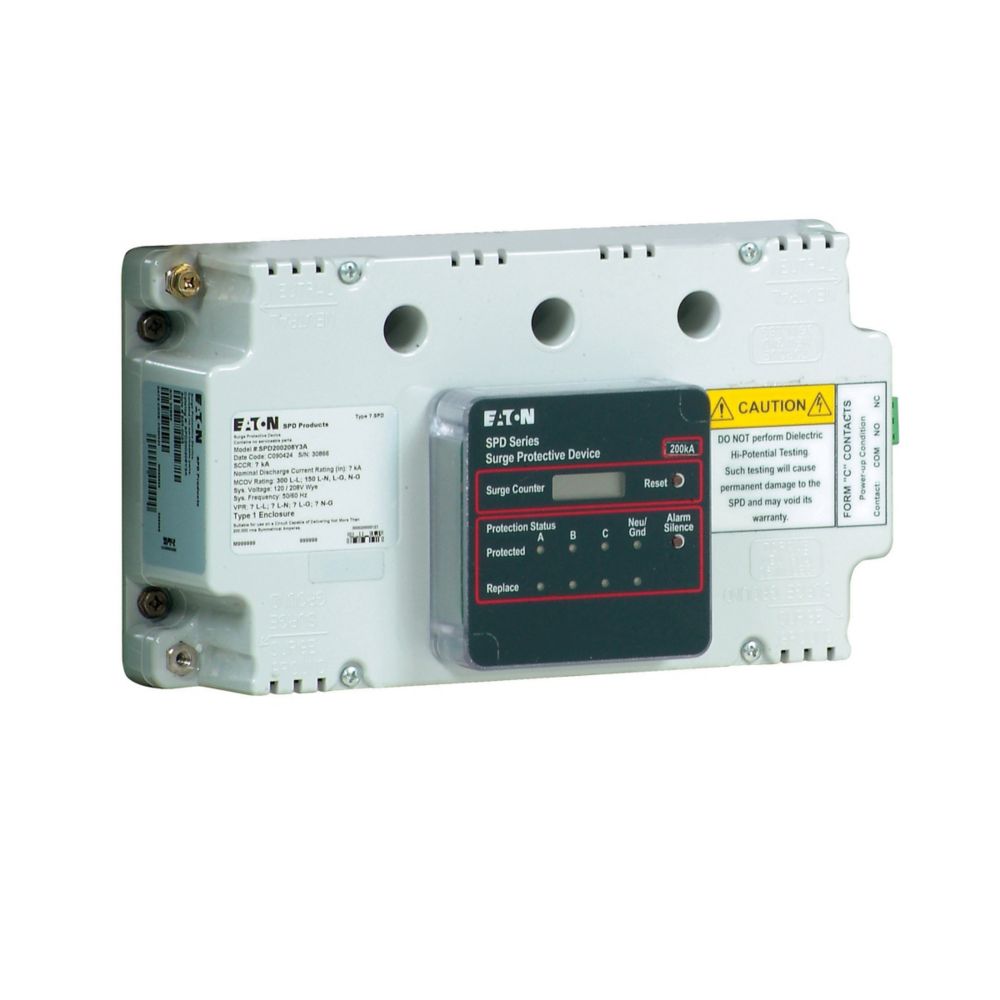

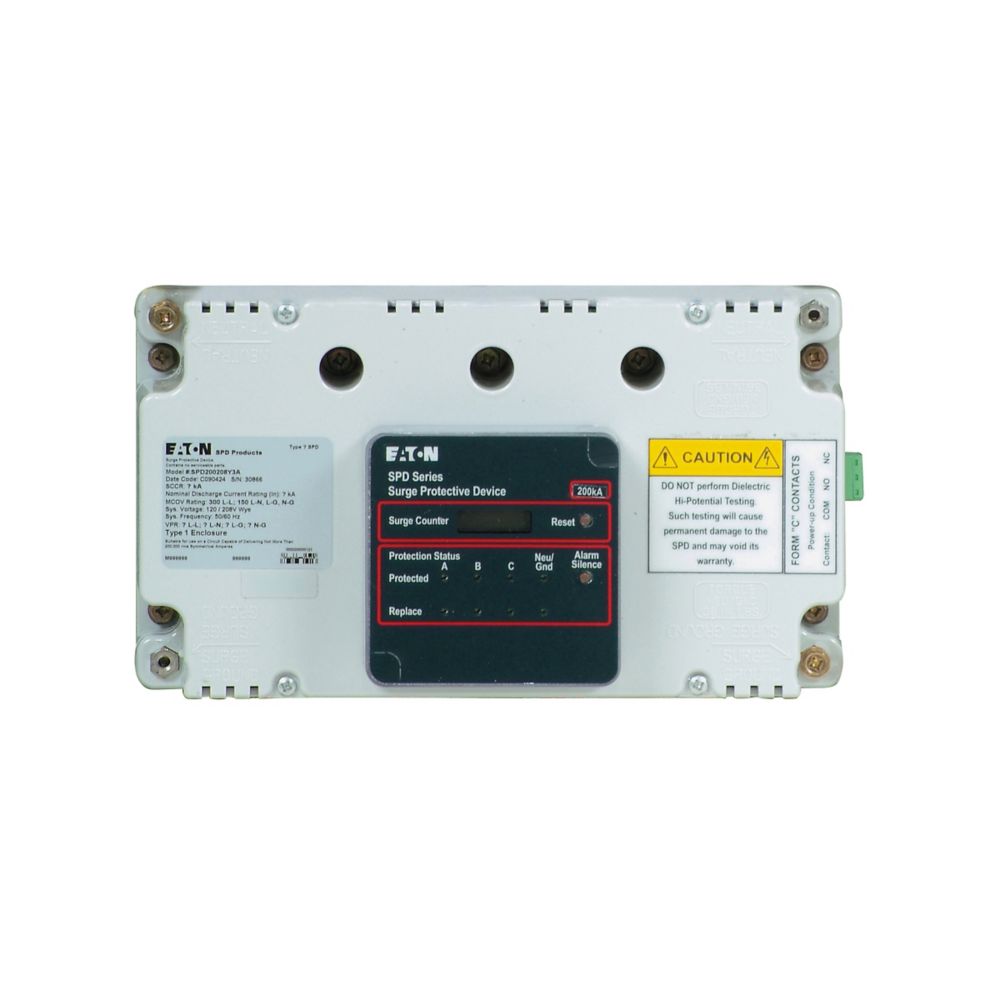

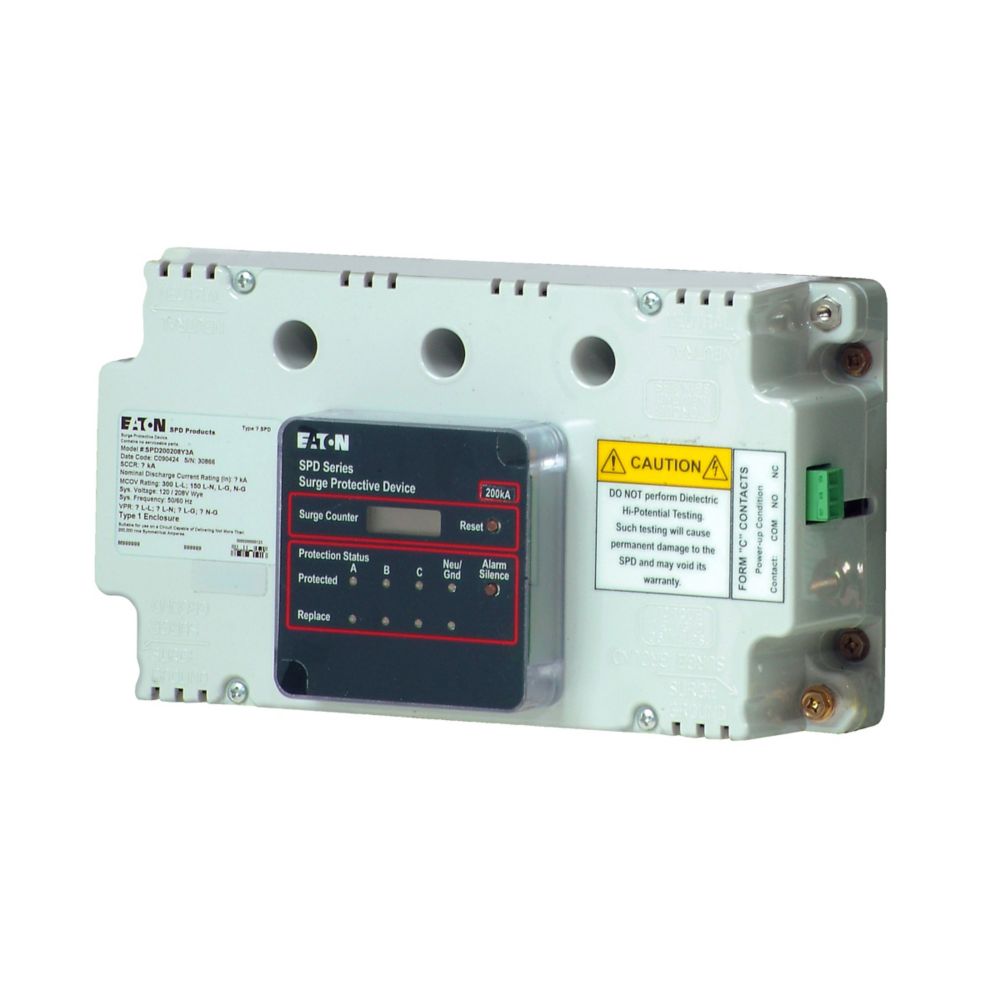

Eaton SPD100480Y2A SPD Series Surge Protection Device 277/480V 100kA
- Regular price
- $3,122.00
- Sale price
- $3,122.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SPD100480Y2A
Description
The Eaton SPD100480Y2A is a surge protection device engineered to safeguard electrical distribution systems from transient voltage spikes and surge events. Eaton part number SPD100480Y2A is designed for 277/480V wye power systems and provides high-capacity surge suppression to protect sensitive electrical equipment. Its integrated panelboard mounting design and advanced filtering features make it suitable for commercial and industrial electrical infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Power Quality Protection |
| Part Number | SPD100480Y2A |
| Subcategory | Surge Protection Device |
| Product Type | Surge Protection Device |
| Series | SPD Series |
| Voltage Rating | 277/480V Wye (4W+G) |
| Frequency Rating | 50/60 Hz |
| Nominal Discharge Current | 20 kA |
| Surge Current | 100 kA per phase |
| Interrupt Rating | 200 kAIC |
| Short-Circuit Rating | 200 kA |
| Operating Voltage | 320 L-N, 320 L-G, 320 N-G, 640 L-L |
| Mounting Method | Internal integrated |
| Compatible Panelboards | PRL1a, PRL2a, PRL3a, PRL3e |
| Operating Temperature | -40°C to 50°C |
| Certifications | UL 1449, UL Listed |
| Special Features | Audible alarm with silence button, Form C relay contact, surge counter, EMI/RFI filtering |
| Warranty | 15 years |
| Product Dimensions (L × W × H) | 9.5 × 5.4 × 3.45 in |
| Weight | 3.5 lb |
Information About SPD100480Y2A
The SPD100480Y2A is part of Eaton’s SPD Series surge protection devices, developed to protect power systems from damaging transient overvoltages caused by lightning, switching operations, and other electrical disturbances. It is designed for 277/480V wye (4-wire plus ground) systems and integrates directly with Eaton PRL1a, PRL2a, PRL3a, and PRL3e panelboards. The device features a surge capacity of 100 kA per phase and incorporates EMI/RFI filtering technology for improved power quality. With UL 1449 certification and a robust operating range from -40°C to 50°C, it delivers reliable surge protection for demanding environments.
Key Features:
- 100 kA Surge Current Capacity: Provides high-level surge protection for each phase in commercial and industrial electrical systems.
- 277/480V Wye System Compatibility: Designed for three-phase 4-wire plus ground electrical distribution networks.
- Direct Bus Panelboard Integration: Compatible with Eaton PRL1a, PRL2a, PRL3a, and PRL3e panelboards for streamlined installation.
- EMI/RFI Noise Filtering: Reduces electrical noise by up to 50 dB across 10 kHz to 100 MHz frequency range.
- Audible Alarm and Relay Contacts: Includes alarm notification with silence function and Form C relay contact for system monitoring.
- Surge Event Counter: Tracks surge events with a reset function for maintenance and diagnostics.
- High Short-Circuit Rating: Rated for up to 200 kA short-circuit current capability.
- Wide Operating Temperature Range: Reliable operation from -40°C to 50°C in demanding electrical environments.
The SPD100480Y2A delivers the reliability and precision required for protecting electrical distribution equipment and sensitive electronics from harmful transient voltage events.
