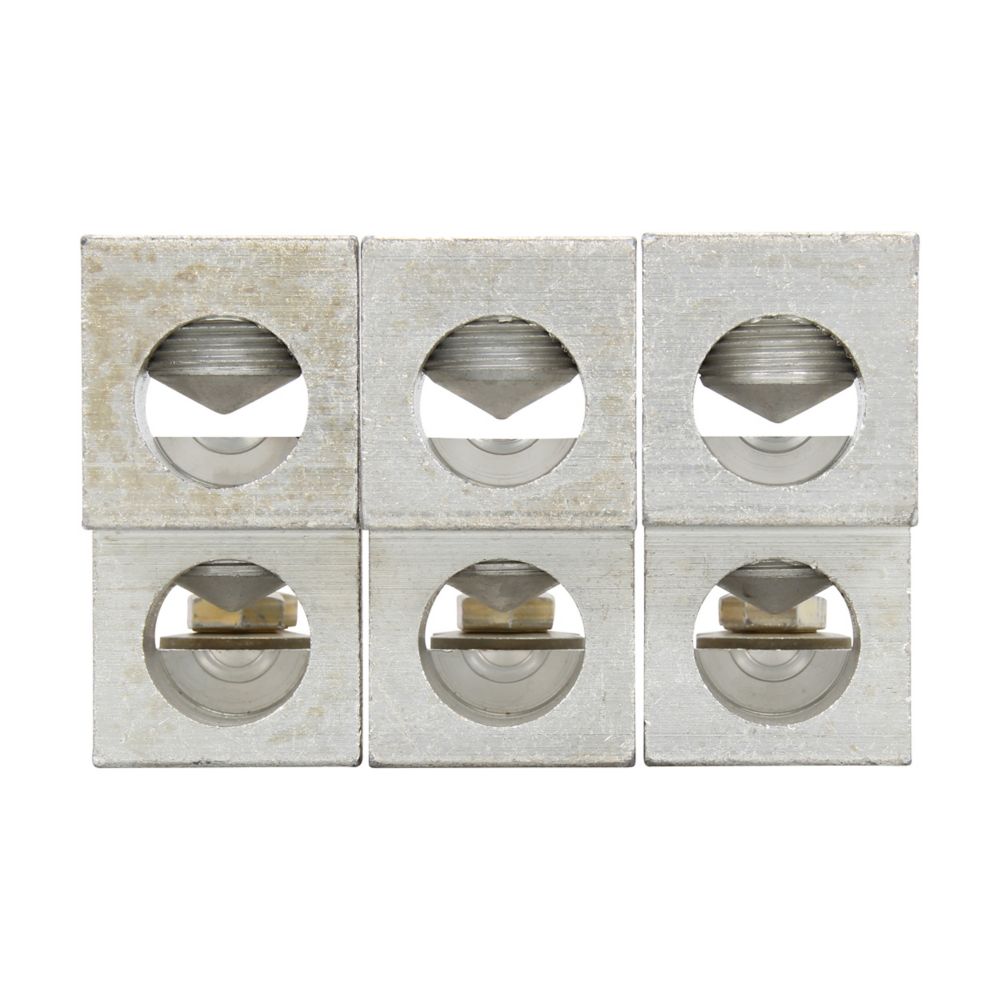

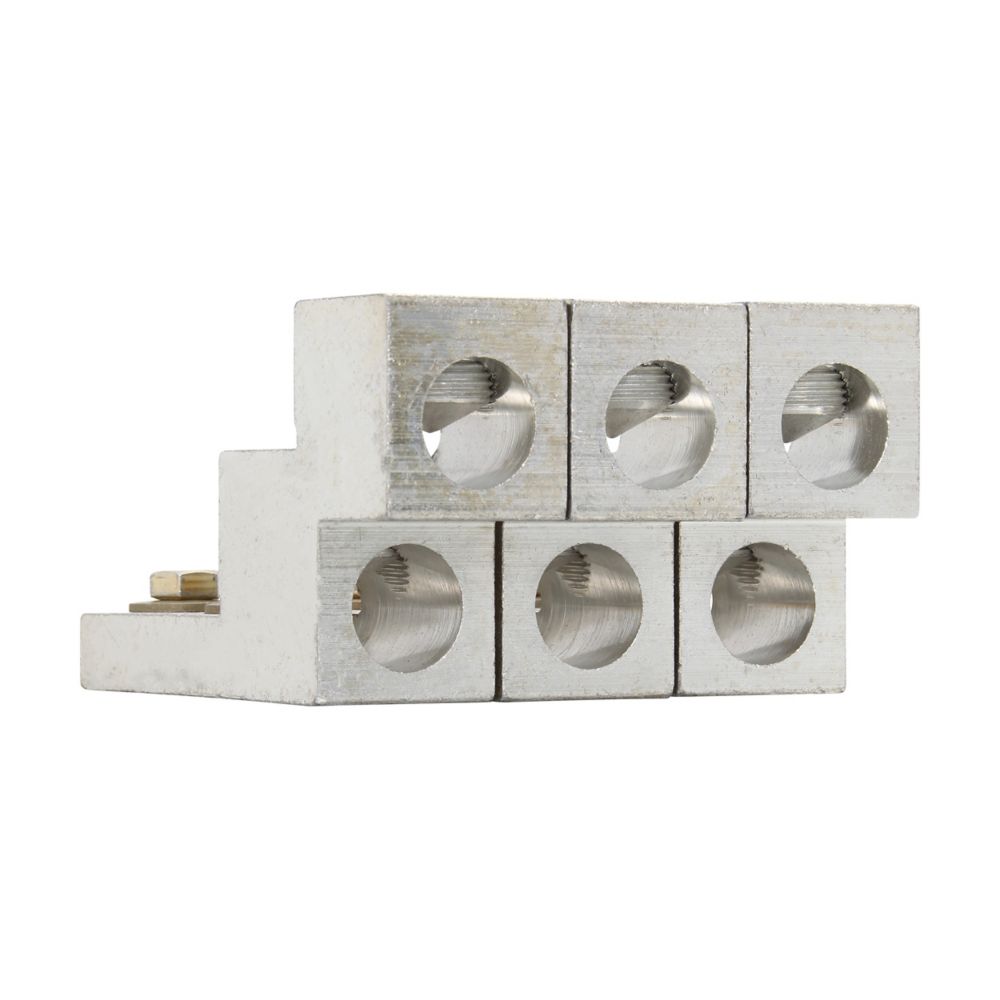

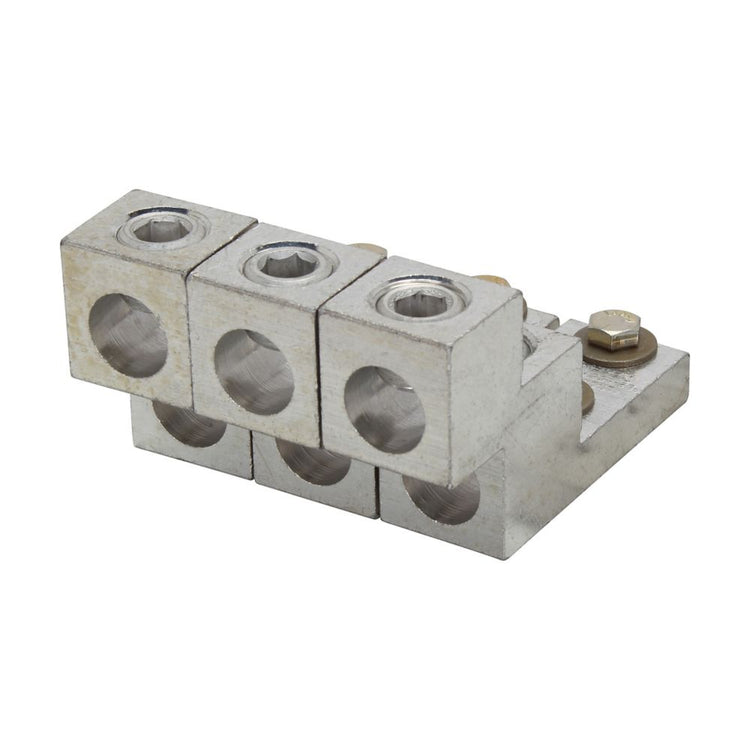

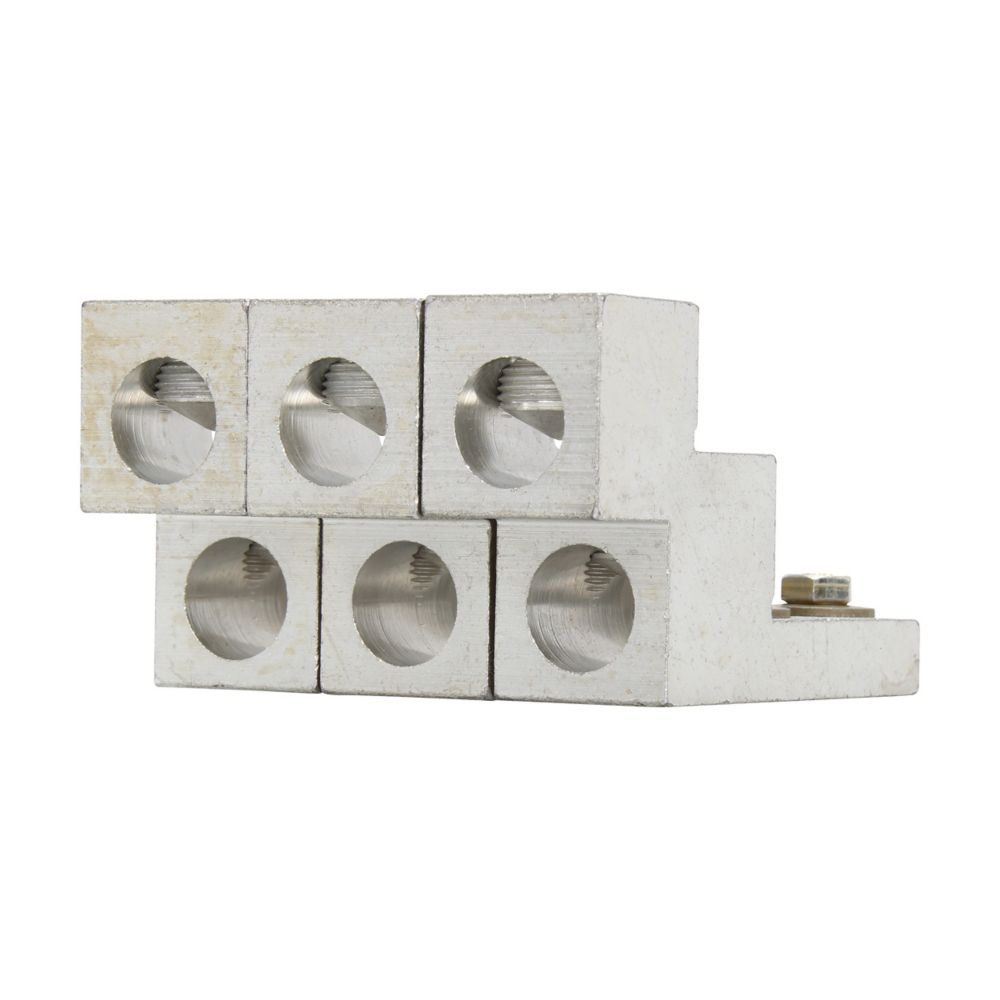

Eaton TA2000RD 2000A Line and Load Terminal Kit for Series G R-Frame Circuit Breakers
- Regular price
- $2,556.00
- Sale price
- $2,556.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TA2000RD
Description
The Eaton TA2000RD is a molded case circuit breaker terminal accessory designed to provide secure line and load connections for high-capacity circuit breakers. Eaton part number TA2000RD supports electrical systems rated up to 2000 A and is engineered for use with Eaton Series G R-frame breaker assemblies. Its heavy-duty construction ensures reliable conductor termination and stable electrical performance in demanding industrial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | TA2000RD |
| Subcategory | Circuit Breaker Terminals |
| Product Type | Molded case circuit breaker accessory |
| Series | Series G |
| Used With | Eaton R-frame molded case circuit breakers |
| Amperage Rating | 2000 A |
| Frame Compatibility | Frame J–K |
| Terminal Type | Line and load terminals |
| Wire Size Range | (6) #2 AWG – 600 kcmil |
| Global Catalog | TA2000RD |
| Product Dimensions (L × W × H) | 12.5 × 7 × 6.75 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 26.02 lb |
Information About TA2000RD
The TA2000RD is a molded case circuit breaker terminal kit manufactured by Eaton for use with R-frame breakers in Series G circuit protection systems. It provides line and load terminal connections designed to accommodate large conductors used in high-current industrial and commercial power installations. The assembly supports a wide conductor range, allowing connections from #2 AWG up to 600 kcmil for multiple conductors. Engineered for durability and high-current performance, the terminal kit enables secure and efficient power distribution when installed on compatible molded case circuit breakers.
Key Features:
- 2000 Amp Current Capacity: Designed to support high-current electrical connections for large distribution breakers.
- R-Frame Breaker Compatibility: Specifically engineered for Eaton Series G R-frame molded case circuit breakers.
- Line and Load Terminal Configuration: Provides connection points for both incoming and outgoing power conductors.
- Wide Conductor Range: Supports wire sizes from #2 AWG to 600 kcmil for flexible installation.
- Heavy-Duty Terminal Assembly: Built for reliable electrical conductivity and mechanical durability.
- Industrial Power Distribution Use: Suitable for switchboards, panelboards, and large electrical distribution equipment.
- Secure Electrical Termination: Ensures stable connections to maintain circuit protection performance.
- Series G System Integration: Designed to integrate seamlessly with Eaton Series G breaker platforms.
The TA2000RD delivers the reliability and precision required for secure high-current conductor termination in molded case circuit breaker installations.
