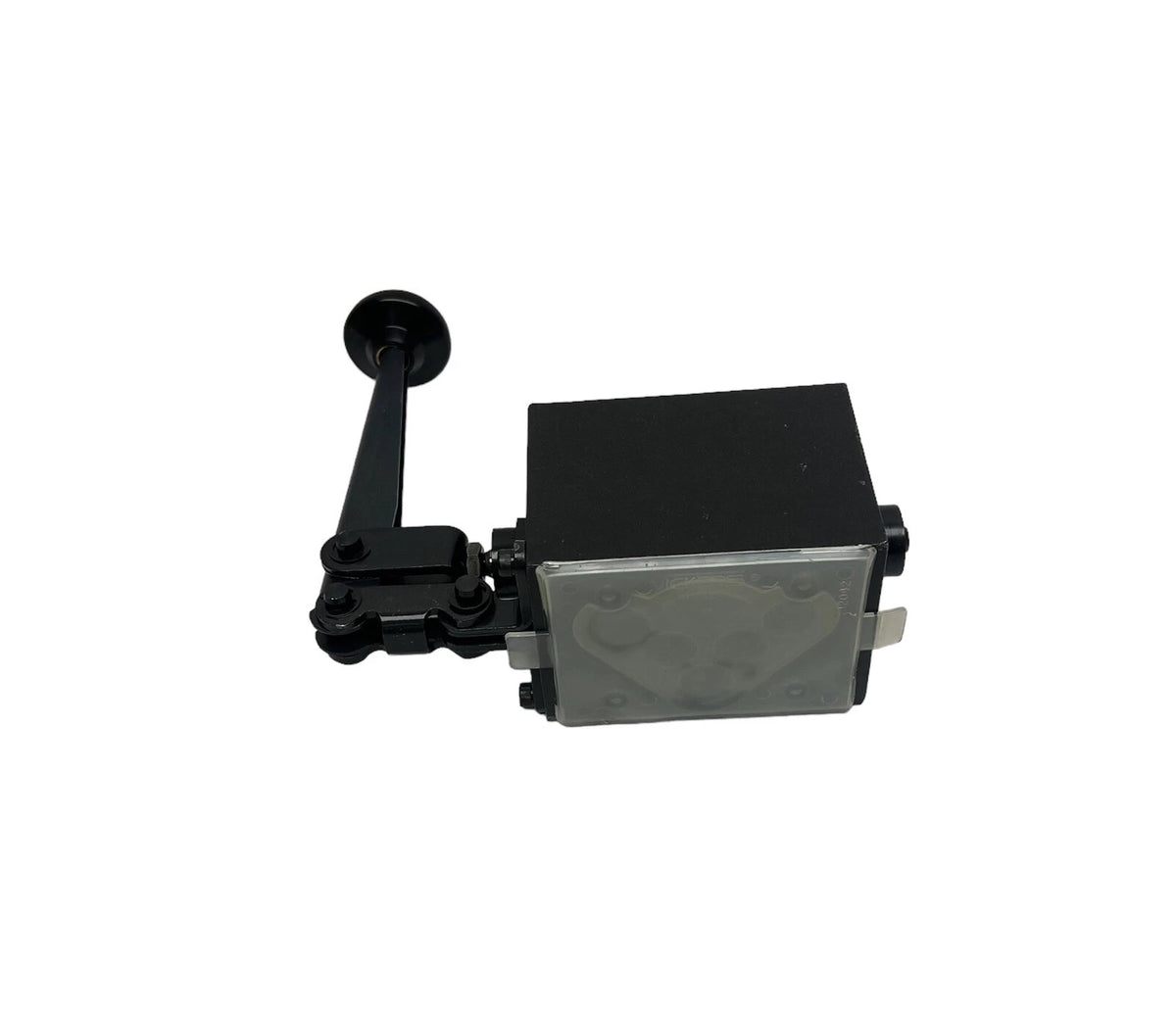

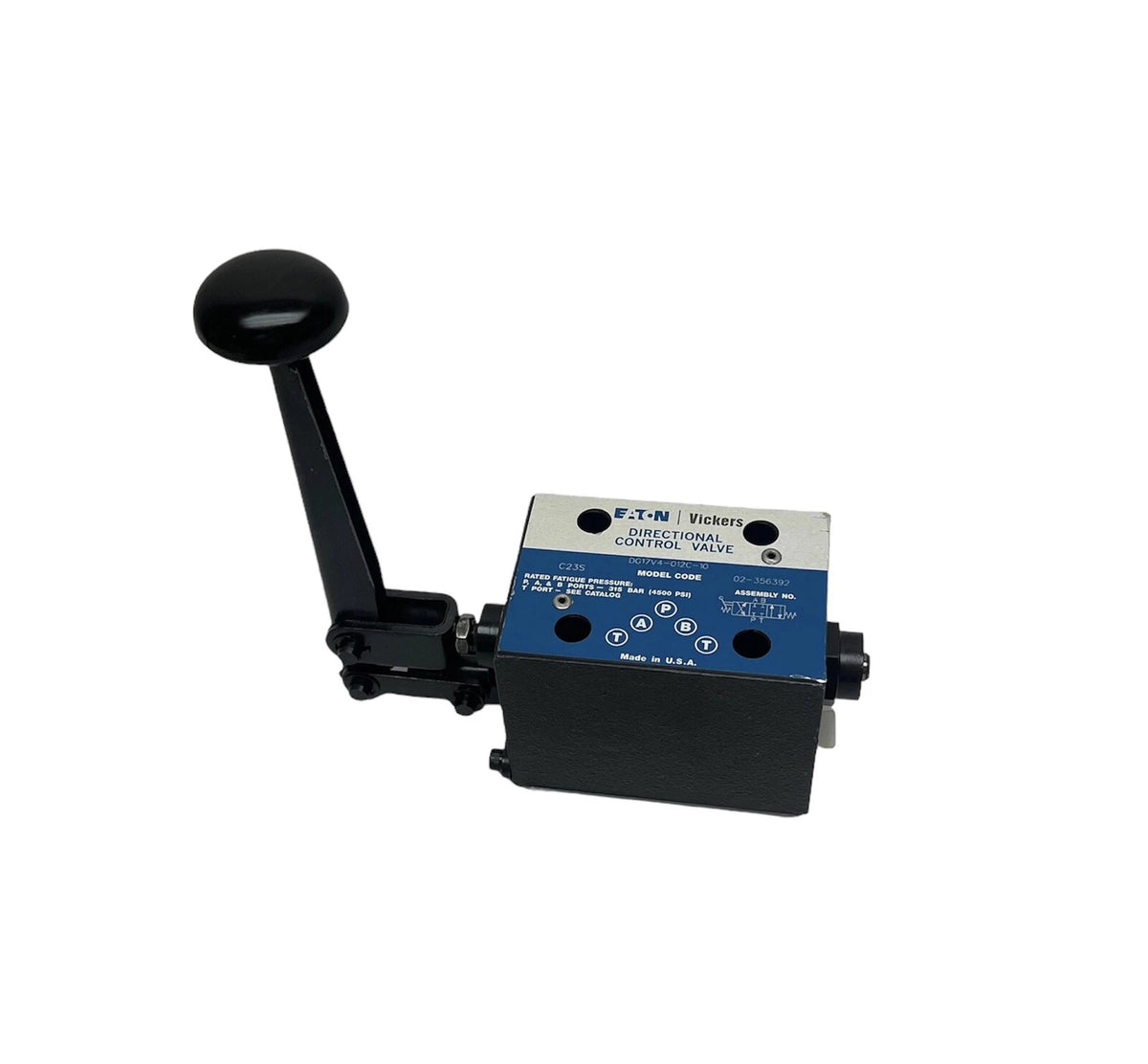

Eaton Vickers DG17V4-012C-10 Manual Hydraulic Directional Control Valve D05 4500 PSI 30 GPM
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DG17V4-012C-10
Description
The Eaton Vickers DG17V4-012C-10 is a manually operated hydraulic directional control valve designed to regulate fluid flow in industrial hydraulic systems. Featuring a four-way, three-position configuration with lever actuation and a spring-centered closed-center spool, it supports precise directional control of hydraulic actuators and cylinders. Rated for operating pressures up to 4,500 psi and flow rates up to 30 GPM, the valve is suitable for hydraulic machinery, manufacturing equipment, and industrial power units.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Eaton Vickers |
|
Category |
Hydraulics & Fluid Power |
|
Part Number |
DG17V4-012C-10 |
|
Subcategory |
Directional Control Valves |
|
Manufacturer Part Number |
02-356392 |
|
Series |
DG17V4-01 |
|
Design Number |
10 |
|
Product Type |
Manual Hydraulic Directional Control Valve |
|
Valve Configuration |
4-Way, 3-Position |
|
Actuation Type |
Manual Lever |
|
Spool Type |
Closed Center (All Ports Blocked) |
|
Spool Spring Arrangement |
Spring Centered |
|
Maximum Operating Pressure |
4,500 psi (310 bar) |
|
Maximum Flow Rate |
30 GPM (114 L/min) |
|
Maximum T-Port Pressure |
1,450 psi (100 bar) |
|
Valve Size |
D05 / NG10 |
|
Mounting Type |
Manifold / Subplate |
|
Body Material |
Gray Iron |
|
Seal Material |
Nitrile (NBR) |
|
Compatible Hydraulic Fluid |
Petroleum-Based Hydraulic Oil |
|
Operating Temperature Range |
70°F to 120°F (21°C to 49°C), per supplied specifications |
|
Flow Direction |
Four-Way |
|
Electrical Connection |
None |
|
Manual Control Component |
Lever with Knob |
|
Primary Applications |
Hydraulic Cylinders, Industrial Machinery, Hydraulic Power Units, Manufacturing Equipment |
|
Weight |
7.00 lb |
Information About DG17V4-012C-10
The DG17V4-012C-10 is part of the Eaton Vickers DG17V4-01 Series of manually actuated hydraulic directional control valves, featuring a D05 mounting interface and a durable gray iron body. Its four-way directional design uses a hand-operated lever to shift the internal spool, allowing operators to control hydraulic fluid routing without electrical actuation. The spring-centered spool automatically returns to its neutral position when the lever is released, while the closed-center configuration blocks all main hydraulic ports in the neutral position. Designed for petroleum-based hydraulic oils, the valve incorporates nitrile seals and supports manifold or subplate mounting in compatible industrial hydraulic circuits.
Key Features:
-
Manual Lever Actuation: Provides direct mechanical control of hydraulic fluid direction without requiring electrical power.
-
Four-Way Directional Control: Routes hydraulic fluid between pressure, tank, and actuator ports for bidirectional operation.
-
Three-Position Operation: Allows directional switching between two operating positions and a neutral center position.
-
Closed-Center Spool: Blocks all main hydraulic ports when the valve is in its centered position.
-
Spring-Centered Mechanism: Automatically returns the spool to neutral when manual lever force is released.
-
High-Pressure Capability: Supports maximum operating pressures up to 4,500 psi (310 bar).
-
Hydraulic Flow Capacity: Handles flow rates up to 30 GPM (approximately 114 L/min).
-
D05 Mounting Interface: Designed for installation on compatible D05 manifold and subplate mounting surfaces.
-
Gray Iron Construction: Features a durable valve body suitable for industrial hydraulic operating conditions.
-
Nitrile Sealing: Uses nitrile seals compatible with specified petroleum-based hydraulic fluids.
-
Tank Port Pressure Rating: Supports a maximum T-port pressure of 1,450 psi (100 bar).
-
Serviceable Components: Supports replacement of internal spool, springs, seals, lever components, and other specified service parts.
The DG17V4-012C-10 delivers the reliability and precision required for manual hydraulic directional control, actuator positioning, and industrial fluid power applications.
