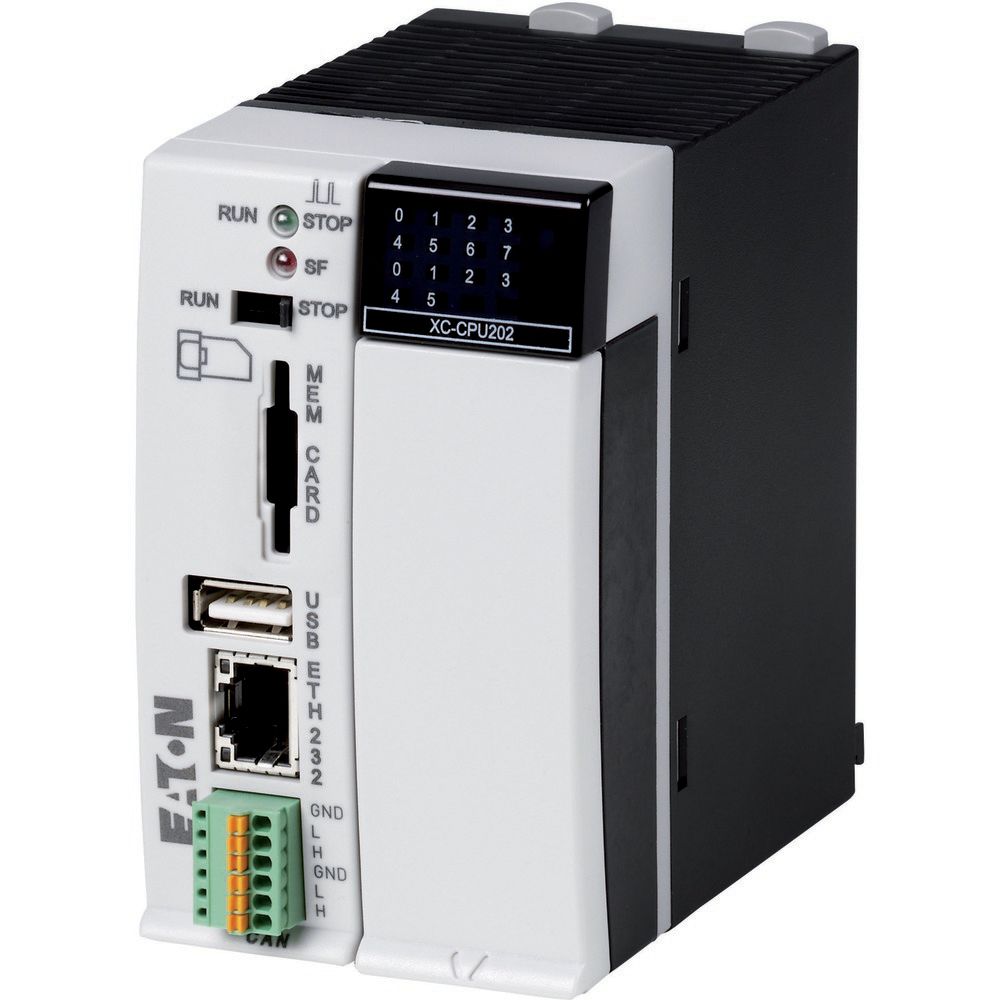

Eaton XC-CPU202-EC4M-8DI-6DO-XV XC200 Modular PLC 24VDC with 8 Inputs, 6 Outputs and Ethernet

Description

The Eaton XC-CPU202-EC4M-8DI-6DO-XV is a modular programmable logic controller (PLC) designed for industrial machine automation, process control, and distributed I/O applications. Eaton part number XC-CPU202-EC4M-8DI-6DO-XV combines an ARM 532 MHz processor, eight digital inputs, six transistor outputs, 4 MB of program memory, and integrated Ethernet, RS232, CANopen, and web server functionality.

Technical Specifications

Information About XC-CPU202-EC4M-8DI-6DO-XV

The XC-CPU202-EC4M-8DI-6DO-XV is part of Eaton's XC200 Series of modular programmable logic controllers, developed for industrial applications requiring high-speed processing and expandable control architecture. Its compact housing integrates a 532 MHz ARM processor, onboard digital I/O, a real-time clock, and multiple communication interfaces for connecting automation equipment and industrial networks. The controller supports expansion through compatible XI/OC modules, with a system capacity of up to 126 modules, and provides communication capabilities including CANopen, Modbus, PROFIBUS, SUCONET, Ethernet/IP, and TCP/IP through supported interfaces and configurations. Operating from a 24 VDC supply, the PLC includes an integrated web server, watchdog monitoring, configurable communication functions, and memory resources for industrial control programs.

Key Features:

• ARM 532 MHz Processor: Provides high-speed processing for industrial control programs, logic execution, and communication tasks.

• Integrated Digital I/O: Includes eight digital inputs and six transistor outputs for direct connection to field devices.

• 4 MB Program Memory: Provides onboard memory capacity for storing PLC application code.

• Ethernet Communication: Integrated 10/100 Mbps Ethernet interface supports industrial networking and TCP/IP communication.

• CANopen Interface: Supports CANopen communication with asynchronous, cyclic, and acyclic process data objects.

• RS232 Connectivity: Built-in serial interface supports compatible industrial communication equipment.

• Integrated Web Server: Enables supported browser-based access to controller information and diagnostic functions.

• Modular Expansion: Supports compatible XI/OC expansion modules, with a maximum system capacity of 126 modules.

• Multiple Industrial Protocols: Supports communication technologies including CANopen, Modbus, PROFIBUS, SUCONET, and Ethernet/IP through appropriate configurations.

• Real-Time Clock: Provides timekeeping functionality for scheduled operations and time-dependent control applications.

• Watchdog Monitoring: Supervises controller operation to detect abnormal program execution conditions.

• Industrial Power Protection: Includes power supply filtering, overvoltage protection, and short-circuit protection for suitable industrial installations.

The XC-CPU202-EC4M-8DI-6DO-XV delivers the reliability and precision required for industrial machine automation, modular PLC control, and networked process monitoring.
