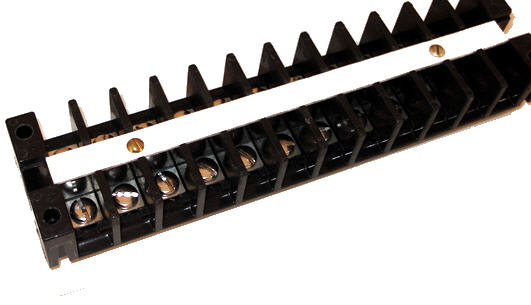

EB25B12 | General Electric 12-pole double-row 600V 30A surface-mount terminal block
- Regular price
- $75.00
- Sale price
- $75.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EB25B12
Description
The General Electric EB25B12 terminal block is a double-row, 12-pole connection device designed for secure and organized power distribution. With a 30A, 600V rating, this block accommodates up to 10 AWG conductors for reliable termination in industrial panels. The EB25B12 offers a surface-mount layout and screw-type terminals suited for robust electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Terminal Block |
| Part Number | EB25B12 |
| Subcategory | Terminal Block |
| Number of Rows | Double Row |
| Poles | 12 Poles |
| Voltage Rating | 600 V |
| Current Rating | 30 A |
| Terminal Capacity | Up to 10 AWG |
| Terminal Type | Screw |
| Center Spacing | 0.63 in (16 mm) |
| Mounting Style | Surface Mount |
| Connection Type | Washer-Head Screw Connection |
| Series | EB-25 |
| Length | 8.25 in (209.6 mm) |
| Wire Range Supported | 18 to 10 AWG |
| Body Style | Double-row block |
Information About EB25B12
The EB25B12 is part of GE’s EB-25 terminal block series, built for dependable circuit termination in industrial and commercial systems. Its double-row construction and screw-type terminals provide a durable, stable wiring interface that withstands demanding environments. Designed for compatibility with 18–10 AWG conductors, it integrates easily into control panels, distribution assemblies, and equipment wiring layouts. This terminal block supports organized multi-circuit connections using a compact form factor and standardized mounting style.
Key Features:
- Double-row configuration: Supports organized multi-circuit wiring in compact spaces.
- 12-pole design: Accommodates multiple conductors for flexible distribution.
- High voltage and current rating: Handles up to 600V and 30A for industrial applications.
- Screw terminal connection: Ensures secure, vibration-resistant conductor fastening.
- Surface-mount base: Provides straightforward installation on panel surfaces.
- 0.63 in center spacing: Supports efficient conductor arrangement and wire routing.
- Washer-head screws: Improves wire retention and electrical contact stability.
- Durable construction: Designed to withstand mechanical and environmental stress.
The EB25B12 delivers the reliability and precision required for secure industrial power distribution.
