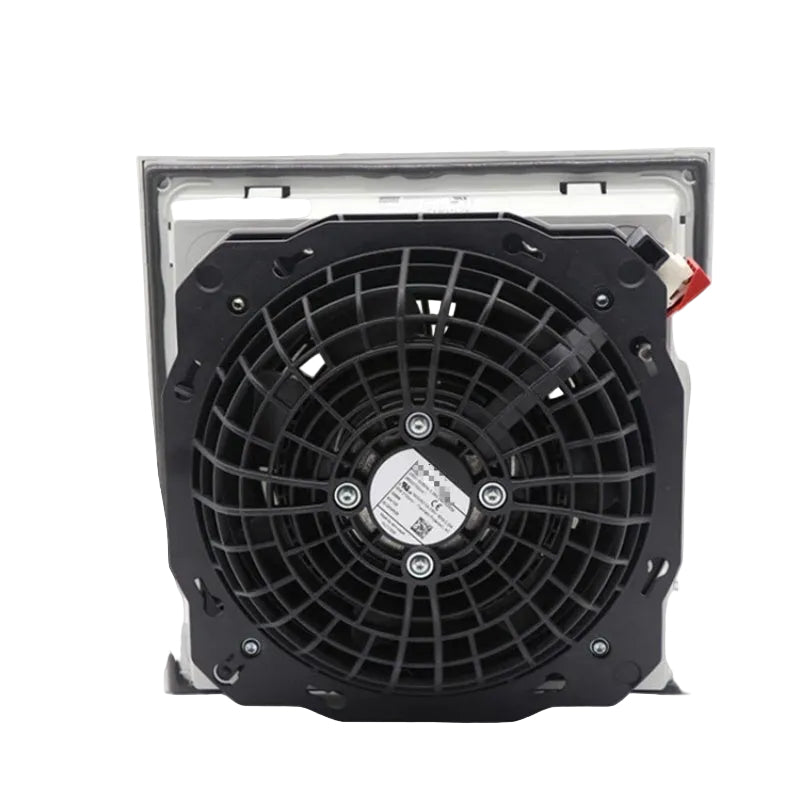

Ebm-papst K2S165-AA17-05 165mm AC Axial Cooling Fan
- Regular price
- $482.00
- Sale price
- $482.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: K2S165-AA17-05
Description
The Ebm-papst K2S165-AA17-05 is a 165 mm AC axial cooling fan designed for ventilation and heat dissipation in control cabinets, HVAC systems, and industrial equipment. It operates at 230 VAC and 50/60 Hz, with a power consumption of 40–45 W and a speed of 2650/2700 rpm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Ebm-papst |
| Category | HVAC |
| Part Number | K2S165-AA17-05 |
| Subcategory | Fan/Ventilation |
| Product Type | AC Axial Cooling Fan |
| Motor | M2S052-CA |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power | 40–45 W |
| Current | 0.24 / 0.26 A |
| Speed | 2650 / 2700 rpm |
| Blade Diameter | 165 mm |
| Motor Bearing | Ball Bearing |
| Insulation Class | F |
| Protection Rating | IP20 |
| Ambient Temperature | -30 to +55 °C |
| Approval / Standard | CE |
| Weight | 1.3 kg |
Information About K2S165-AA17-05
The K2S165-AA17-05 uses a ball-bearing motor with a PA plastic impeller and PP plastic housing for continuous air circulation. Its seven-blade impeller has a 165 mm blade diameter and is driven by the M2S052-CA motor. The fan operates within an ambient temperature range of -30 to +55 °C and has an IP20 degree of protection. Its compact axial configuration is suitable for panel, cabinet, and equipment cooling applications where space-efficient ventilation is required.
Key Features:
- AC Axial Fan: Provides forced air circulation for industrial equipment, control cabinets, and ventilation systems.
- 230 VAC Operation: Designed for a nominal supply voltage of 230 VAC at 50/60 Hz.
- 165 mm Impeller: Features a 165 mm blade diameter for effective air movement in compact cooling installations.
- High-Speed Operation: Runs at 2650/2700 rpm for consistent ventilation performance.
- Ball Bearing Motor: Uses ball bearings for reliable mechanical operation during continuous fan use.
- Seven-Blade Impeller: Features a seven-blade PA plastic impeller designed for efficient air circulation.
- Wide Ambient Range: Supports operation from -30 to +55 °C for varied industrial environments.
- Compact Construction: Uses a PP plastic housing and space-saving axial design for equipment and cabinet integration.
The K2S165-AA17-05 delivers reliable airflow and thermal management required for industrial ventilation, control cabinet, and equipment cooling applications.
