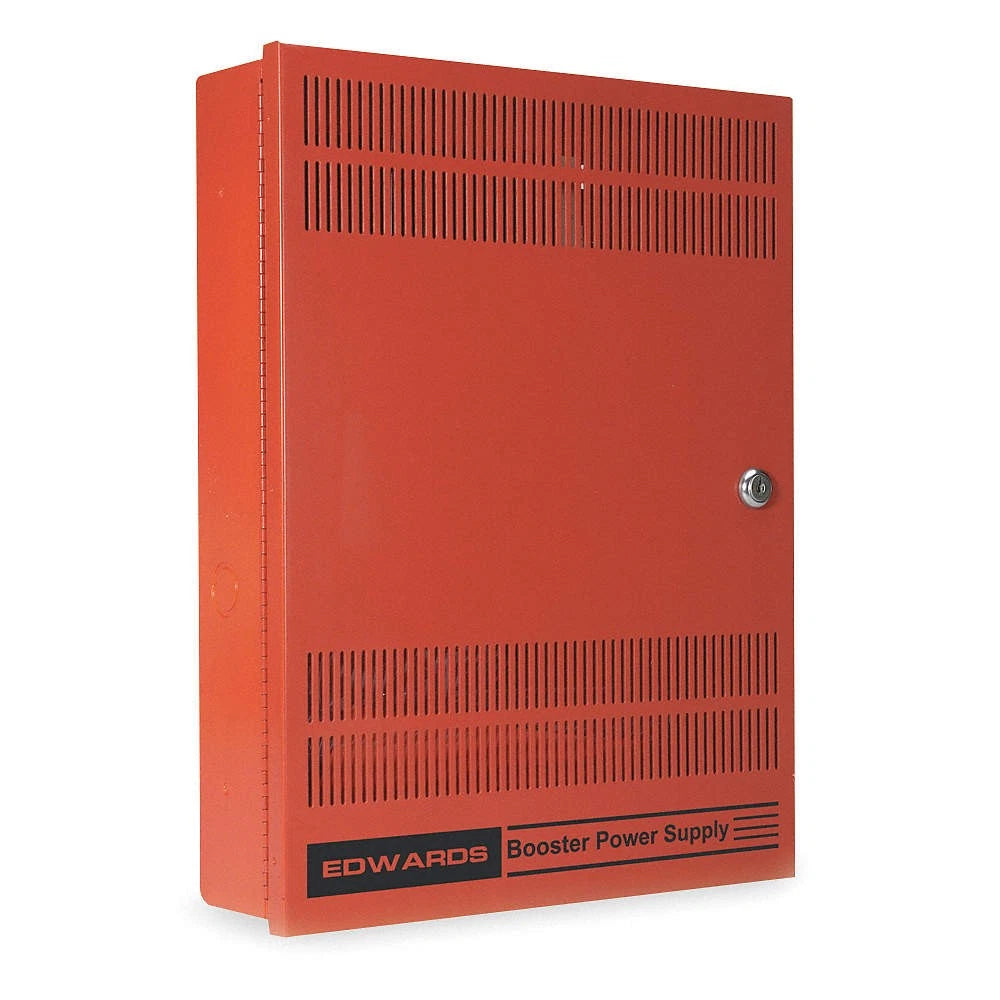

EBPS10A | Edwards 10A Booster Power Supply, 24VDC NAC Expansion, Class A/B
- Regular price
- $952.00
- Sale price
- $952.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: EBPS10A
Description
The Edwards EBPS10A is a 10-amp booster power supply that provides regulated 24 VDC output for fire alarm, mass notification, and security systems. It features four Class B (or two Class A) supervised NAC outputs, each rated at 3.0 A, with a total capacity of 10 A. Housed in a keyed, lockable red steel cabinet, the EBPS10A integrates battery charging and supervision for reliable standby operation
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Power Supplies |
| Part Number | EBPS10A |
| Subcategory | Power Supply |
| AC Input Voltage | 120 VAC, 50/60 Hz, 375 W |
| Output Voltage | 24 VDC nominal |
| Total Output Current | 10 A maximum |
| NAC Outputs | 4 Class B (or 2 Class A), 3.0 A max each |
| NAC Wiring Styles | Class A or Class B |
| Auxiliary Output | Dedicated 200 mA output |
| Trouble Relay | 2 A @ 30 VDC |
| Input Current (from NAC) | 6 mA @ 24 VDC |
| Output Signal Rates | Continuous, 3-3-3 temporal, or per panel NAC |
| Wire Size | 18–12 AWG |
| Max. Internal Battery | 10 Ah (two 12V batteries) |
| Max. External Battery | Up to 65 Ah (access-control only applications) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 0–93% non-condensing |
| Enclosure | Red steel cabinet, keyed lock |
| Agency Listings | UL 864 9th Edition, ULC |
| Weight | 15.00 lbs |
Information About EBPS10A
The EBPS10A is part of Edwards’ Booster Power Supply Series, designed to expand notification appliance circuits (NACs) and auxiliary power in life safety and emergency communication systems. This UL 864 9th Edition listed unit can be cascaded or operated independently, making it suitable for large-scale installations. It includes onboard diagnostics with LED indicators for wiring and internal faults, as well as self-restoring overcurrent protection for dependable performance. The enclosure accommodates two 10Ah batteries internally, while larger capacities up to 65Ah are supported in external enclosures for access-control-only applications.
Key Features:
- High-Capacity Output: Provides 10 A total current across four Class B or two Class A NACs.
- Per-Circuit Rating: Delivers up to 3.0 A per NAC output at 24 VDC nominal.
- Filtered & Regulated Power: Ensures stable 24 VDC output for life safety and auxiliary devices.
- Battery Charging: Charges and supervises internal or external batteries up to 65 Ah (external enclosure required).
- Diagnostic LEDs: Onboard indicators for fault detection and troubleshooting.
- Overcurrent Protection: Self-restoring circuitry safeguards connected devices.
- Synchronization Support: Compatible with Genesis and Enhanced Integrity appliance synchronization.
- Flexible Operation: NACs can be cascaded or controlled independently for system expansion.
- Dual Input Circuits: Allows grouping of NAC outputs into one or two activation zones.
- Durable Enclosure: Lockable red steel cabinet with space for two 10Ah batteries.
- Field Configurable: Simple jumper and wiring options for Class A/B NAC setup.
The EBPS10A delivers the reliability and performance required for expanding NAC and auxiliary power in Edwards fire alarm and emergency communication systems.
