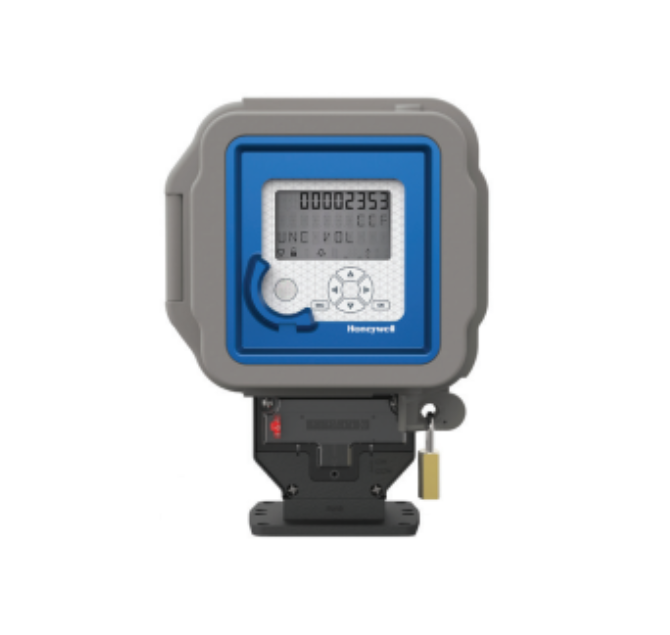

EC350 | Honeywell Volume Converter
- Regular price
- $3,699.00
- Sale price
- $3,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EC350
Description
The Honeywell EC350 is a flexible PTZ (Pressure, Temperature, Compressibility) gas volume corrector designed for custody transfer and industrial gas metering. It combines precision measurement with advanced diagnostics, extended battery life, and integrated communication features for enhanced reliability and reduced maintenance.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Gas Measurement
|
| Part Number | EC350 |
| Subcategory | Volume Correction Devices |
| Mounting Options | UMB, rotary, wall-mounted |
| Pressure Inputs | 1 or 2 (plug-and-play digital transducers) |
| Volume Correction Standards | AGA-7, AGA-8 (Gross 1 & 2, Detailed), NX-19 |
| Display |
Multi-line LCD with dynamic contrast |
| Communication Ports | RS232/485, IrDA, cellular modem (optional) |
| Power Supply | 10-year lithium battery, alkaline (5–7 years), or DC input |
| Accuracy | ±0.1% (temperature), ±0.1% full scale (pressure) |
| Ambient Temperature Range | –40°C to +77°C (–40°F to +170°F) |
| Humidity Tolerance | 0–95% RH, non-condensing |
| Certifications | CSA C/US Class I Div 1 & 2, IEC-Ex Ex ia IIB T4 |
| Weight | 5 lbs |
Information About EC350
The EC350 is the latest generation of electronic volume correctors from Honeywell, building on over 40 years of experience from legacy Mini-Max® and Mini-AT models. The device accurately converts gas volume at operating conditions to reference conditions using integrated pressure and temperature sensors and supports AGA and NX-19 calculation standards. The EC350 is available in meter-, rotary-, or wall-mount configurations and supports up to two pressure inputs with a plug-and-play digital transducer. Featuring a multi-line LCD, internal lithium battery (up to 10 years), optional cellular modem, RS232/485 ports, and support for AMR and Invisiconnect IP calling, it is ideal for utilities looking to reduce ownership costs and simplify field servicing.
Key Features:

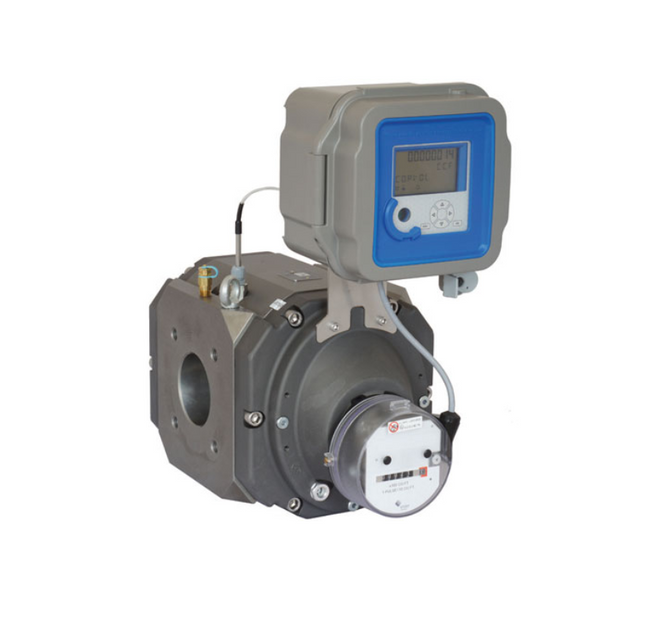

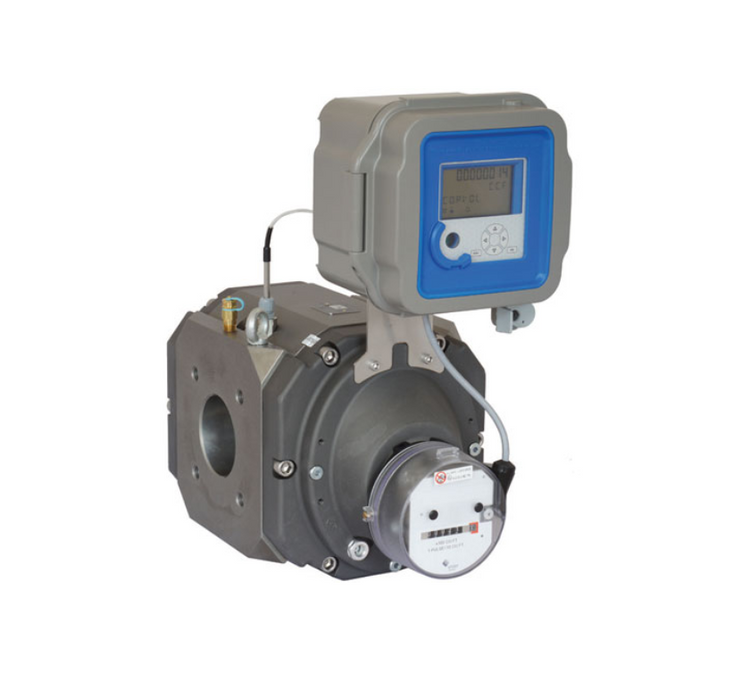

- Flexible Mounting Options: Available in UMB-, rotary-, and wall-mount configurations for a range of meter installations.
- Accurate Volume Correction: Uses AGA-7, AGA-8 (gross methods 1 & 2, detailed), and NX-19 for precise correction.
- Advanced Digital Pressure Transducer: Plug-and-play design for ease of service and reduced calibration time.
- 10-Year Battery Life: Lithium-powered system minimizes site visits and maintenance costs.
- Integrated Communications: Internal cellular modem, RS232/485, and IrDA configuration ports for flexible integration.
- Audit Trail and Diagnostics: Offers up to five independent logs and detailed status alerts to support compliance and preventive maintenance.
- Wide Operating Range: Works from –40°C to +77°C, with ±0.1% accuracy on pressure and temperature readings.
- AMR and SCADA Ready: Compatible with Itron, Sensus, Aclara, and other remote reading platforms.
- Field Serviceable Design: Enclosure and electronics optimized for in-field maintenance and part replacement.
- Certified for Safety and Performance: Meets CSA Class I Div 1 & 2, and IEC-Ex explosion-proof standards.
The EC350 simplifies gas volume correction and remote monitoring, reducing operating costs while enhancing data reliability for billing and regulatory compliance.
