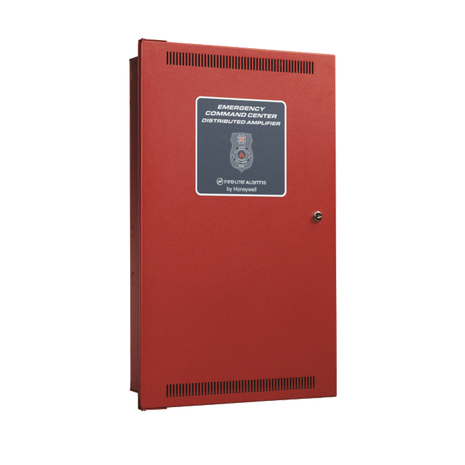

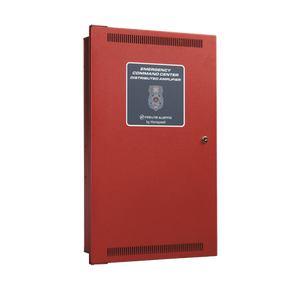

ECC-125DA | Fire-Lite 125W Distributed Audio Amplifier with 4 Expandable Circuits
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ECC-125DA
Description
The Fire-Lite ECC-125DA is a 125-watt distributed audio amplifier designed for use with the ECC-50/100(E) emergency voice evacuation system. This amplifier provides reliable audio power expansion to meet the needs of larger installations requiring clear and intelligible emergency communications. It operates on 120 VAC and is well-suited for applications such as schools, auditoriums, theaters, and industrial facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms by Honeywell |
| Category | Fire Safety |
| Part Number | ECC-125DA |
| Subcategory | Audio Amplifier |
| Series | ECC Series |
| Power Output | 125W @ 25 Vrms |
| Operating Voltage | 120 VAC, 60 Hz |
| Input Current | 2200 mA max |
| Wiring Support | Class A (Style Z) and Class B (Style Y) |
| Onboard Circuits | Four supervised audio circuits |
| Expandable Circuits | Up to eight with ECC-CE4 module |
| System Capacity | Supports up to 8 amplifiers per system (1100W total) |
| Configuration | Web-based utility via ECC-50/100(E) |
| Cabinet Dimensions | 16" W × 26.25" H × 4.125" D (40.64 × 66.68 × 10.48 cm) |
| Battery Support | Built-in charger supports up to 35AH |
| Standards Compliance | UL 2572, UL 864 |
| Weight | 25.8 lbs (11.7 kg) |
Information About ECC-125DA
The ECC-125DA is a distributed audio amplifier from Fire-Lite’s ECC Series, engineered to expand system capacity for emergency voice and mass notification systems. The unit supports both Class A (Style Z) and Class B (Style Y) speaker circuit wiring and comes standard with four fully supervised circuits, expandable to eight with an ECC-CE4 module. It integrates seamlessly with ECC-50/100(E) primary consoles through a simple web-based programming utility, simplifying setup and configuration. With its built-in power supply, battery charger, and sturdy cabinet construction, the ECC-125DA ensures dependable operation in demanding environments.
Key Features
- 125-Watt Output: Provides 125W of supervised audio power for emergency communication systems.
- Multiple Wiring Options: Supports both Class A (Style Z) and Class B (Style Y) speaker circuit configurations.
- Four Onboard Circuits: Includes four supervised audio circuits, expandable to eight with an ECC-CE4 module.
- System Scalability: Supports up to eight ECC-50DA(E) or ECC-125DA(E) units per system for a total of 1100W.
- Web-Based Configuration: Setup and programming performed via ECC-50/100(E) using a built-in web interface.
- Integrated Power Supply: Comes with a built-in power supply and charger supporting batteries up to 35AH.
- Sturdy Enclosure: Scratch-resistant cabinet designed for reliable long-term installation.
- UL-Listed: Complies with UL 2572 and UL 864 standards for mass notification and emergency voice evacuation.
The ECC-125DA delivers the reliability and power required for large-scale emergency voice communication systems.
