ECC-50DA | Fire-Lite 50W Distributed Audio Amplifier with 25V/70V Output
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ECC-50DA
Description

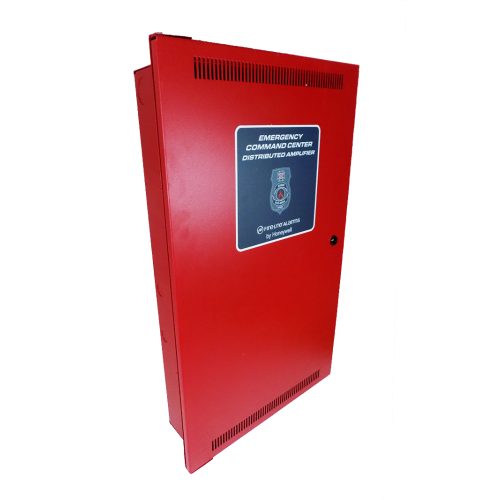

The Fire-Lite ECC-50DA is a 50-watt distributed audio amplifier designed for use with the ECC-50/100 Emergency Command Center. It provides four supervised speaker circuits, expandable to eight with an optional module, and supports both 25 Vrms and 70.7 Vrms operation. Built with a power supply and battery charger, the ECC-50DA ensures reliable voice evacuation and mass notification in medium to large installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Safety |
| Part Number | ECC-50DA |
| Subcategory | Audio Amplifier |
| Audio Power Output | 50 W at 25 Vrms or 70.7 Vrms |
| Speaker Circuits | 4 Class B or Class A, expandable to 8 with ECC-CE4 |
| System Capacity | Up to 8 amplifiers (400 W, 32 speaker circuits) |
| Input Power | 120 VAC, 60 Hz, 1.2 A |
| Wiring | Class A (Style Z) or Class B (Style Y) |
| Battery Support | Two 18 Ah internal; up to 35 Ah external with BB-26/BB-55F |
| Battery Charger | Integral charger, supports 7–35 Ah sealed lead-acid |
| Communication | Connects via riser buses to ECC-50/100 |
| Standards Compliance | UL 2572, UL 864 |
| Cabinet Finish | Sturdy, scratch-resistant |
| Installation | Surface mount enclosure |
| Dimensions | 16" W × 26.25" H × 4.125" D (40.64 × 66.68 × 10.48 cm) |
| Weight | 25.8 lbs (11.7 kg) |
Information About ECC-50DA
The ECC-50DA is part of Fire-Lite’s ECC distributed audio amplifier series, offering remote amplification for voice evacuation systems. Each unit delivers 50 watts of audio power and connects to the ECC-50/100 via riser buses for audio and data transfer. With Class A or Class B wiring options, the ECC-50DA provides flexibility for various installation environments. The cabinet accommodates up to two 18 Ah batteries internally, with support for up to 35 Ah when paired with an external battery box. Up to eight ECC-50DA units may be networked to provide a total of 400 watts of distributed audio power and up to 32 speaker circuits.
Key Features
- Audio Power Output: Provides 50 W of addressable audio at 25 Vrms or 70.7 Vrms.
- Speaker Circuits: Includes four supervised circuits, expandable to eight with ECC-CE4.
- Flexible Wiring: Supports Class A (Style Z) or Class B (Style Y) configurations.
- Scalable System Design: Connect up to eight ECC-50DA units for 400 W and 32 circuits.
- Integrated Power Supply: Built-in 120 VAC supply with battery charger supports up to 35 Ah.
- Battery Support: Cabinet fits two 18 Ah batteries; external boxes available for larger capacity.
- Web-Based Setup: Easy configuration through the ECC-50/100 interface.
- UL-Listed: Complies with UL 2572 and UL 864 standards for mass notification and fire evacuation.
The ECC-50DA delivers the reliability and precision required for distributed fire alarm audio amplification and emergency communication systems.
