ECC-50W-25V | Fire-Lite 25V 50W Audio Amplifier Module for ECC-50/100 Systems
- Regular price
- $794.00
- Sale price
- $794.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: ECC-50W-25V
Description

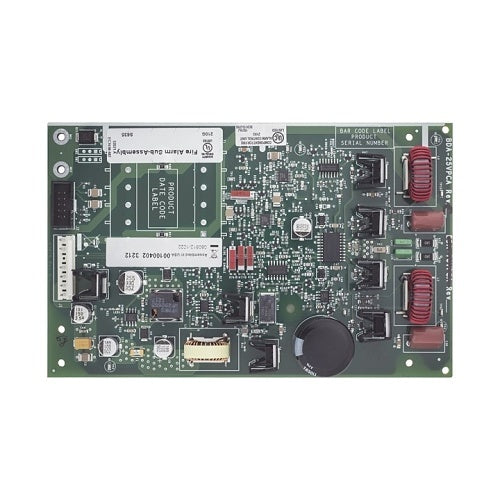

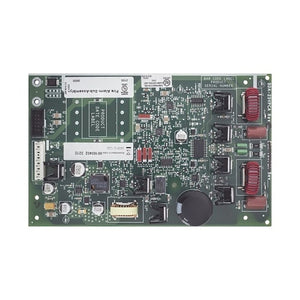

The Fire-Lite ECC-50W-25V is a 25V, 50-watt audio amplifier module designed for use with ECC-50/100 emergency voice evacuation systems. It can expand system capacity by adding a second speaker circuit or serve as a backup amplifier for reliable operation.
Technical Specifications
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Fire•Lite |
| Category | Fire Safety |
| Part Number | ECC-50W-25V |
| Subcategory | Audio Amplifier Module |
| Output Power | 50 watts |
| Output Voltage | 25 Vrms |
| Compatible Systems | ECC-50/100, ECC-50/100E Primary Operating Consoles |
| Function | System expansion or backup amplifier |
| Certification | UL 2572 Listed |
| Speaker Circuits | Adds one additional speaker circuit |
| Operating Mode | Supports Style Y (Class B) and Style Z (Class A) configurations |
| Use Case | Fire alarm voice evacuation and mass notification systems |
| Design Type | Modular plug-in amplifier module |
| Application | Commercial, institutional, and industrial emergency communication |
| Weight | 1.00 lb |
Information About ECC-50W-25V
The ECC-50W-25V is a secondary amplifier module built to integrate with Fire•Lite ECC-50/100 and ECC-50/100E Primary Operating Consoles. It provides an additional 50 watts of 25Vrms audio power to support expanded system requirements in emergency voice and mass notification applications. This module enables flexible speaker circuit configurations, either for redundancy or for increased coverage. Its modular design supports simple installation, while maintaining compatibility with UL-listed ECC system components.
Key Features:
- 50W Output Power: Supplies 50 watts of 25V audio for speaker circuit expansion.
- Backup Amplifier Capability: Functions as a redundant amplifier for enhanced system reliability.
- System Expansion: Increases ECC-50/100 total power output to 100 watts when combined.
- Flexible Speaker Circuits: Supports additional speaker circuit for broader coverage.
- UL 2572 Certified: Meets standards for mass notification and fire safety systems.
- Compact Integration: Designed to fit seamlessly within ECC-50/100(E) systems.
- Modular Design: Simplifies system upgrades and reduces installation complexity.
The ECC-50W-25V delivers the reliability and performance required for mission-critical fire and mass notification systems.
