Product Description P/N: ECC-CE6
Description

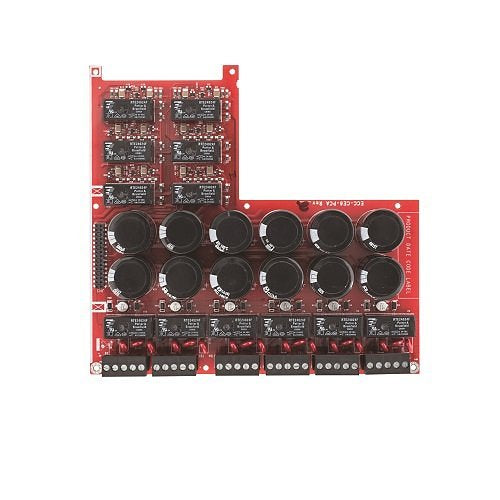

The Fire-Lite ECC-CE6 is a speaker circuit and zone expander module that adds six additional audio circuits to the ECC-50/100 Emergency Command Center. With support for both Class A (Style Z) and Class B (Style Y) wiring, it enhances flexibility in emergency voice and evacuation systems. This module is designed for easy installation directly onto the ECC-50/100 main control board.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms by Honeywell |
| Category | Fire Safety |
| Part Number | ECC-CE6 |
| Subcategory | Control Panel Module |
| Mounting | Directly onto ECC-50/100 main board |
| Audio Circuits | Six total: 3 primary and 3 secondary |
| Wiring Styles | Class A (Style Z) or Class B (Style Y) |
| Configuration | Web-based programming via ECC-50/100 utility |
| Compatibility | ECC-50/100(E), ECC-50W-25/70V, ECC-XRM-70V |
| Supervision | All circuits supervised and power-limited |
| Transformer Requirement | ECC-XRM-70V required for 70V systems |
| Secondary Circuits | Require ECC-50W-25/70V amplifier |
| Listings & Approvals | UL 2572, UL 864 |
| Manufacturer | Honeywell International |
| Unit of Measurement | Each (EA) |
| Production Status | Active |
| Weight | 1 lb |
Information About ECC-CE6
The ECC-CE6 is an expansion module that integrates with the Fire-Lite ECC-50/100(E) series, providing three primary and three secondary supervised speaker circuits. It mounts directly onto the ECC-50/100 control board and is configured through a web-based programming utility for simplified setup. For 70V systems, it must be installed with the ECC-XRM-70V transformer to maintain compatibility. Its modular design allows system designers to scale voice evacuation and mass notification solutions efficiently, while removable terminal blocks make servicing and replacement straightforward.
Key Features
- Expanded Capacity: Adds six supervised speaker circuits (three primary and three secondary) to the ECC-50/100.
- Flexible Wiring: Supports Class A (Style Z) and Class B (Style Y) speaker configurations.
- Web-Based Configuration: Circuits are programmed through the ECC-50/100 online utility for simple setup.
- Integrated Mounting: Attaches directly to the ECC-50/100 main board with provided standoffs and screws.
- 70V Compatibility: Works with the ECC-XRM-70V transformer for installations in 70V audio systems.
- Service-Friendly: Removable terminal blocks simplify wiring, servicing, and replacement.
- Supervised Operation: All speaker circuits are supervised and power-limited for code compliance.
- Secondary Circuit Use: Optional ECC-50W-25/70V amplifier required for activating secondary circuits.
The ECC-CE6 delivers the reliability and scalability required for expanding Fire-Lite voice evacuation and emergency communication systems.
