ECL-600 | Detex Fire-Rated Relatching Exit Control Lock with 100 dB Alarm
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: ECL-600
Description

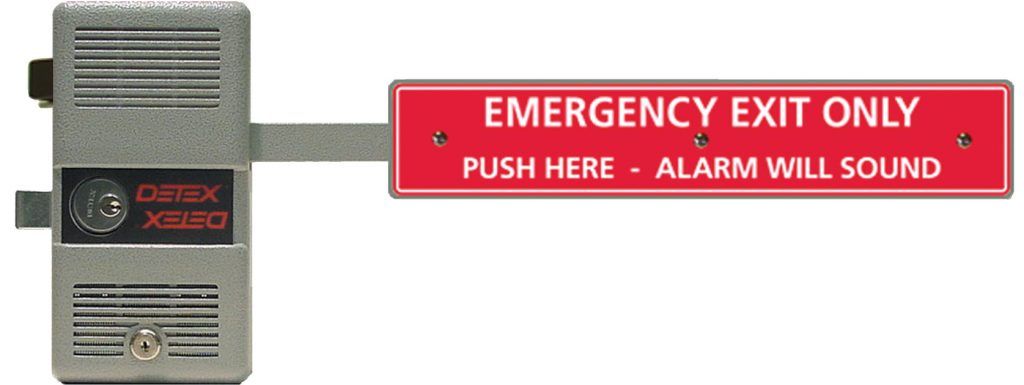

The Detex ECL-600 is a fire-rated, code-compliant relatching exit device designed for secondary exits that require both security and life safety compliance. Equipped with a durable steel plate, photo-luminescent sign, and a 100 dB alarm, the ECL-600 provides reliable protection while reducing theft and unauthorized exit. Built for rugged use, it ensures compliance with NFPA 80 and 101 and delivers dependable operation across a wide range of commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Detex |
| Category | Fire Safety |
| Part Number | ECL-600 |
| Subcategory | Fire Exit Hardware |
| Series | ECL Series |
| Device Type | Relatching fire-rated exit control lock |
| Alarm | 100 dB, 9-volt battery powered (included) |
| Deadbolt | 1″ saw-resistant throw |
| Latchbolt | 3/4″ deadlocking |
| Relatching Feature | Provides additional security after closing |
| Reset Method | Control key required to silence alarm and reset |
| Finish Options | Black, Gray |
| Construction | Corrosion-resistant alloy lock body; steel plate |
| Door Width Compatibility | 34″ min, 48″ max |
| Door Thickness | 1-3/4″ to 2-1/4″ |
| Door Applications | Hollow metal, wood, or aluminum |
| Handing | Non-handed |
| Cylinder | Accepts 1-1/8″ rim cylinder (sold separately) |
| Optional Trim | ECL-620 outside lever trim |
| Accessories | Bar guard, keyed mullion, adjustable strike kits |
| Compliance | NFPA 80 & 101, ADA, ANSI/BHMA, CA Title 19, CSFM |
| Warranty | 10-year mechanical / 3-year electrical limited |
| Weight | ~16 lbs (with hardware) |
Information About ECL-600
The ECL-600 is part of Detex’s ECL series of fire exit hardware, engineered for fire-rated hollow metal, wood, or aluminum doors ranging from 34″ to 48″ in width. This single-point locking device combines a 1″ saw-resistant deadbolt with a 3/4″ deadlocking latchbolt, providing superior resistance to forced entry while maintaining code compliance. The device features relatching capability for added security and a key-controlled alarm reset to prevent tampering. Non-handed for flexible installation, the ECL-600 is corrosion-resistant and ADA-compliant, with proven durability to withstand over 2200 lbs of pull force.
Key Features:
- Fire-Rated Compliance: UL, NFPA 80 & 101, CA Title 19, and California State Fire Marshal listed.
- Relatching Security: 1″ throw saw-resistant deadbolt and 3/4″ deadlocking latchbolt.
- Alarmed Exit: 100 dB alarm powered by 9V battery; reset only with control key.
- Heavy-Duty Construction: Attack-resistant steel plate withstands 2200 lbs of pull force.
- Photo-Luminescent Signage: Enhances visibility in low-light or power outage conditions.
- Flexible Installation: Fits 34″–48″ door widths, 1-3/4″ to 2-1/4″ thick, non-handed.
- ADA Compliant: Meets A117.1 Accessibility Code for universal usability.
- Expandable System: Compatible with ECL-620 lever trim and other accessories.
The ECL-600 delivers the reliability and precision required for secure, code-compliant secondary fire exits.
Description
The Detex ECL-600 is a fire-rated, code-compliant relatching exit device designed for secondary exits that require both security and life safety compliance. Equipped with a durable steel plate, photo-luminescent sign, and a 100 dB alarm, the ECL-600 provides reliable protection while reducing theft and unauthorized exit. Built for rugged use, it ensures compliance with NFPA 80 and 101 and delivers dependable operation across a wide range of commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Detex |
| Category | Fire Safety |
| Part Number | ECL-600 |
| Subcategory | Fire Exit Hardware |
| Series | ECL Series |
| Device Type | Relatching fire-rated exit control lock |
| Alarm | 100 dB, 9-volt battery powered (included) |
| Deadbolt | 1″ saw-resistant throw |
| Latchbolt | 3/4″ deadlocking |
| Relatching Feature | Provides additional security after closing |
| Reset Method | Control key required to silence alarm and reset |
| Finish Options | Black, Gray |
| Construction | Corrosion-resistant alloy lock body; steel plate |
| Door Width Compatibility | 34″ min, 48″ max |
| Door Thickness | 1-3/4″ to 2-1/4″ |
| Door Applications | Hollow metal, wood, or aluminum |
| Handing | Non-handed |
| Cylinder | Accepts 1-1/8″ rim cylinder (sold separately) |
| Optional Trim | ECL-620 outside lever trim |
| Accessories | Bar guard, keyed mullion, adjustable strike kits |
| Compliance | NFPA 80 & 101, ADA, ANSI/BHMA, CA Title 19, CSFM |
| Warranty | 10-year mechanical / 3-year electrical limited |
| Weight | ~16 lbs (with hardware) |
Information About ECL-600
The ECL-600 is part of Detex’s ECL series of fire exit hardware, engineered for fire-rated hollow metal, wood, or aluminum doors ranging from 34″ to 48″ in width. This single-point locking device combines a 1″ saw-resistant deadbolt with a 3/4″ deadlocking latchbolt, providing superior resistance to forced entry while maintaining code compliance. The device features relatching capability for added security and a key-controlled alarm reset to prevent tampering. Non-handed for flexible installation, the ECL-600 is corrosion-resistant and ADA-compliant, with proven durability to withstand over 2200 lbs of pull force.
Key Features:
- Fire-Rated Compliance: UL, NFPA 80 & 101, CA Title 19, and California State Fire Marshal listed.
- Relatching Security: 1″ throw saw-resistant deadbolt and 3/4″ deadlocking latchbolt.
- Alarmed Exit: 100 dB alarm powered by 9V battery; reset only with control key.
- Heavy-Duty Construction: Attack-resistant steel plate withstands 2200 lbs of pull force.
- Photo-Luminescent Signage: Enhances visibility in low-light or power outage conditions.
- Flexible Installation: Fits 34″–48″ door widths, 1-3/4″ to 2-1/4″ thick, non-handed.
- ADA Compliant: Meets A117.1 Accessibility Code for universal usability.
- Expandable System: Compatible with ECL-620 lever trim and other accessories.
The ECL-600 delivers the reliability and precision required for secure, code-compliant secondary fire exits.
