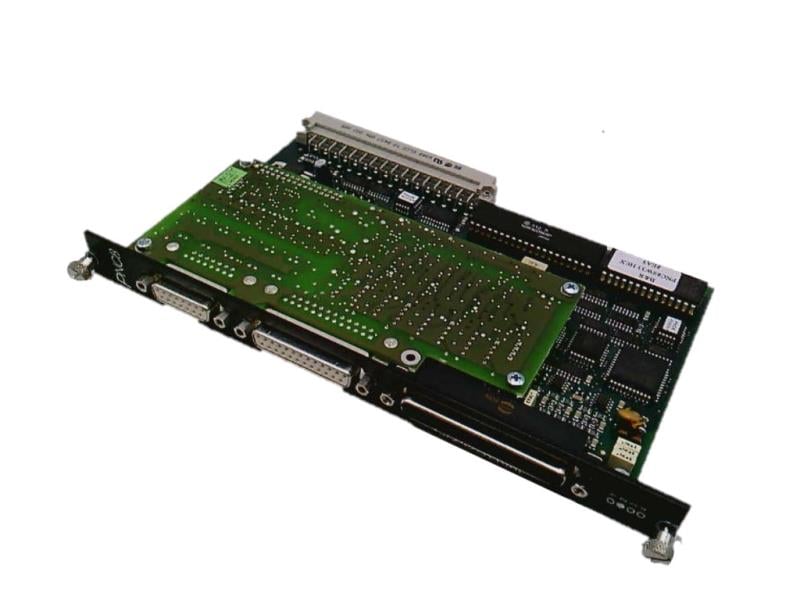

ECPNC8-23 | B&R Multi Positioning Module 4 Axes
- Regular price
- $4,399.00
- Sale price
- $4,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ECPNC8-23
Description
The B&R ECPNC8-23 Multi-Positioning Module is a 4-axis motion control module designed for precise positioning and automation applications. It supports incremental or absolute encoders with an input frequency of up to 100 kHz, ensuring high-resolution motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | B&R |
| Category | PLCs and Accessories |
| Part Number |
ECPNC8-23 |
| Subcategory | PLC Expansion Modules |
| Product Type | Multi-Positioning Module |
| Number of Axes | 4 |
| Input Frequency | 100 kHz (Incremental/Absolute) |
| Encoder Supply | 32-bit, 5-24V DC |
| Digital Inputs | 3 (24V DC, 10 msec sink) |
| Relay Output | 1 (24V DC, 1.5A) |
| Analog Output | 1 (+/-10V, 12-bit resolution) |
| Application | Multi-axis motion control, robotics, industrial automation |
| Weight | 0.32 kgs |
Information About ECPNC8-23
The ECPNC8-23 positioning module is a high-performance motion control solution suitable for multi-axis applications in automation and robotics. It provides accurate positioning for all four axes, utilizing a 100 kHz encoder input frequency for precise motion tracking. The three digital inputs (24V DC, 10 msec sink) and one relay output (24V DC, 1.5A) enhance its adaptability to various industrial control systems. Additionally, the +/-10V analog output (12-bit resolution) ensures smooth motion control and precise signal processing.
Key Features
- Supports four axes for multi-axis motion control applications.
- Compatible with incremental and absolute encoders, ensuring flexibility in positioning systems.
- 100 kHz input frequency for high-precision motion tracking.
- 32-bit encoder supply (5-24V DC) for reliable signal processing.
- Three digital inputs (24V DC, 10 msec sink) for real-time motion control.
- One relay output (24V DC, 1.5A) for interfacing with other automation components.
- One analog output (+/-10V, 12-bit resolution) for precise motion control signals.
The B&R ECPNC8-23 Multi-Positioning Module is a versatile and high-accuracy motion control unit, making it ideal for robotics, CNC machines, and industrial automation applications requiring precise multi-axis positioning.
