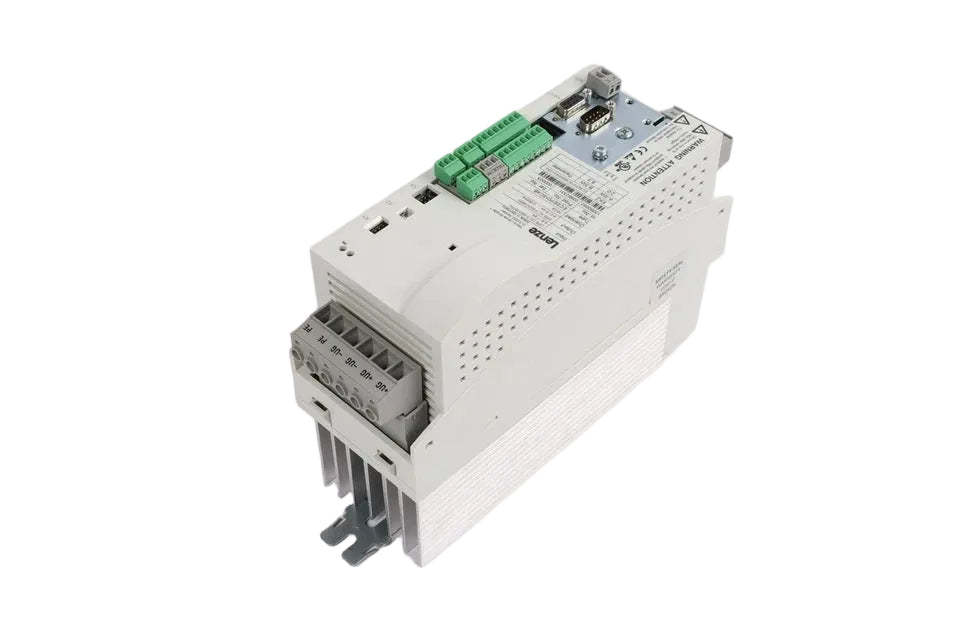

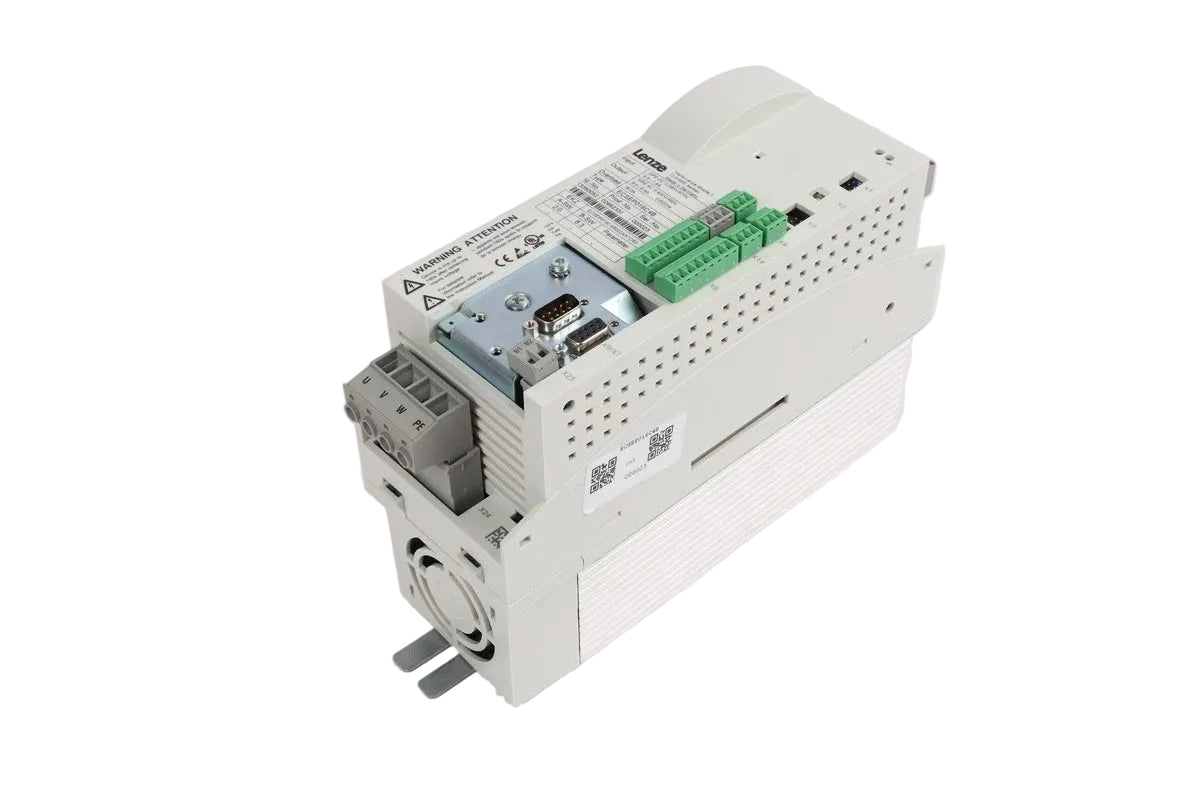

ECSEP016C4B | Lenze ECS Servo Drive Module 16A CAN
- Regular price
- $2,995.00
- Sale price
- $2,995.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECSEP016C4B
Description
The Lenze ECSEP016C4B is a servo drive module from the ECS Servo System designed for precise motion control in DC-powered drive architectures. It accepts DC input voltage up to 565/675 V and delivers controlled AC output up to 400/480 VAC with frequencies up to 600 Hz. With an overload capacity of 16.0 A and integrated positioning capability, this module supports high-performance servo applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Control |
| Part Number | ECSEP016C4B |
| Subcategory | Servo Drive Modules |
| Series | ECS Servo System |
| Input Voltage | 0–565 VDC (Max. 675 VDC) |
| Input Current | 9.8 / 7.8 A |
| Output Voltage | 0–400 / 480 VAC |
| Output Current | 8.0 / 6.4 A |
| Overload Current | 16.0 A |
| Output Frequency | 0–600 Hz |
| Protection Rating | IP20 |
| Communication | CAN |
| Control Capability | Positioning & Shaft Control |
| Mounting Type | Cabinet Installation |
| Weight | Approx. 4 kg |
Information About ECSEP016C4B
The ECSEP016C4B is part of Lenze’s ECS Servo System, developed as a modular servo drive solution for multi-axis and DC bus-based systems. It operates with a DC input range of 0–565 V (up to 675 V maximum) and provides three-phase AC motor output up to 400/480 VAC. Rated at 8.0/6.4 A output current with 16 A overload capability, the unit is designed for dynamic positioning and shaft control applications. The built-in IP20 housing is intended for cabinet installation and includes CAN-based communication for integration into distributed motion control networks.
Key Features:
- ECS Servo System Platform: Modular drive architecture for coordinated motion systems.
- DC Bus Input Operation: 0–565 VDC nominal (up to 675 VDC) input compatibility.
- 400/480 VAC Output: Delivers variable frequency output up to 600 Hz.
- 8.0/6.4 A Rated Output: Supports precision-controlled servo motor operation.
- 16 A Overload Capacity: Provides short-term current boost for dynamic load changes.
- Integrated Positioning & Shaft Control: Enables accurate motion and axis coordination.
- CAN Communication Interface: Supports networked servo system integration.
- IP20 Protection: Designed for installation inside industrial control cabinets.
The ECSEP016C4B delivers the reliability and precision required for modular servo drive systems in advanced industrial automation environments.
