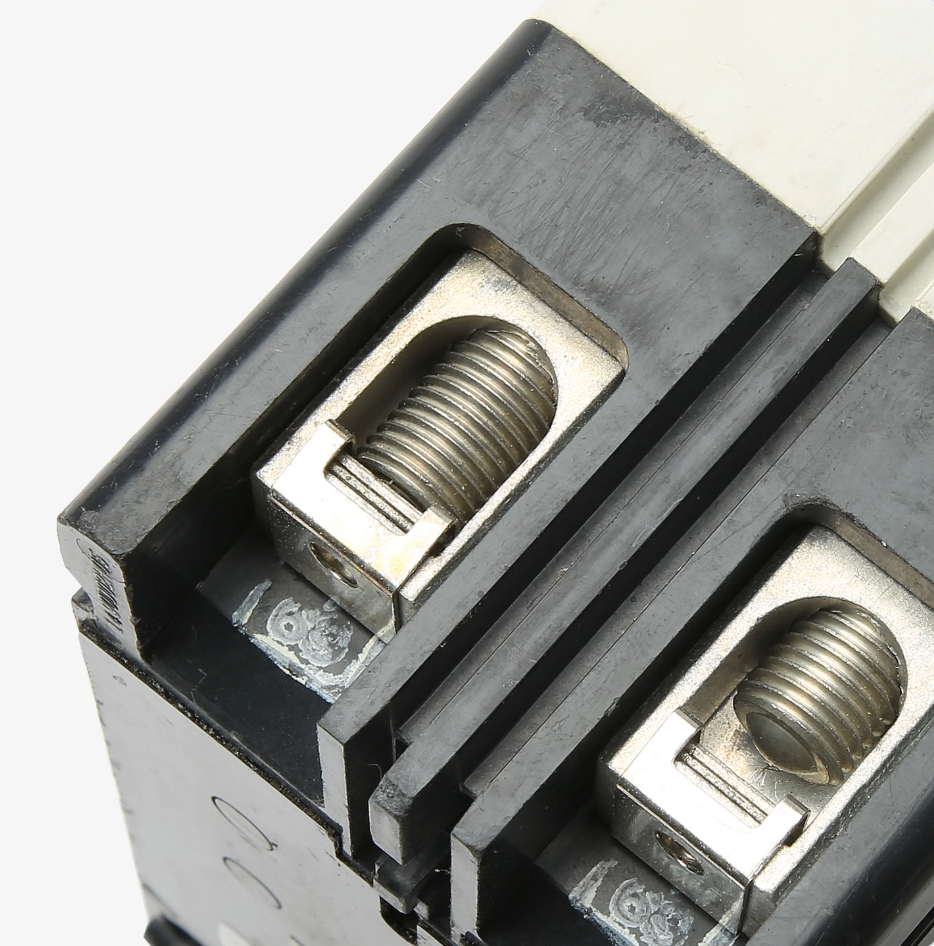

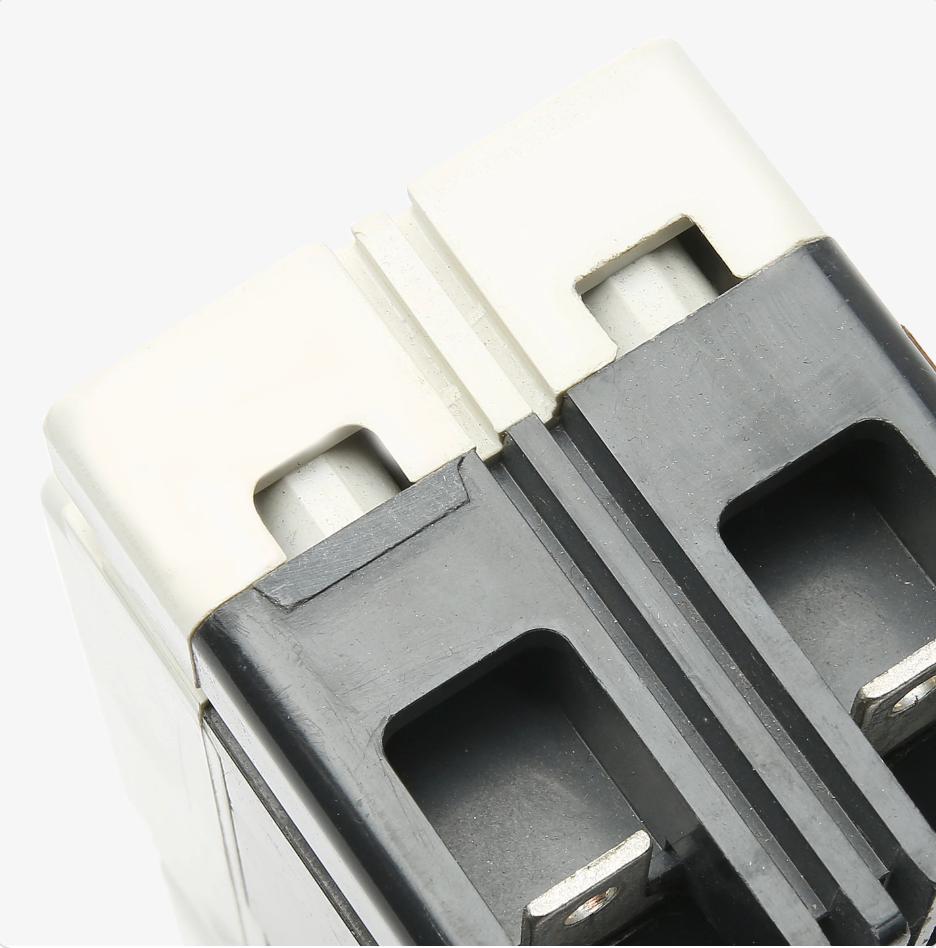

ED2200L | Eaton Cutler-Hammer 200A 2-Pole Molded Case Circuit Breaker, 65kA, Series C
- Regular price
- $558.00
- Sale price
- $558.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ED2200L
Description
The Eaton Cutler-Hammer ED2200L is a molded case circuit breaker engineered to provide dependable overcurrent protection in commercial and industrial electrical systems. This 2-pole, 200-amp breaker supports both AC and DC applications with a thermal magnetic trip unit for consistent fault response. Designed for bolt-on installation, the ED2200L ensures safe and efficient power distribution where high interrupt capacity is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Cutler-Hammer |
| Category | Circuit Breaker |
| Part Number | ED2200L |
| Subcategory | Molded Case Circuit Breaker |
| Series | Series C |
| Frame Size | F-Frame |
| Breaker Type | ED |
| Amperage Rating | 200 A |
| Voltage Rating | 240 VAC / 125 VDC |
| Number of Poles | 2 |
| Phase | Single Phase |
| Trip Unit | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Interrupt Rating | 65 kA @ 240 VAC |
| Mounting Type | Bolt-On |
| Connection Type | Feed-Thru |
| Certifications | UL Listed |
| Operating Temperature | Up to 40°C |
| Dimensions (H × W × D) | 6 in × 2.75 in × 3.38 in |
| Weight | 3 lb |
Information About ED2200L
The ED2200L is a Series C molded case circuit breaker built on Eaton’s F-Frame platform for robust electrical protection. It is constructed with a non-interchangeable thermal magnetic trip unit that delivers long-time and instantaneous protection for branch and feeder circuits. This breaker is compatible with Eaton and Cutler-Hammer load centers and panelboards that accept ED frame devices. Designed for environments up to 40°C, it is commonly used in industrial machinery, commercial buildings, and DC-rated power systems requiring high interrupt performance.
Key Features:
- 200 Amp Current Rating: Supports high-load circuits in demanding commercial and industrial installations
- 2-Pole Configuration: Provides simultaneous protection for dual conductors
- Thermal Magnetic Protection: Combines long-time and instantaneous trip functions for reliable fault response
- High Interrupt Rating: Rated at 65kA at 240VAC for superior short-circuit protection
- Bolt-On Mounting: Ensures secure installation with stable electrical connections
- AC/DC Voltage Capability: Rated for 240VAC and 125VDC applications
- F-Frame Construction: Delivers enhanced durability and mechanical strength
The ED2200L delivers the reliability and precision required for critical power distribution and circuit protection systems.
