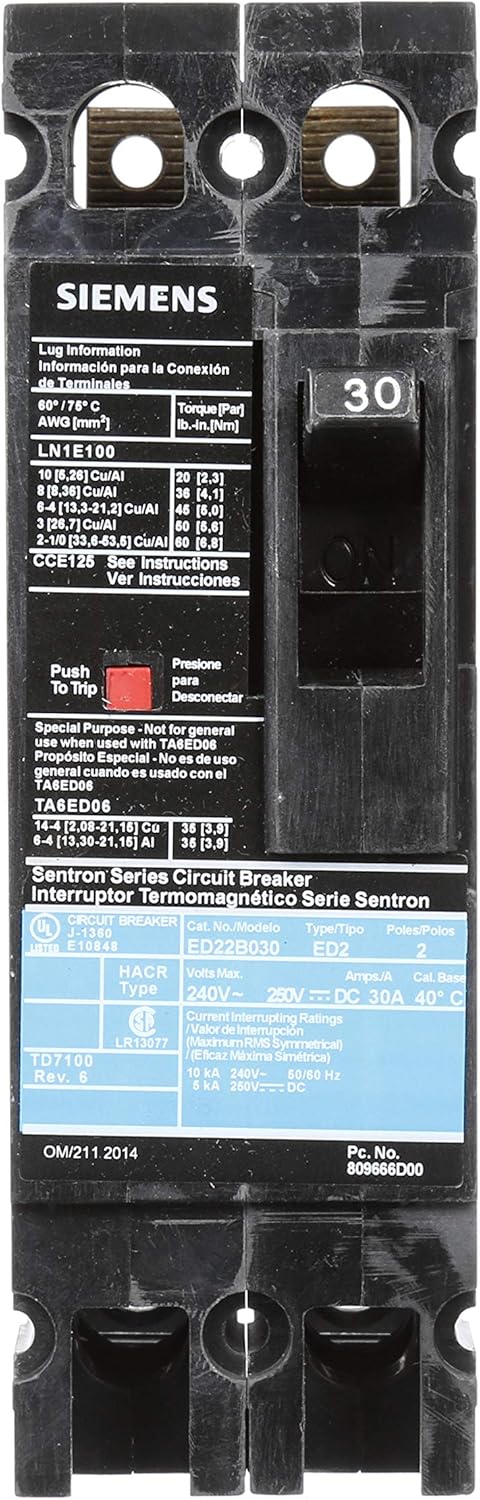

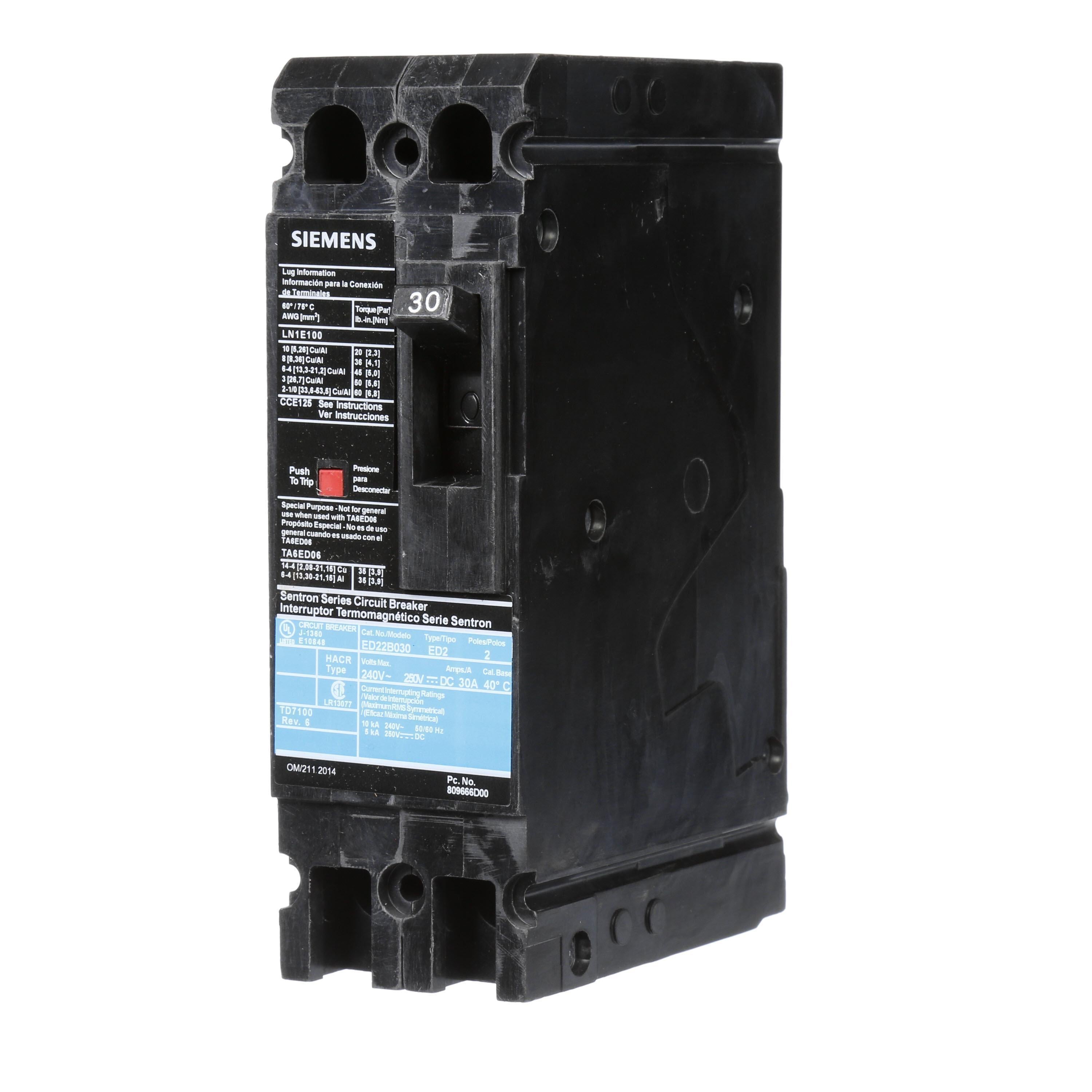

ED22B030 | Siemens 2-Pole 30A 240V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $349.00
- Sale price
- $349.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ED22B030
Description
The Siemens ED22B030 is a 2-pole thermal magnetic molded case circuit breaker designed for dependable protection in low-voltage electrical systems. Operating at 240 VAC with a 30-amp current rating, it offers efficient overload and short-circuit protection. Engineered for panel-mounted applications, the ED22B030 provides secure bolt-on connections for consistent performance in both commercial and industrial power distribution setups.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | ED22B030 |
| Subcategory | Circuit Breakers |
| Series | Sentron |
| Frame Type | ED |
| Type | Molded Case Circuit Breaker |
| Amperage Rating | 30 A |
| Voltage Rating | 240 VAC / 125–250 VDC |
| Poles | 2 |
| Phase | Single Phase (1PH) |
| Interrupting Capacity | 10 kA @ 240V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Terminal Connection | Load Side Lug |
| Wire Range | 10 to 1/0 AWG (Copper/Aluminum) |
| Mounting Style | Panel Mount |
| Temperature Rating | 40 °C |
| Dimensions (L×W×H) | Approx. 3 × 6 × 7 in |
| Weight | 1.36 kg |
Information About ED22B030
The ED22B030 is part of the Siemens Sentron Series, a trusted line of molded case circuit breakers designed for precision and safety. Built with a durable ED frame, this breaker features LI (Long-Time and Instantaneous) trip functions for comprehensive circuit protection. It is compatible with standard 1-phase systems and supports bolt-on mounting, ensuring a firm electrical connection in panelboard installations. Its 10kA interrupting capacity and thermal magnetic mechanism make it suitable for a wide range of load protection applications in building and facility electrical systems.
Key Features:
- Reliable Circuit Protection: Provides overload and short-circuit protection through a thermal magnetic mechanism.
- Two-Pole Configuration: Supports balanced power distribution across two circuits in single-phase systems.
- Bolt-On Mounting: Enables secure installation with quick and stable electrical connectivity.
- High Interrupting Rating: Rated for 10kA at 240 VAC, ensuring safe interruption of fault currents.
- Compact ED Frame: Designed for efficient space utilization in panelboards and switchgear assemblies.
- Thermal Magnetic Trip: Includes LI trip functions for long-time and instantaneous protection.
- Durable Construction: Engineered for consistent performance in demanding industrial or commercial environments.
- Siemens Sentron Quality: Complies with stringent safety and reliability standards.
The ED22B030 delivers the reliability and precision required for dependable electrical protection in professional power distribution systems.
