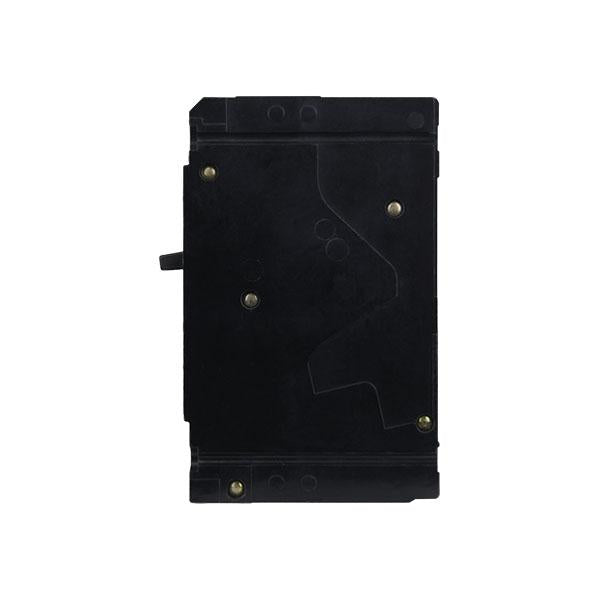

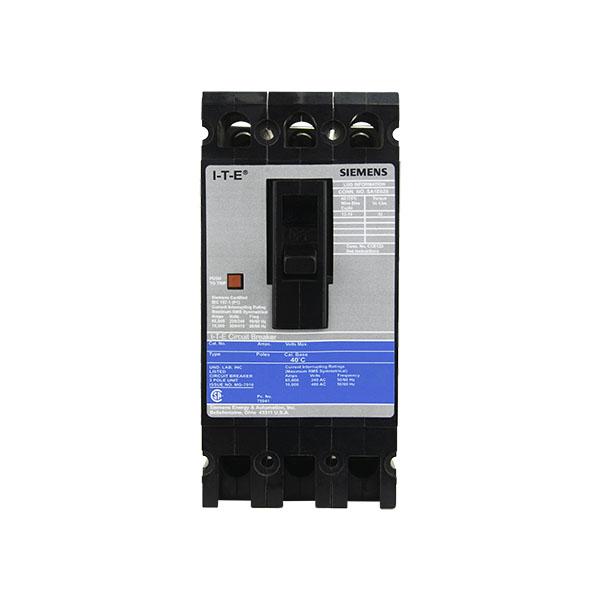

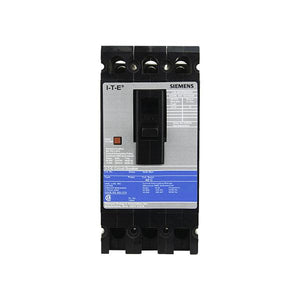

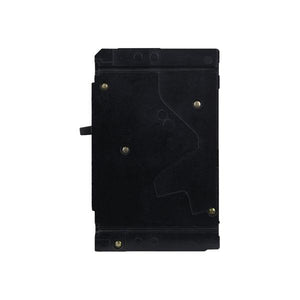

ED43B100 | Siemens 3 Pole Circuit Breaker
- Regular price
- $314.00
- Sale price
- $314.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: ED43B100
Description
The Siemens ED43B100 is a three-pole molded case circuit breaker from the Sentron Series. It features a type ED design with a current rating of 100A and operates within a voltage range of 480V. With a standard interrupting capacity of 18kA at 480V and a maximum operating temperature of 40 degrees Celsius, it is suitable for various industrial applications. This circuit breaker is equipped with both Long-Time and Instantaneous trip functions, ensuring comprehensive protection. It comes complete with line and load side lug terminals and utilizes thermal magnetic technology for reliable operation.
Technical Specifications
|
Brand |
Siemens |
|
ETIM |
EC000228 |
|
Type |
Type ED4 Low Voltage |
|
Voltage Rating |
480 VAC/250 VDC |
|
Amperage Rating |
100 A |
|
Frequency Rating |
50/60 Hz |
|
Interrupt Rating |
18 kA |
|
Frame |
ED |
|
Trip Type |
Thermal/Magnetic |
|
Number Of Poles |
3 |
|
Phase |
3 |
|
Connection Type |
Load Lug |
|
Wire Size |
10 to 1/0 AWG |
|
Mounting Type |
Panel |
|
Temperature Rating |
40 deg C |
|
Dimensions |
3.8 in L x 5.6 in W x 7.4 in H |
Information About ED43B100
The Siemens ED43B100 is a 3-pole circuit breaker belonging to the Sentron Series and falls under type ED. It is designed for three-phase systems with a current rating of 100A and a voltage rating of 480V. This circuit breaker has an interrupting capacity of 18kA at 480V, meeting standard interrupting capacity requirements. Operating within a temperature range of up to 40 degrees Celsius, it is suitable for various environmental conditions.
Equipped with thermal magnetic trip technology, the Siemens ED43B100 offers reliable protection against overloads and short circuits. It features a feed-thru design, allowing for convenient installation and connection. Additionally, this circuit breaker comes complete with Long-Time (LI) and Instantaneous trip functions, enhancing its versatility and performance.
The Siemens ED43B100 is outfitted with line and load side lug terminals, ensuring secure and efficient electrical connections. As a molded case circuit breaker, it provides robust protection for electrical systems and equipment. With its comprehensive set of features and specifications, the Siemens ED43B100 is suitable for a wide range of applications in industrial, commercial, and residential settings.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
