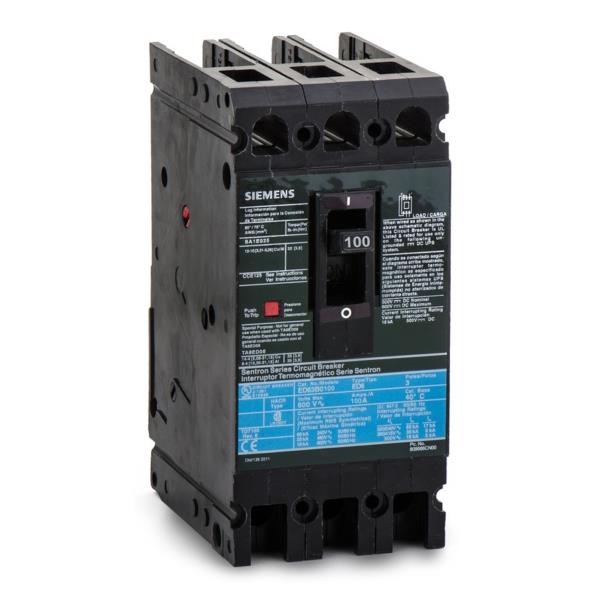

ED63B100 | Siemens Circuit Breaker CED6 3-Pole 100A
- Regular price
- $395.00
- Sale price
- $395.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ED63B100
Description
The ED63B100 is a 3-pole molded case circuit breaker from Siemens’ Sentron series, rated for 100 amps and up to 600V. It features a thermal-magnetic trip unit and load lugs only, offering dependable circuit protection in industrial and commercial systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Circuit Breaker
|
| Part Number | ED63B100 |
| Subcatecory |
Molded Case Circuit Breaker
|
| Series | Sentron |
| Poles | 3 Pole |
| Phases | 3 Phase |
| Rated Current | 100 A |
| Rated Voltage | 600V AC / 500V DC |
| Interrupt Rating | 18 kAIC at 600V, 25 kAIC at 480V |
| Certifications | UL 489, IEC 60947-2 |
| Terminations | Load Lugs Only (LN1E100) |
| Wire Range | 10 – 1/0 AWG (Copper/Aluminum) |
| Dimensions (D x W x H) | 3 x 6.35 x 3.92 in (76.2 x 161.3 x 99.6 mm) |
| Weight | 3.704 lb |
Information About ED63B100
The ED63B100 is a Type ED6 molded case circuit breaker (MCCB) from the Siemens Sentron low-voltage product line. Designed for durability and safety, it features a thermal-magnetic trip unit, which combines long-time and instantaneous protection in one compact unit. This circuit breaker supports 3-phase systems, is rated for 100 amps, and can handle voltages of up to 600V AC or 500V DC.
Key Features:
-
Thermal-Magnetic Protection: Offers both overload and short-circuit protection in a single, maintenance-free unit.
-
Standard Interrupting Capacity: 18kA at 600V and 25kA at 480V—suitable for medium-duty fault interruption.
-
3-Phase, 3-Pole Configuration: Supports industrial-level power distribution systems.
-
UL and IEC Certified: Compliant with UL 489 and IEC 60947-2 standards for safety and international acceptance.
-
Flexible Wiring: Load lugs support wire sizes from 10 to 1/0 AWG, for copper or aluminum.
-
Compact Dimensions: Measures 3 x 6.35 x 3.92 inches, ideal for tight panel installations.
The ED63B100 provides high-performance protection and compliance in a compact, field-ready circuit protection device.
