EDB14015EPD | Square D 15A 1-Pole 277 VAC Molded Case Circuit Breaker, Thermal Magnetic, Bolt-On
- Regular price
- $872.00
- Sale price
- $872.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB14015EPD
Description

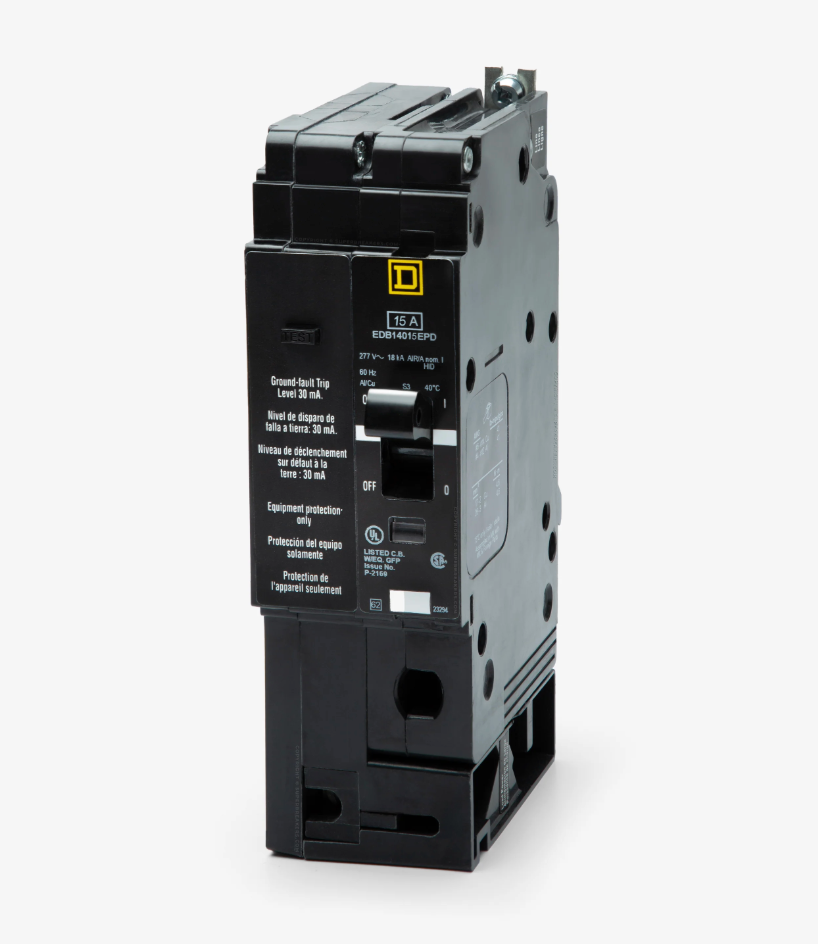

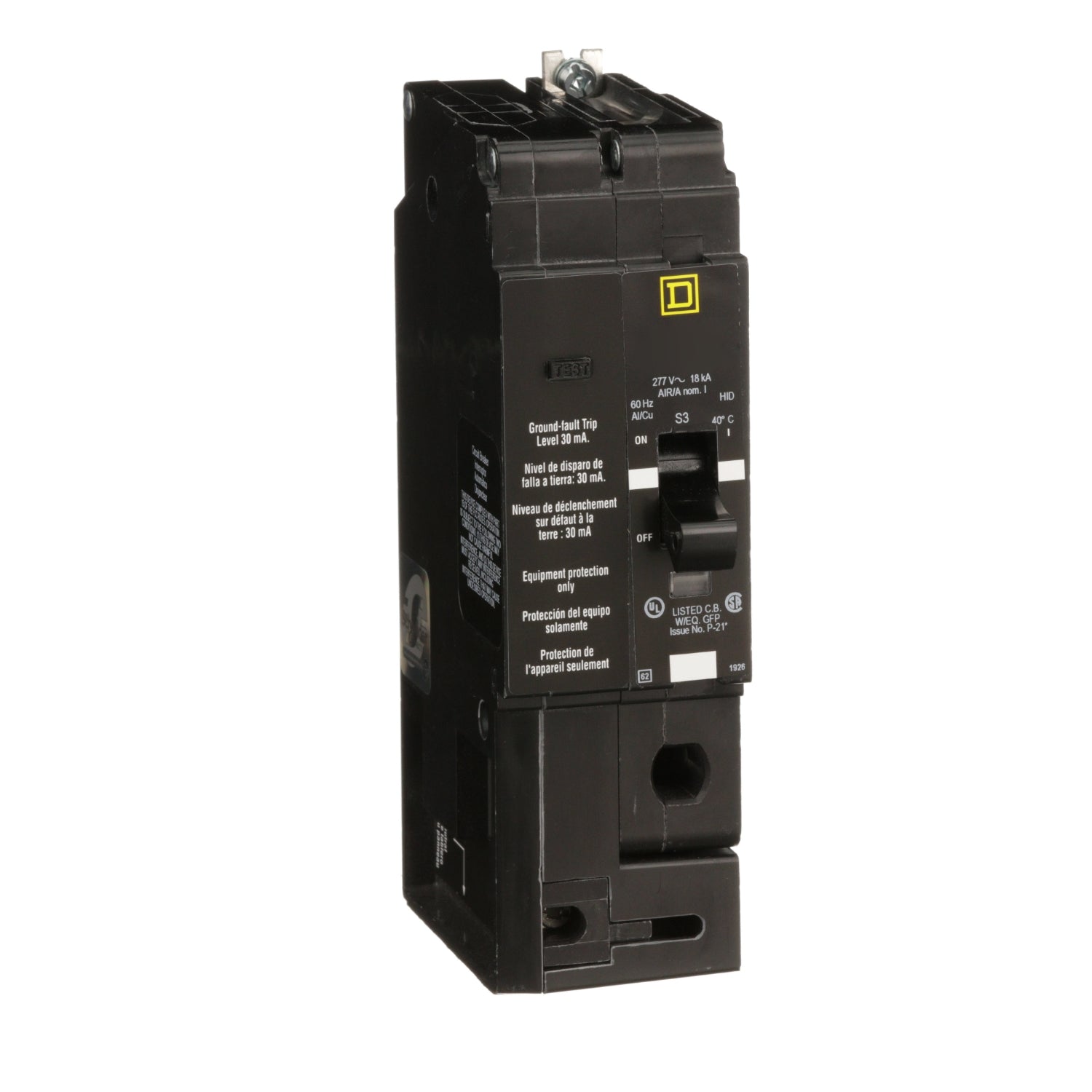

The Square D EDB14015EPD is a 1-pole molded case circuit breaker rated for 15 amps at 277 VAC. It provides dependable thermal-magnetic protection against overloads, short circuits, and ground faults in lighting and distribution applications. Designed for bolt-on installation, this breaker ensures consistent, safe, and efficient performance in commercial and industrial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | EDB14015EPD |
| Subcategory | Molded Case |
| Series | EDB Series |
| Frame Type | 125A / E-Frame |
| Poles | 1 |
| Amperage Rating | 15 A |
| Voltage Rating | 277 VAC |
| Phase | 1 |
| Interrupting Rating | 18 kA @ 480 V, 25 kA @ 120 V |
| Trip Functions | Long-Time & Instantaneous |
| Protection Type | Thermal Magnetic with Ground-Fault |
| Ground-Fault Sensitivity | 30 mA |
| Mounting Type | Bolt-On |
| Connection Type | Lug |
| Wire Range | AWG 14–6 Cu / AWG 12–4 Al |
| Operating Temperature | –25 °C to 70 °C (–13 °F to 158 °F) |
| Panel Compatibility | NF Panelboards |
| Certifications | cULus, IEC, HACR, HID, TAA Compliant |
| Country of Origin | Mexico |
| Dimensions (H × W × D) | 6.64 in × 1.96 in × 4.05 in |
| Weight | 1 lb |
Information About EDB14015EPD
The EDB14015EPD is part of Square D’s EDB Series of molded case circuit breakers, built for use in NF panelboards and similar power distribution assemblies. It features a thermal-magnetic trip unit with long-time and instantaneous protection modes for reliable circuit control. The breaker supports bolt-on mounting, aluminum or copper wiring, and includes a 30 mA ground-fault sensing capability. With HACR and HID ratings, it meets cULus and IEC standards, offering a versatile solution for modern electrical protection systems.
Key Features:
- Thermal-Magnetic Trip Unit: Combines long-time and instantaneous functions for precise circuit protection.
- Ground-Fault Equipment Protection: Provides 30 mA earth-leakage sensitivity for enhanced safety.
- Bolt-On Connection: Ensures secure mechanical and electrical contact in NF panelboards.
- High Interrupting Capacity: Rated 18 kA at 480 V and 25 kA at 120 V for strong fault-clearing performance.
- Temperature-Rated Design: Calibrated for reliable operation up to 40 °C ambient temperature.
- Wide Wire Range: Accepts AWG 14–6 Cu and AWG 12–4 Al conductors for installation flexibility.
- Certified Compliance: Meets cULus, IEC, HACR, and HID standards for industrial and commercial safety.
- Durable Construction: Compact E-frame design provides long-term reliability in demanding environments.
The EDB14015EPD delivers the reliability and precision required for professional-grade circuit protection in lighting and power distribution systems.
