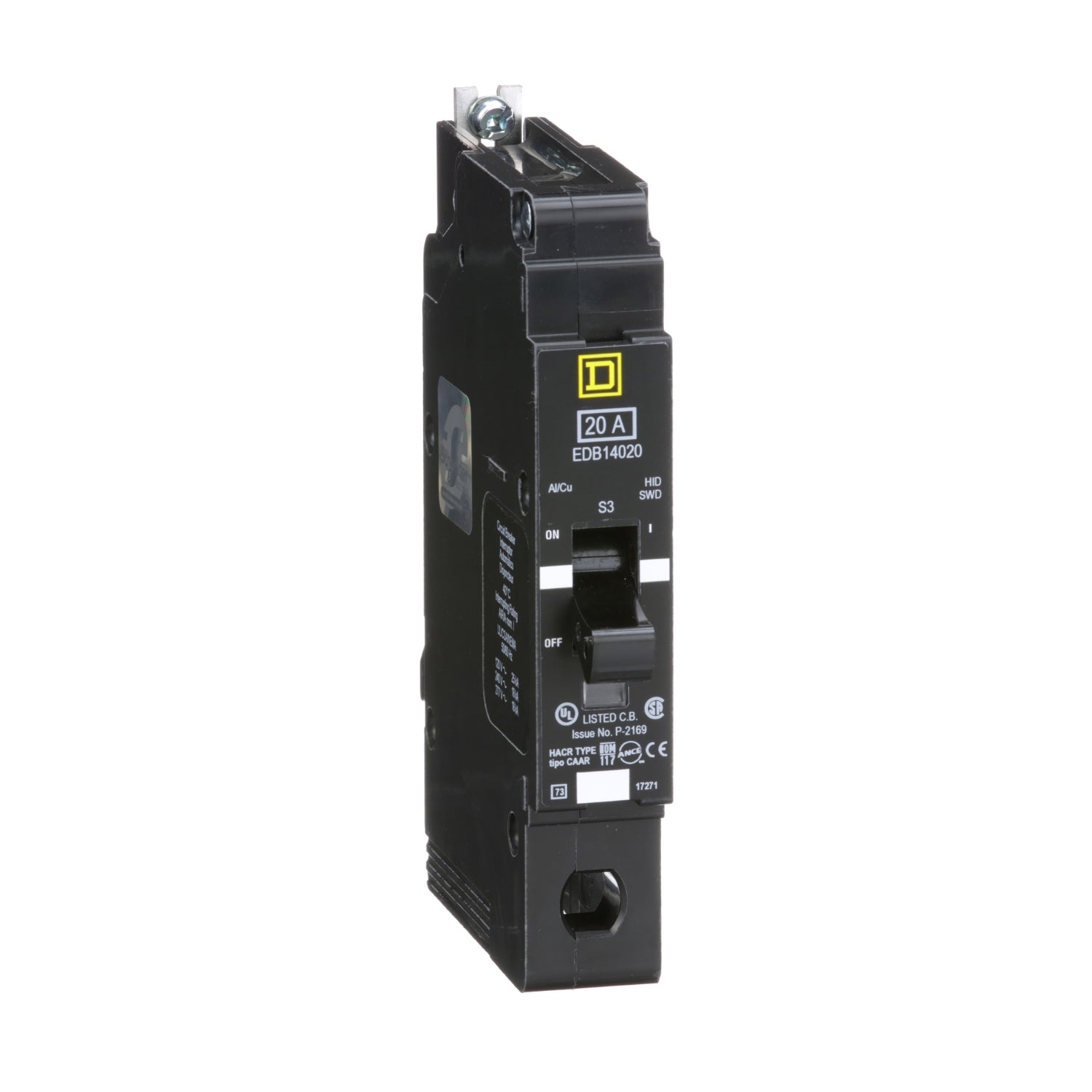

EDB14020 | Schneider Electric Mini Circuit Breaker
- Regular price
- $59.00
- Sale price
- $59.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: EDB14020
Description
The EDB14020 is a Mini Circuit Breaker belonging to the E-Frame series, designed for integration within Square D NF Panelboards. It is engineered to deliver robust overload and short circuit protection, featuring a thermal-magnetic trip unit and a trip signal indicator. Specifically, this variant is HID rated, Switching Duty rated, and HACR rated. It operates at 20A and 277 VAC, with a maximum interrupt rating of 25 kA at 120 VAC. The device has a hold current of 270A and a trip current of 875A. Various accessories are compatible with this breaker. It is calibrated for operation at 40 degrees Celsius and holds UL Listings for Switching Duty and High Intensity Discharge, as well as being HACR rated.
Technical Specifications
|
Part # |
EDB14020 |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EDB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A Line Rated Current |
|
Rated Current |
20 A |
|
Maximum operating voltage |
277 V AC |
|
Electrical connection |
Lugs aluminum |
|
Holding Current |
270 A |
|
Local signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
1 |
|
Number of spaces |
1 |
|
Number of spaces required |
1 |
|
Product destination |
NF panelboard |
|
Protection Type |
Short-circuit, Overload |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
D |
|
Tightening torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
0.98 in (24.89 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
2 lb(US) (0.91 kg) |
Information About EDB14020
The EDB14020 is a Mini Circuit Breaker falling within the E-Frame series, specifically designed for integration within Square D NF Panelboards, primarily employed in lighting applications. This range of breakers is distinguished by its established effectiveness and reliability, boasting a diverse array of robust features tailored to cater to the demands of Square D NF Panelboards.
Principally engineered to deliver superior overload and short circuit protection, the E-Frame breakers are equipped with a thermal-magnetic trip unit, ensuring prompt and efficient response to electrical faults. Additionally, a signal indicator is incorporated into the design, promptly alerting users in the event of a trip occurrence, thereby facilitating swift troubleshooting and resolution.
The EDB14020 breaker is further distinguished by its HID rating, Switching Duty rating, and HACR rating, indicating its suitability for a range of applications including high intensity discharge lighting systems and switching operations. With a rating of 20A and 1 pole configuration, this breaker operates within an operating voltage of 277 VAC, offering reliable performance across a variety of electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
