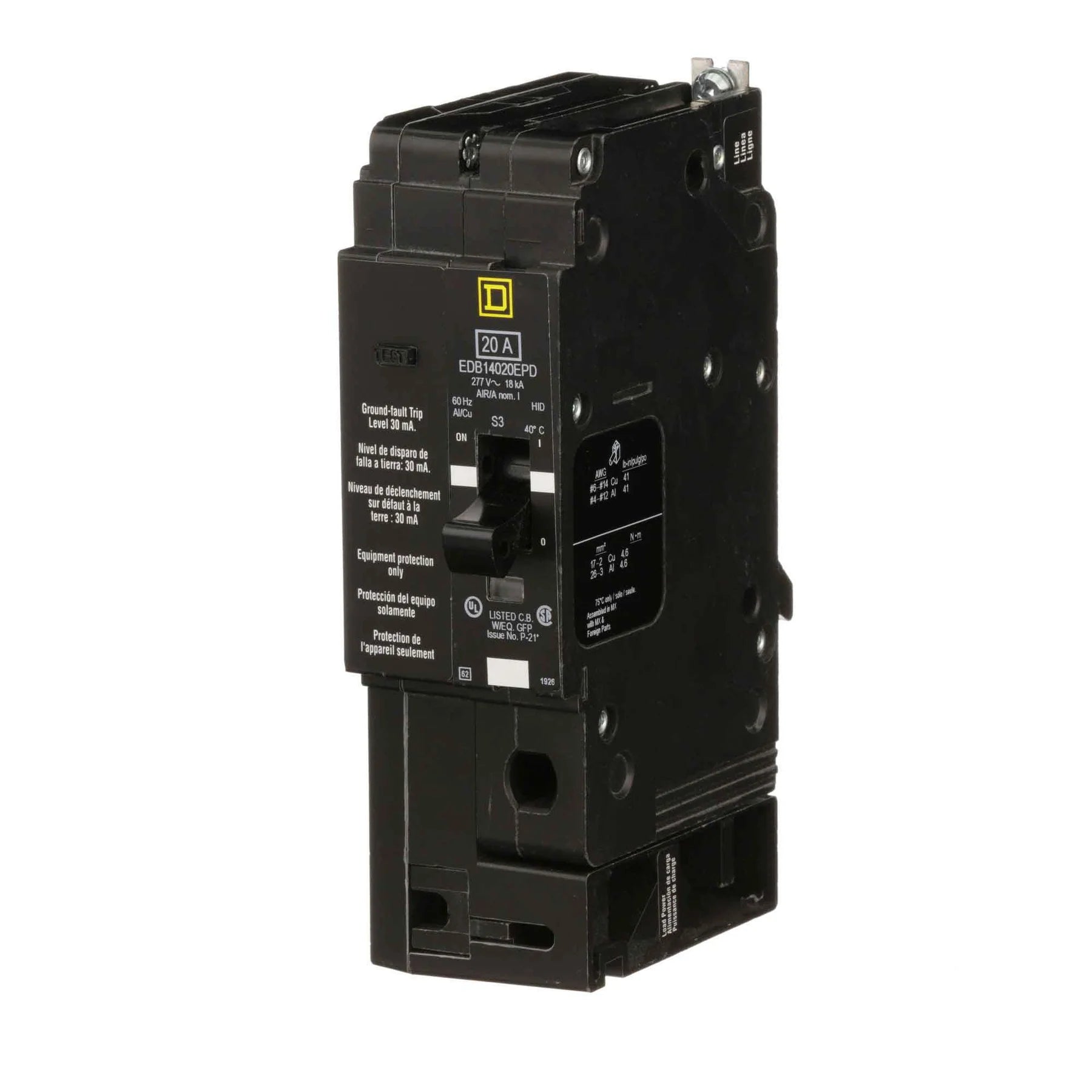

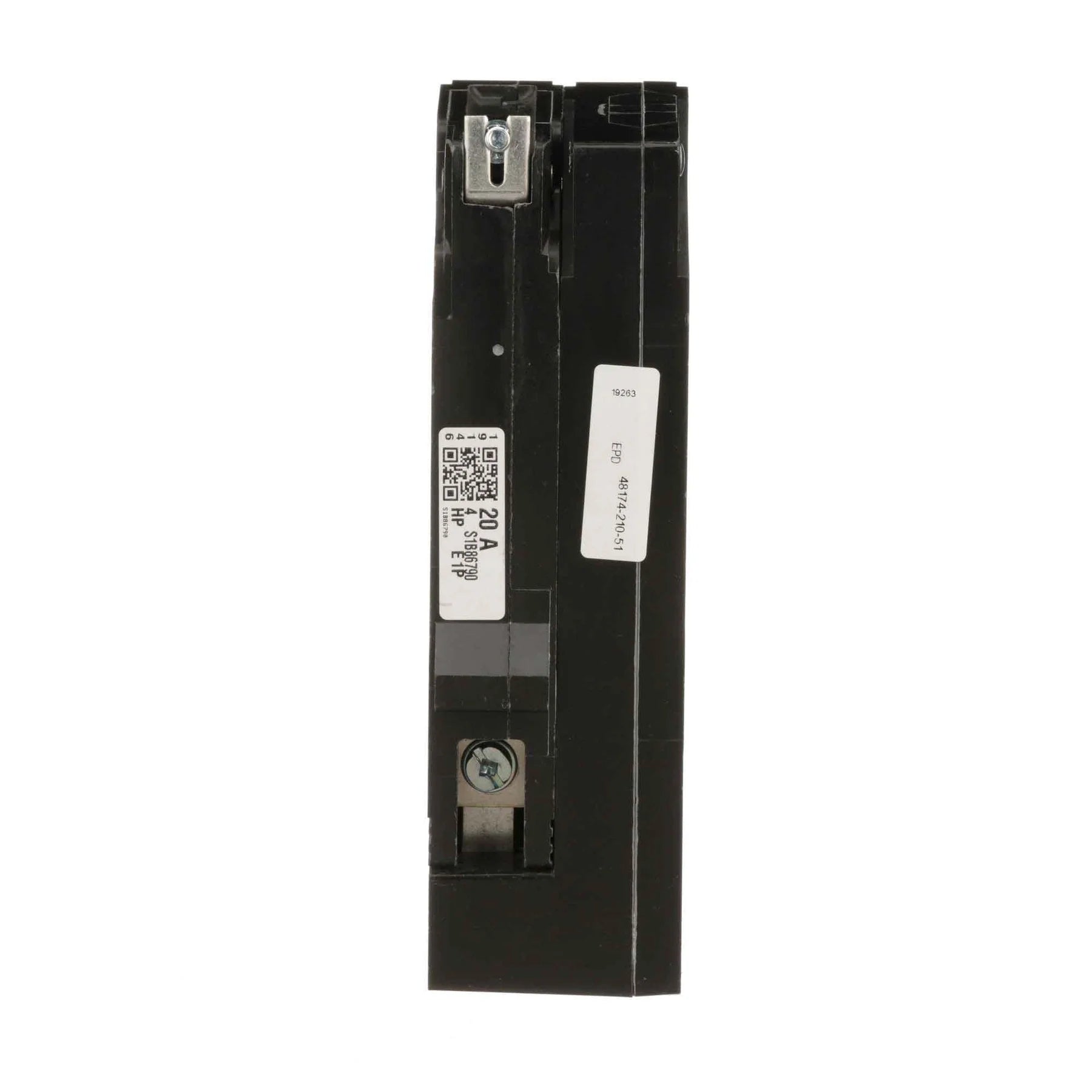

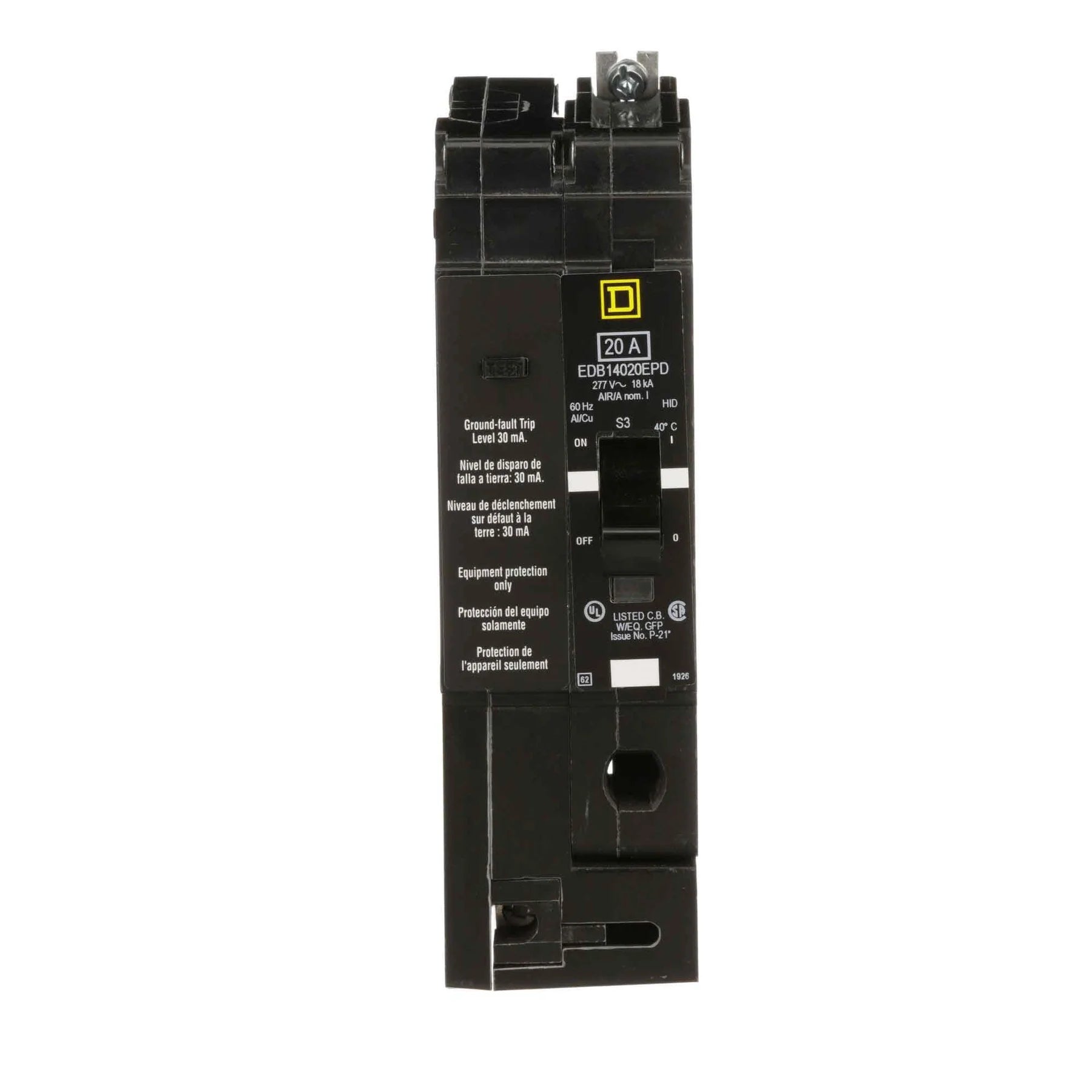

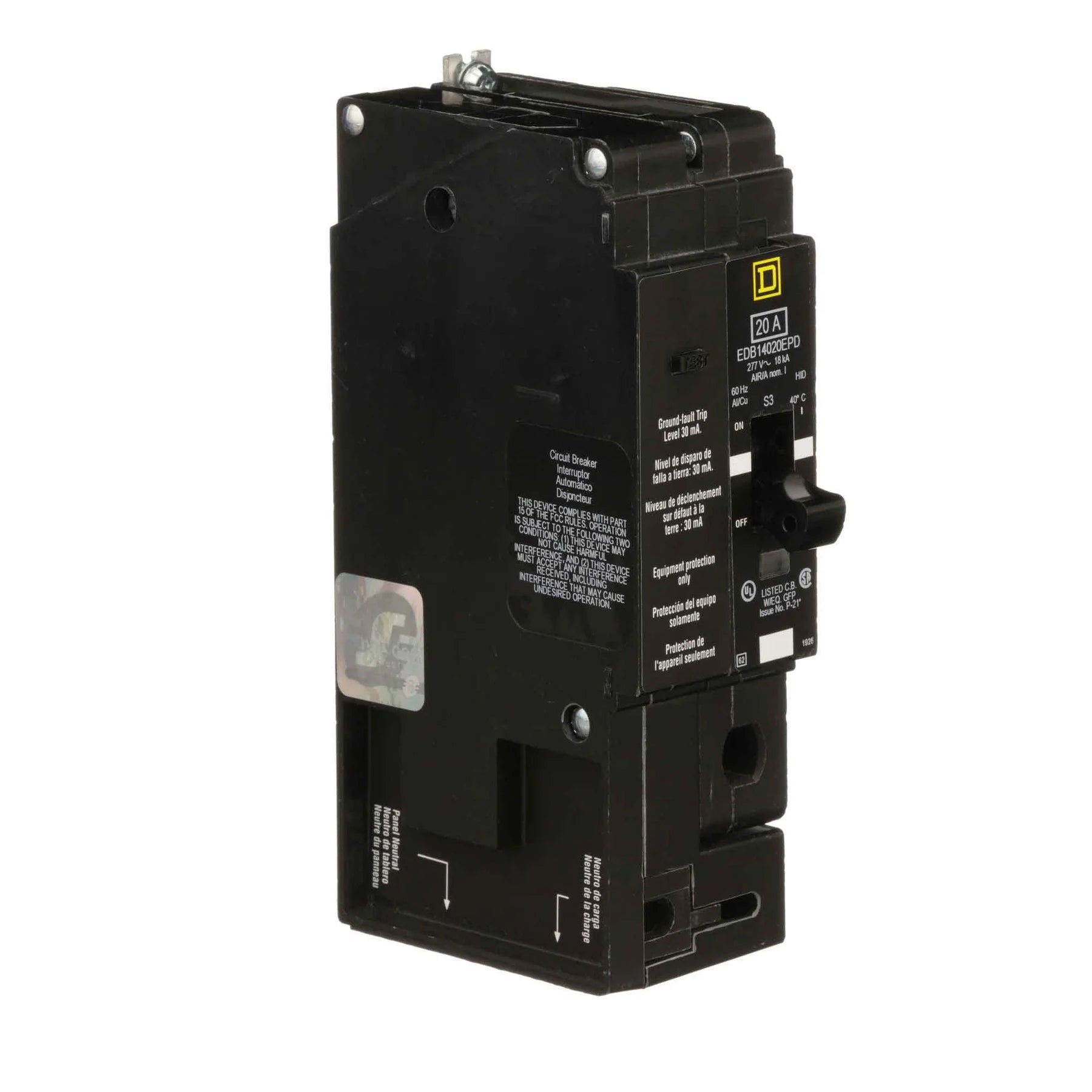

EDB14020EPD | Schneider Electric Mini Circuit Breaker
- Regular price
- $545.00
- Sale price
- $545.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB14020EPD
Description
The EDB14020EPD is a mini circuit breaker from Eaton's E-Frame series, designed to provide effective electrical protection in various environments. This single-pole (1P) breaker has a current rating of 20A and operates at a voltage of 277VAC, making it suitable for commercial and industrial applications where higher voltage ratings are required.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | EDB14020EPD |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | EDB Series |
| Type | EDB |
| Voltage | 277 |
| Amperage | 20 |
| Phase | 1 |
| Functions | LI - Long-Time and Instantaneous |
| Poles | 1 |
| Protection | Thermal Magnetic |
| Connection | Bolt-On |
| AIC Rating | 18kA@480V |
Information About EDB14020EPD
The EDB14020EPD from Schneider Electric is a robust mini circuit breaker belonging to the EDB series, engineered to deliver reliable electrical protection in diverse industrial and commercial applications. Operating at a voltage of 277VAC with a current rating of 20A, this single-pole (1P) breaker is designed to safeguard circuits effectively.
Equipped with thermal magnetic protection, the EDB14020EPD features Long-Time and Instantaneous (LI) trip functions. These functions ensure prompt response to overloads and short circuits, maintaining electrical system integrity and safety. The breaker's bolt-on connection type facilitates secure installation and reliable electrical connections in panel boards or distribution panels.
The EDB14020EPD boasts an impressive interrupting capacity (AIC) of 18,000 amps (18kA) at 480VAC, enabling it to handle high fault currents efficiently, thereby preventing potential damage to equipment and ensuring operational continuity. This combination of advanced protective features and robust construction makes the EDB14020EPD an ideal choice for applications where reliable circuit protection is crucial.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
