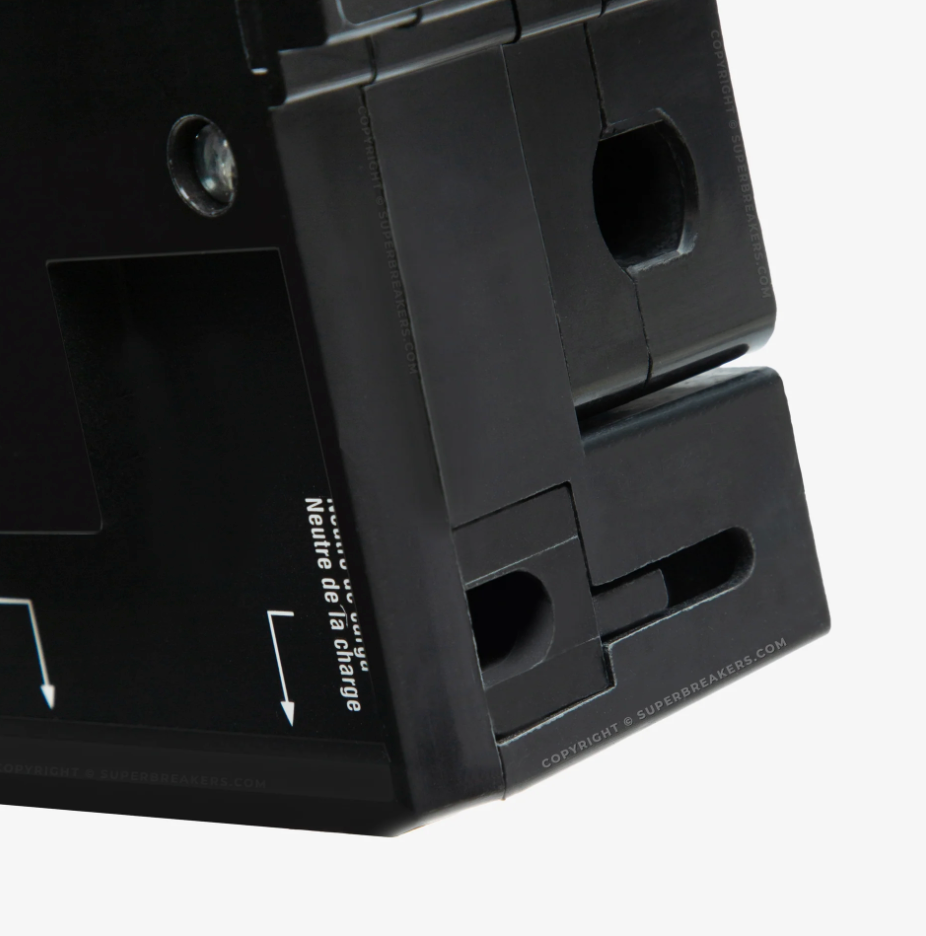

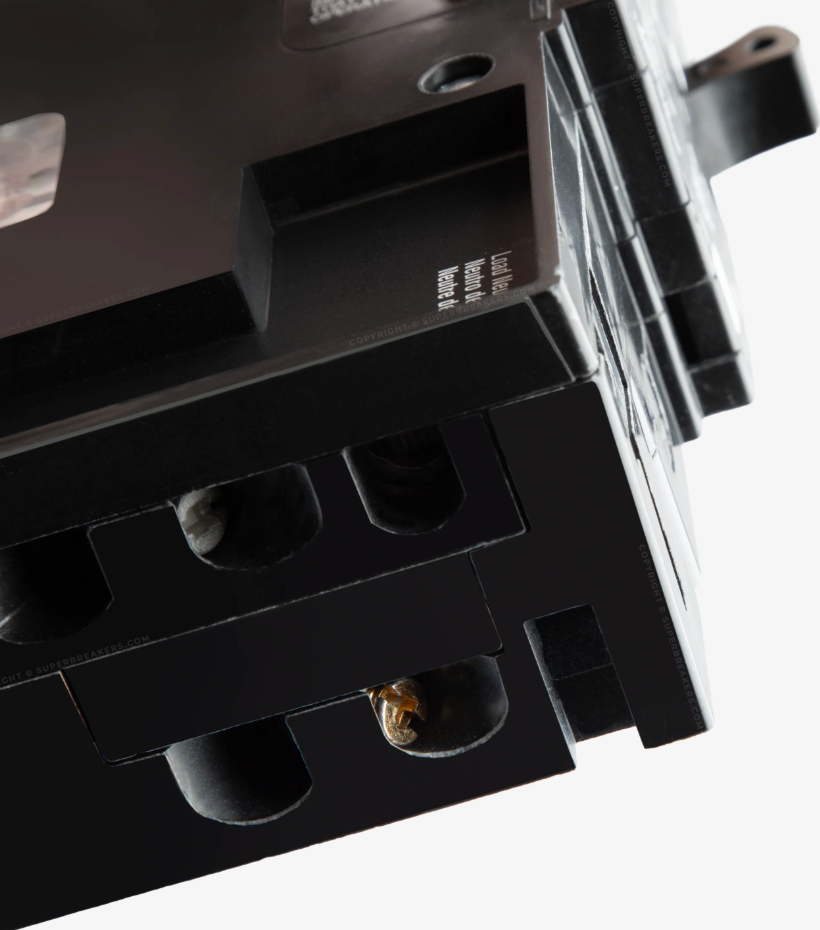

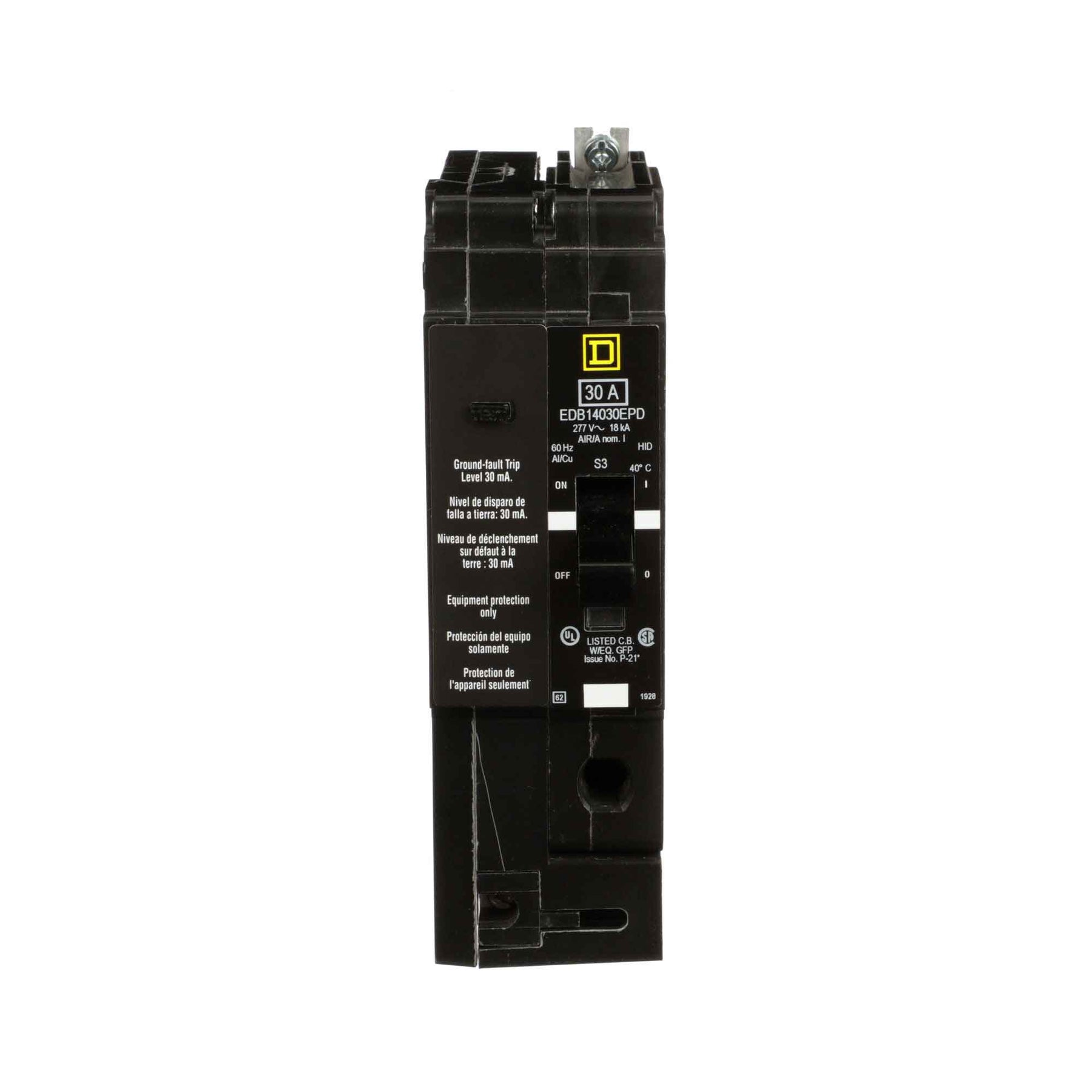

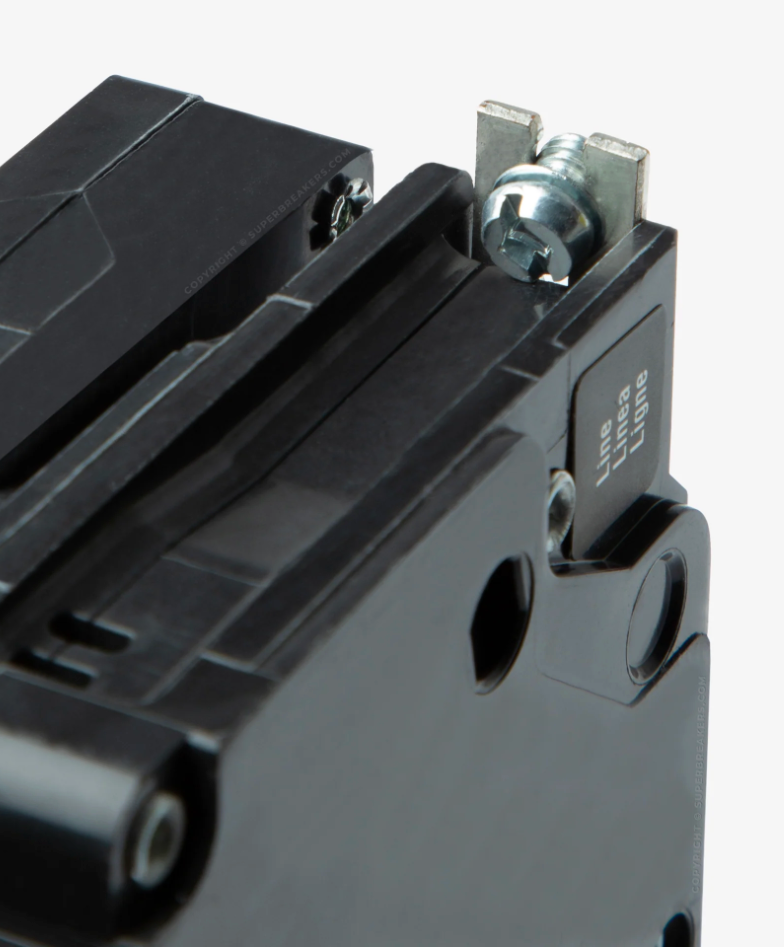

EDB14030EPD | Square D 30A 1-Pole 277 VAC Molded Case Circuit Breaker with Equipment Protection
- Regular price
- $923.00
- Sale price
- $923.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB14030EPD
Description
The Square D EDB14030EPD is a 1-pole, 30-amp molded case circuit breaker designed for use in lighting and power distribution panelboards. It features thermal-magnetic protection and a bolt-on mounting configuration for secure installation. This breaker provides dependable overload and short-circuit protection in commercial and industrial electrical systems operating at 277 VAC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | EDB14030EPD |
| Subcategory | Molded Case |
| Series | EDB Series |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Voltage Rating | 277 VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 18 kA @ 480V |
| Trip Unit Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Protection Type | Equipment Protection Device (30 mA Ground Fault) |
| Mounting Type | Bolt-On |
| Connection Type | Lug |
| Wire Range | AWG 14–6 Cu / AWG 12–4 Al |
| Frequency Rating | 50/60 Hz |
| Temperature Calibration | 40 °C |
| Housing Material | Thermoset Composite Resin |
| Certifications | UL Listed, CSA Certified, NOM 117, Federal Spec W-C-375B/GEN |
| Application | Lighting, HID, HACR, Switching Duty |
| Country of Origin | Mexico |
| Dimensions (Approx.) | 5.66 in H × 1.96 in W × 4.05 in D |
| Weight | 1 lb |
Information About EDB14030EPD
The EDB14030EPD is part of the Square D EDB Series, developed by Schneider Electric for efficient circuit protection in NF panelboards and other compatible systems. It includes an integrated equipment protection device (EPD) and offers 30 mA ground fault protection to ensure personnel and equipment safety. Built with a thermoset molded case, the breaker withstands harsh electrical environments while maintaining consistent trip performance. With UL, CSA, and NOM certifications, it meets rigorous international standards for reliability and safety.
Key Features:
- Thermal-Magnetic Trip Unit: Provides long-time and instantaneous trip functions for effective overload and short-circuit protection.
- Integrated Ground Fault Protection: Includes a 30 mA equipment protection device for added electrical safety.
- High Interrupting Rating: Rated for up to 18 kA at 480V, supporting a wide range of commercial applications.
- Bolt-On Mounting: Ensures secure attachment and stable operation within Square D NF panelboards.
- Durable Housing: Thermoset composite construction resists heat and impact for extended service life.
- Versatile Conductor Range: Accepts copper or aluminum conductors (AWG 14–6 Cu / AWG 12–4 Al).
- Certified Compliance: UL Listed, CSA Certified, NOM 117 compliant, and HACR rated for HVAC applications.
- Temperature Calibrated: Designed for 40°C ambient conditions, ensuring stable thermal performance.
The EDB14030EPD delivers the reliability and precision required for safe and efficient power distribution in lighting and equipment protection systems.
