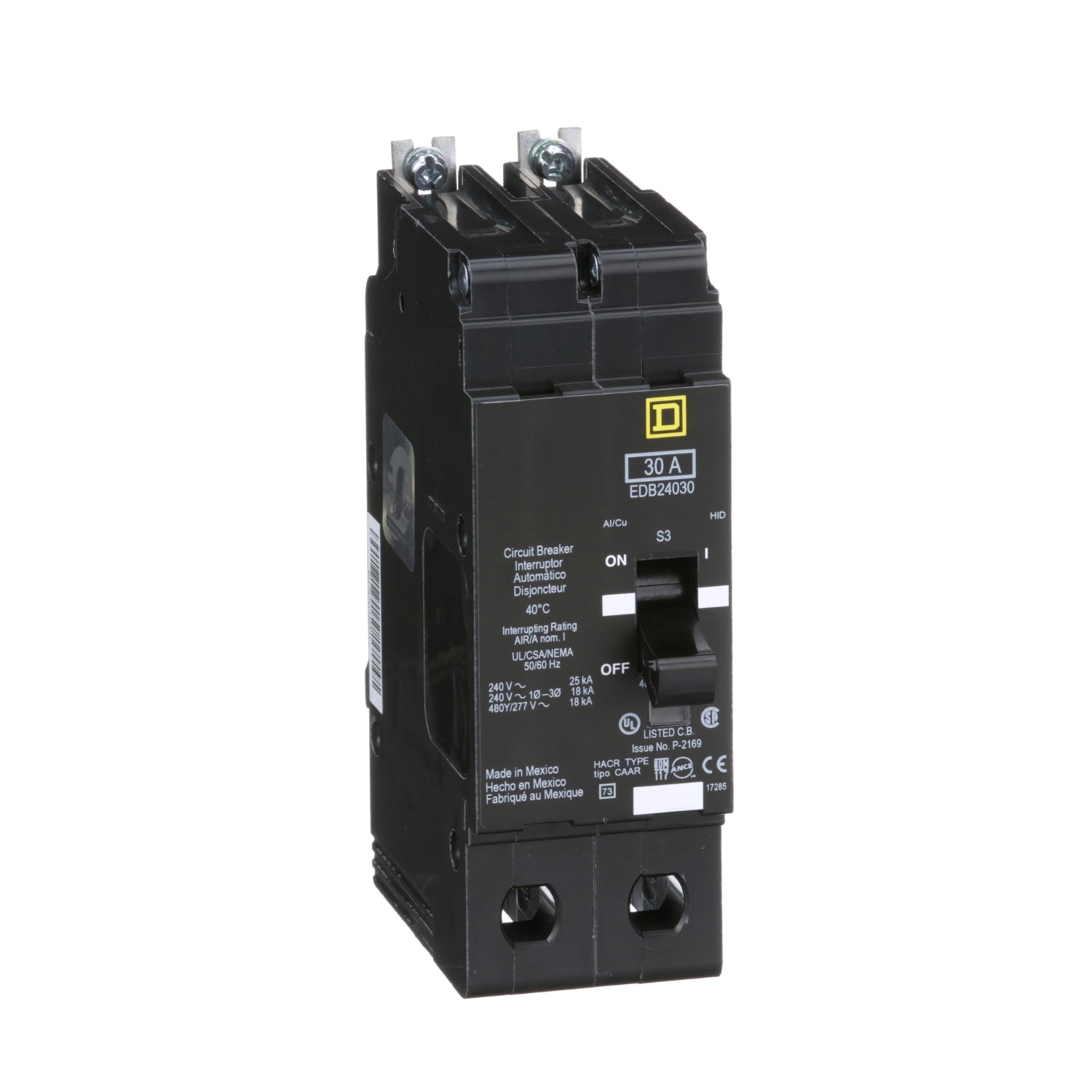

EDB24030 | Schneider Electric Mini Circuit Breaker
EDB24030 | Schneider Electric Mini Circuit Breaker
EDB24030 | Schneider Electric Mini Circuit Breaker
    EDB24030 | Schneider Electric Mini Circuit Breaker
EDB24030 | Schneider Electric Mini Circuit Breaker

EDB24030 | Schneider Electric Mini Circuit Breaker

Part #: EDB24030 Manufactured by: Schneider Electric
Regular price
$225.00
Sale price
$225.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The EDB24030 is a Mini Circuit Breaker from the E-Frame series, designed for use in Square D NF Panelboards. This breaker ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: EDB24030
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: EDB24030

Description / Specifications

Description

The EDB24030 is a mini circuit breaker belonging to the E-Frame series, designed for use in Square D NF Panelboards. This series is recognized for its effectiveness and reliability in providing superior overload and short circuit protection. The E-Frame circuit breakers are equipped with a thermal-magnetic trip unit and feature a signal indicator to denote when a trip has occurred.



Technical Specifications

Part #

EDB24030

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range of Product

125 A Frame EDB-EGB-EJB

Product or Component Type

Miniature circuit-breaker

Device short name

EDB

Module type

E-Frame

Trip unit rating

875 A

Line Rated Current

30 A

Maximum operating voltage

480Y/277 V AC

Electrical connection

Lugs aluminium

Holding Current

270 A

Local signalling

Trip indicator

Mounting Mode

Bolt-on

Number of poles

2

Number of spaces

2

Number of spaces required

2

Product destination

NF panelboard

Protection Type

Short-circuit, Overload

Trip unit technology

Thermal-magnetic

Breaking capacity code

D

Tightening torque

30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)

Height

5.66 in (143.76 mm)

Width

1.96 in (49.78 mm)

Depth

4.05 in (102.87 mm)

Net Weight

3 lb(US) (1.36 kg)





Information About EDB24030

The EDB24030 is a Mini Circuit Breaker from the E-Frame series, rated at 30 amperes with a 2-pole configuration. It operates at a maximum voltage of 480Y/277 VAC. This breaker is specifically designed for use in Square D NF panelboards, providing robust features aimed at superior overload and short circuit protection. The breaker is rated for a maximum interrupt capacity of 25 kA at 120 VAC, ensuring reliability under high fault conditions. It is HID (High-Intensity Discharge) rated and HACR (Heating, Air Conditioning, and Refrigeration) rated, meeting industry standards for various applications.

This E-Frame breaker utilizes a thermal-magnetic trip unit, a proven technology for reliable circuit interruption. The trip unit incorporates a signal indicator, which provides a visual cue when the breaker has tripped. The holding current of the device is 270A, the maximum current at which the breaker can be held without tripping. The trip current is set at 875A, the current level at which the breaker is guaranteed to trip, ensuring protection against overcurrent conditions.

The EDB24030 features bolt-on mounting, facilitating secure and stable installation within the panelboard. The electrical connection is achieved through aluminum lugs, designed to accommodate wire sizes ranging from 14 AWG to 6 AWG. The tightening torque specification is 30.09 lbf.in (3.4 N.m), ensuring proper connection integrity. The breaker occupies two spaces within the panelboard, making it suitable for applications requiring compact yet efficient protection solutions.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The EDB24030 is a mini circuit breaker belonging to the E-Frame series, designed for use in Square D NF Panelboards. This series is recognized for its effectiveness and reliability in providing superior overload and short circuit protection. The E-Frame circuit breakers are equipped with a thermal-magnetic trip unit and feature a signal indicator to denote when a trip has occurred.



Technical Specifications

Part #

EDB24030

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range of Product

125 A Frame EDB-EGB-EJB

Product or Component Type

Miniature circuit-breaker

Device short name

EDB

Module type

E-Frame

Trip unit rating

875 A

Line Rated Current

30 A

Maximum operating voltage

480Y/277 V AC

Electrical connection

Lugs aluminium

Holding Current

270 A

Local signalling

Trip indicator

Mounting Mode

Bolt-on

Number of poles

2

Number of spaces

2

Number of spaces required

2

Product destination

NF panelboard

Protection Type

Short-circuit, Overload

Trip unit technology

Thermal-magnetic

Breaking capacity code

D

Tightening torque

30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)

Height

5.66 in (143.76 mm)

Width

1.96 in (49.78 mm)

Depth

4.05 in (102.87 mm)

Net Weight

3 lb(US) (1.36 kg)





Information About EDB24030

The EDB24030 is a Mini Circuit Breaker from the E-Frame series, rated at 30 amperes with a 2-pole configuration. It operates at a maximum voltage of 480Y/277 VAC. This breaker is specifically designed for use in Square D NF panelboards, providing robust features aimed at superior overload and short circuit protection. The breaker is rated for a maximum interrupt capacity of 25 kA at 120 VAC, ensuring reliability under high fault conditions. It is HID (High-Intensity Discharge) rated and HACR (Heating, Air Conditioning, and Refrigeration) rated, meeting industry standards for various applications.

This E-Frame breaker utilizes a thermal-magnetic trip unit, a proven technology for reliable circuit interruption. The trip unit incorporates a signal indicator, which provides a visual cue when the breaker has tripped. The holding current of the device is 270A, the maximum current at which the breaker can be held without tripping. The trip current is set at 875A, the current level at which the breaker is guaranteed to trip, ensuring protection against overcurrent conditions.

The EDB24030 features bolt-on mounting, facilitating secure and stable installation within the panelboard. The electrical connection is achieved through aluminum lugs, designed to accommodate wire sizes ranging from 14 AWG to 6 AWG. The tightening torque specification is 30.09 lbf.in (3.4 N.m), ensuring proper connection integrity. The breaker occupies two spaces within the panelboard, making it suitable for applications requiring compact yet efficient protection solutions.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
