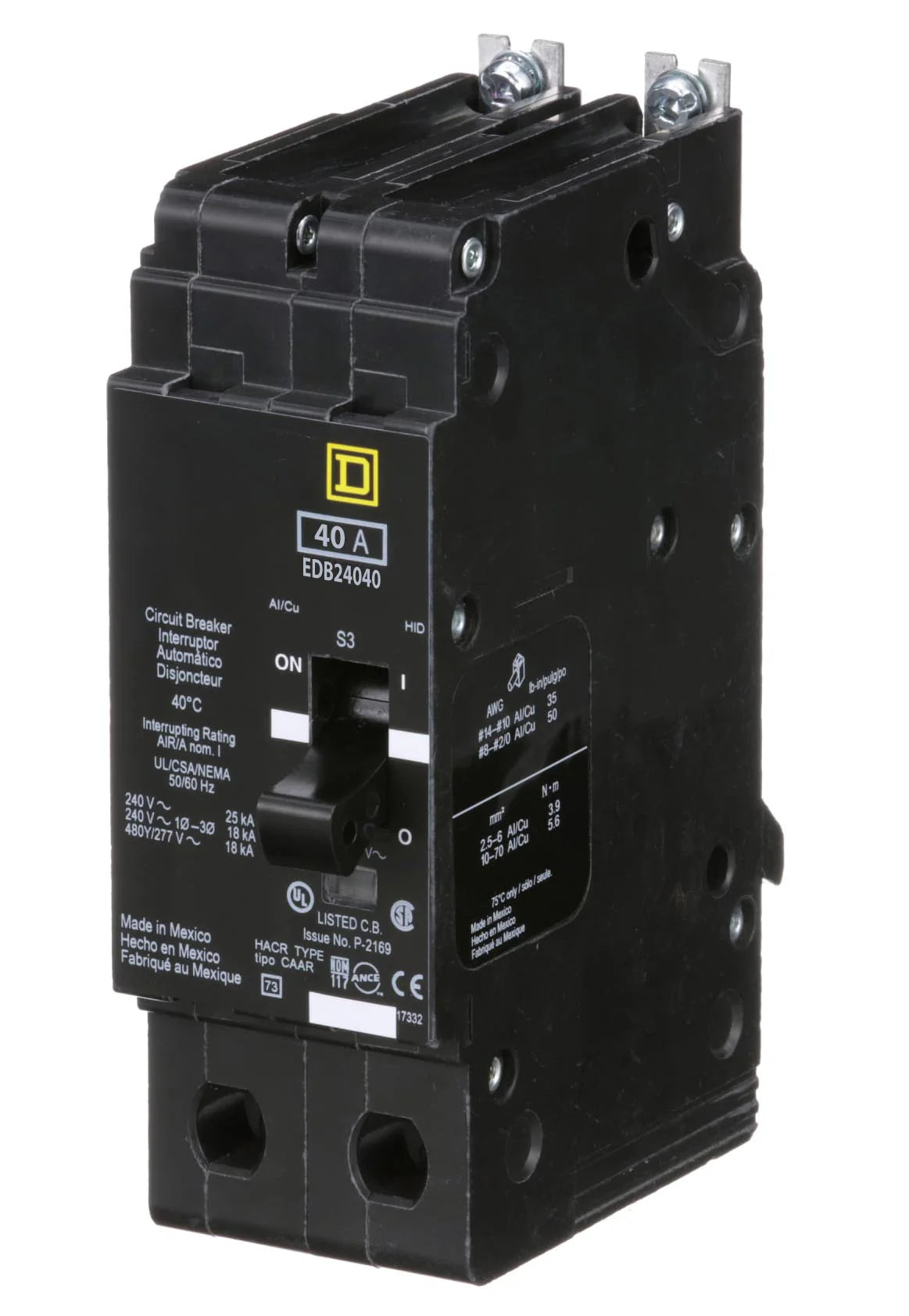

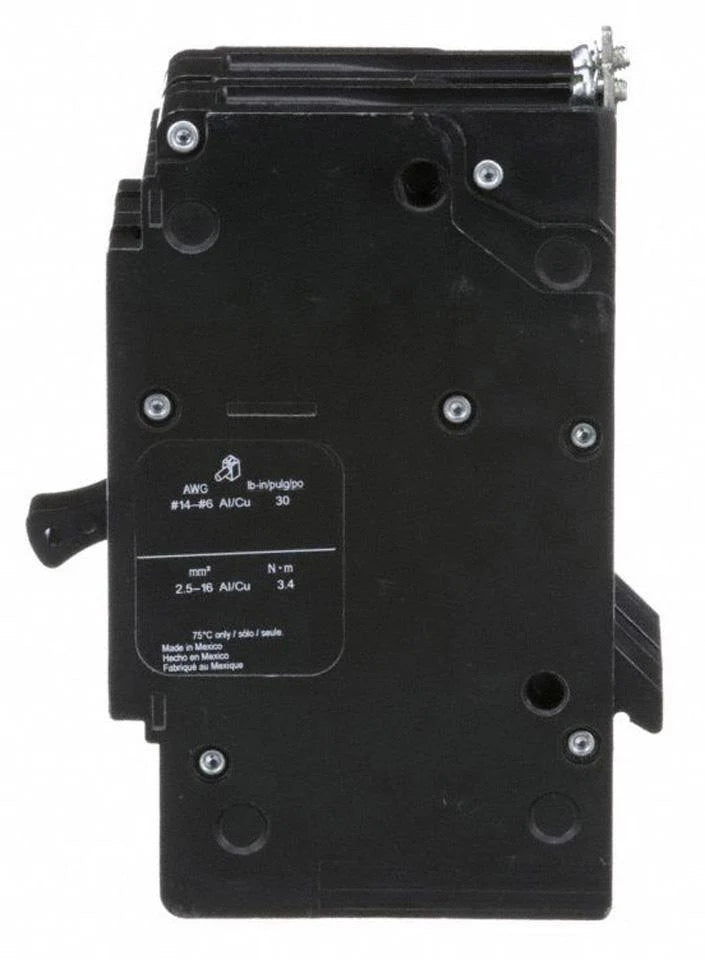

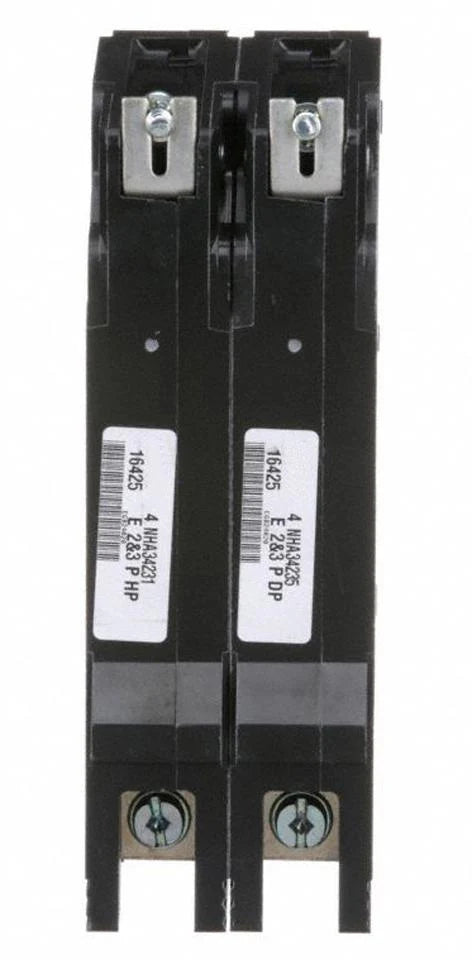

EDB24040 | Schneider Electric Mini Circuit Breaker
- Regular price
- $147.00
- Sale price
- $147.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB24040
Description
The EDB24040 is a mini circuit breaker belonging to the E-Frame series manufactured by Schneider Electric. This breaker is designed with a current rating of 40 amps and operates across two poles. It is intended for protecting electrical circuits in various applications where moderate current handling and reliable circuit protection are required.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | EDB24040 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | EDB Series |
| Type | EDB |
| Voltage | 480 |
| Amperage | 40 |
| Connection | Bolt-On |
| Protection | Thermal Magnetic |
| AIC Rating | 18kA@480V |
| Phase | 1 |
| Functions | LI - Long-Time and Instantaneous |
| Poles | 2 |
Information About EDB24040
The EDB24040 is a Schneider Electric mini circuit breaker from the EDB series, designed for single-phase electrical systems. It operates at a voltage rating of 480 volts and has a current rating of 40 amps, making it suitable for protecting circuits in industrial and commercial settings where moderate current capacities are required.
Equipped with thermal magnetic protection, the EDB24040 incorporates both long-time and instantaneous trip functions (LI). This allows it to effectively protect against sustained overloads and promptly react to short-circuit conditions, ensuring reliable operation and safety of electrical installations.
Featuring a Bolt-On connection type, the breaker facilitates secure and easy installation onto electrical panels or enclosures, enhancing installation efficiency. It is configured with two poles, providing comprehensive protection across the single-phase system.
With an impressive interrupting capacity (AIC) of 18kA at 480 volts, the EDB24040 can safely interrupt fault currents, thereby protecting equipment and ensuring personnel safety. Its robust design and adherence to safety standards make it a dependable choice for critical circuit protection applications where reliability and performance are essential.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
