EDB24100 | Schneider Electric Mini Circuit Breaker

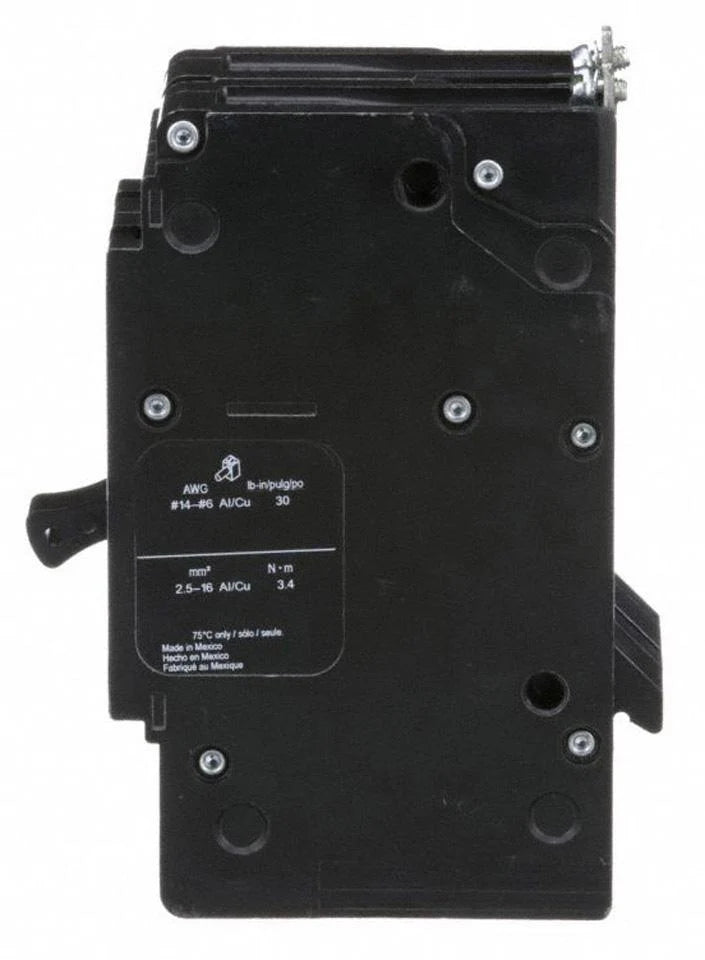

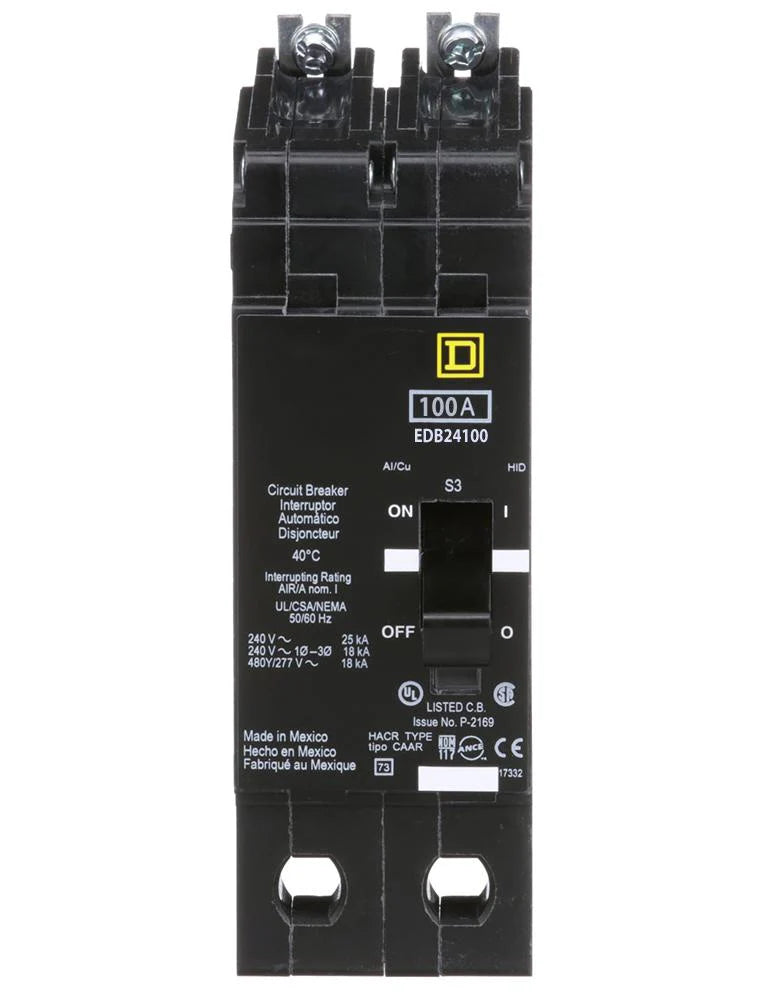

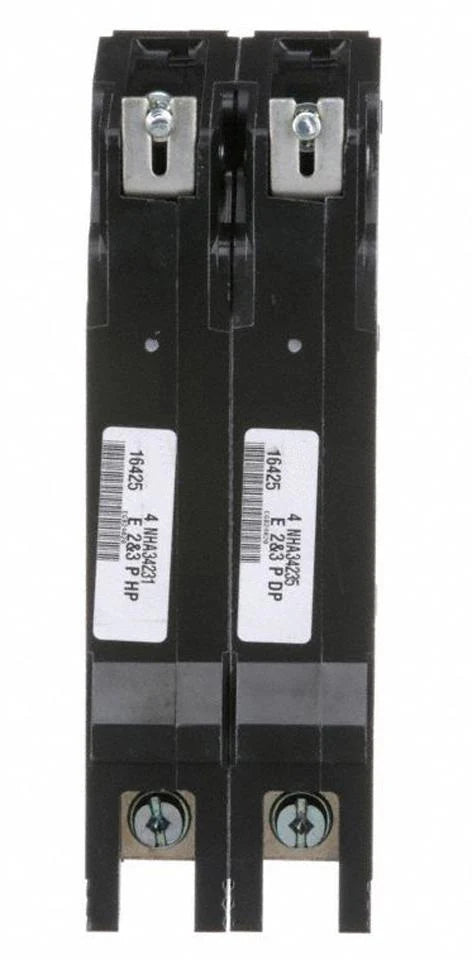

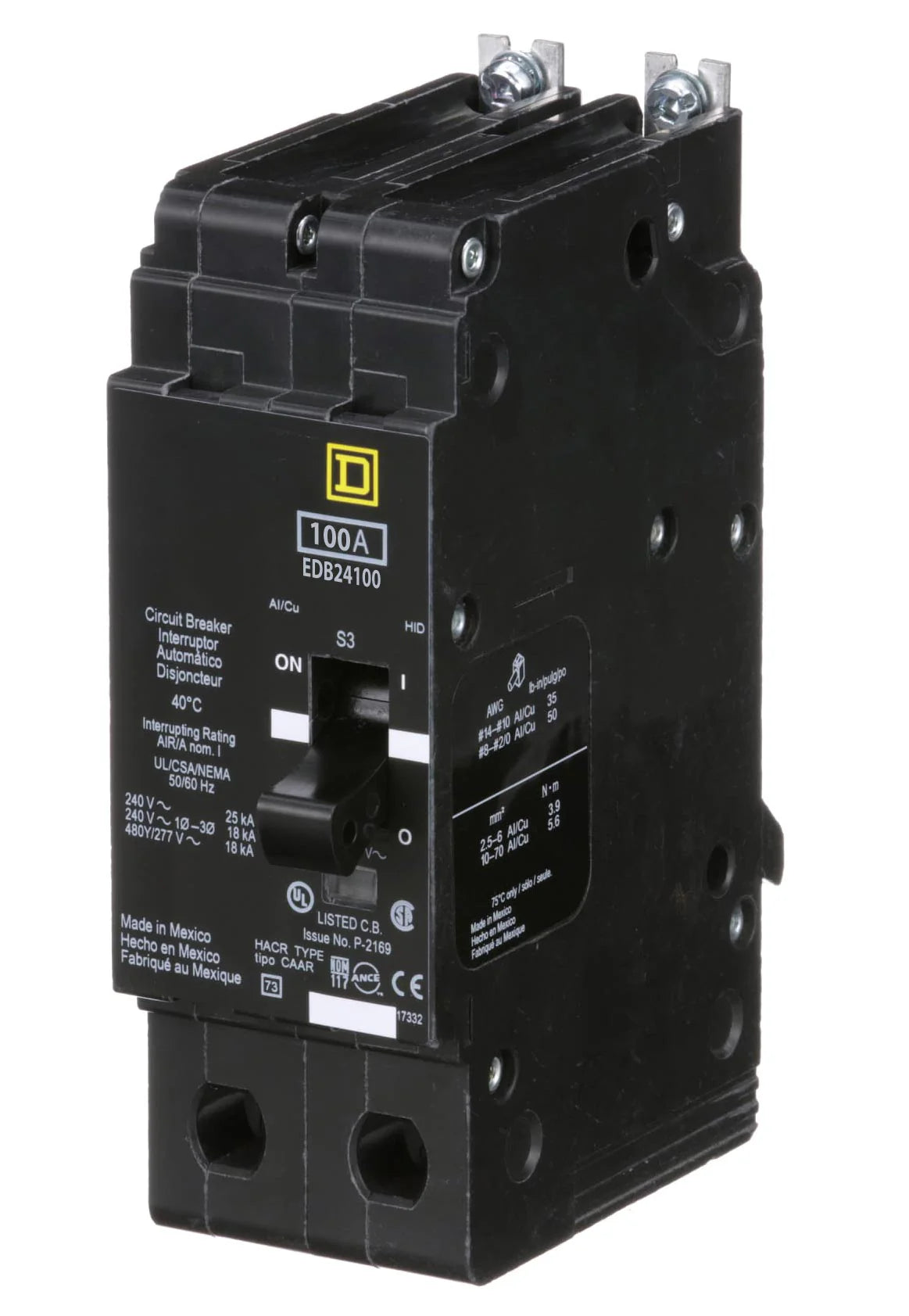

EDB24100 - Mini Circuit Breaker, E-Frame, 100A, 2 Pole, 480Y/277 VAC, 25 kA Max, Bolt On. The E-Frame Breaker is a lighting panelboard circuit breaker designed for effective and reliable performance. It is specifically utilized in Square D NF Panelboards. This breaker range is designed to offer superior overload and short circuit protection. All E-Frame breakers incorporate a thermal-magnetic trip unit and a signal indicator that denotes when a trip has occurred. This specific E-Frame breaker is HACR rated. The breaker operates at 100A, features 2 poles, and functions at an operating voltage of 480Y/277 VAC. It provides a maximum interrupt rating of 25 kA at 120 VAC.

The device has a holding current of 1000A, which is the maximum current at which the breaker can be maintained to ensure it will trip. It also has a trip current of 2300A, the current value at which the breaker is guaranteed to trip. This breaker is equipped with several accessories, enhancing its functionality and adaptability in various applications. The breaker is calibrated for an operating temperature of 40 degrees Celsius. It is HACR rated, ensuring its suitability for heating, air conditioning, and refrigeration applications.

The EDB24100 breaker falls under the category of circuit breakers and the subcategory of molded case circuit breakers. It is part of the 125 A Frame EDB-EGB-EJB product range. The breaker type is a miniature circuit-breaker with the device short name EDB and the module type E-Frame. The trip unit rating is 2300A. The line rated current is 100A, and the maximum operating voltage is 480Y/277 V AC. The breaker supports AWG 12 to AWG 2/0 aluminum and AWG 14 to AWG 2/0 copper connections. It is HACR rated, indicating its applicability in heating, air conditioning, and refrigeration systems.
