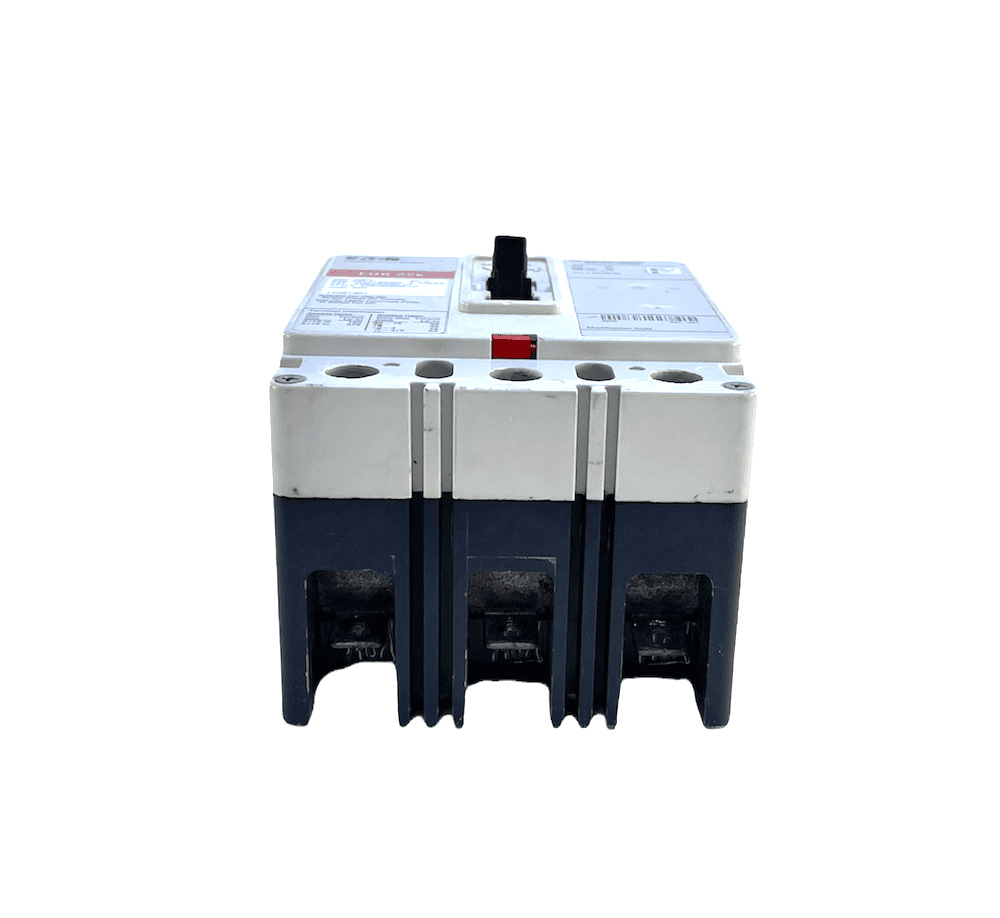

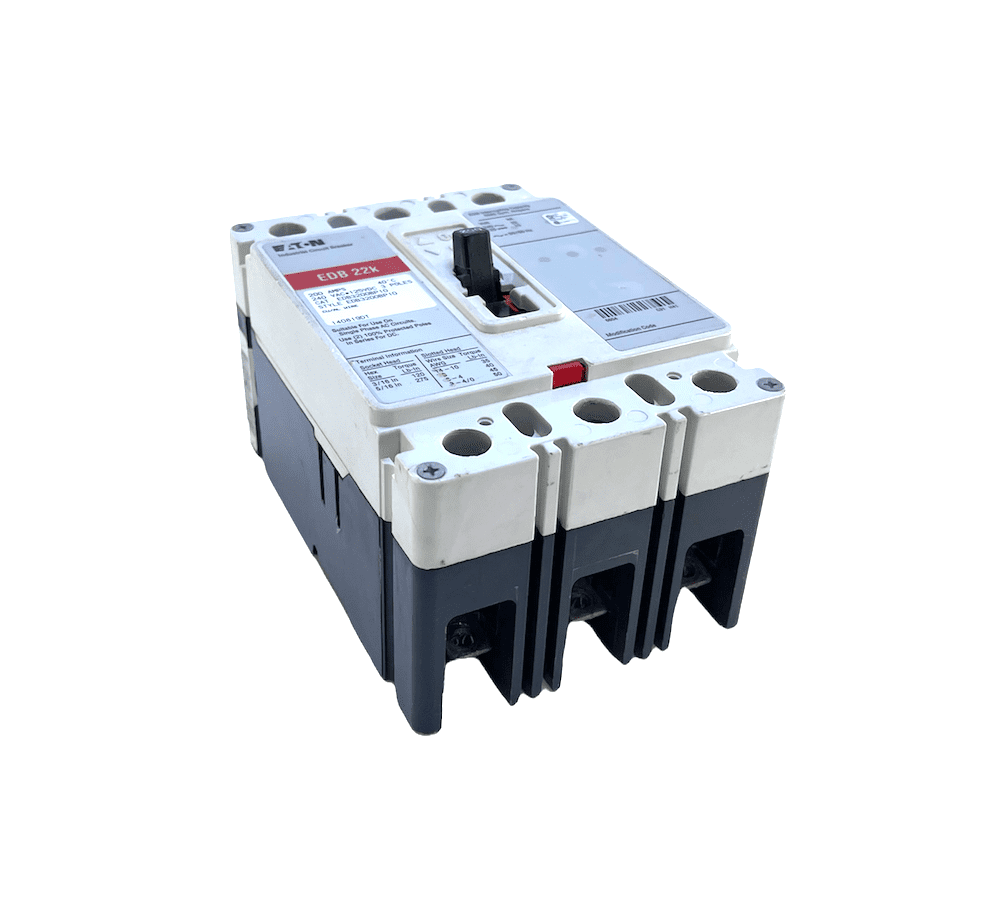

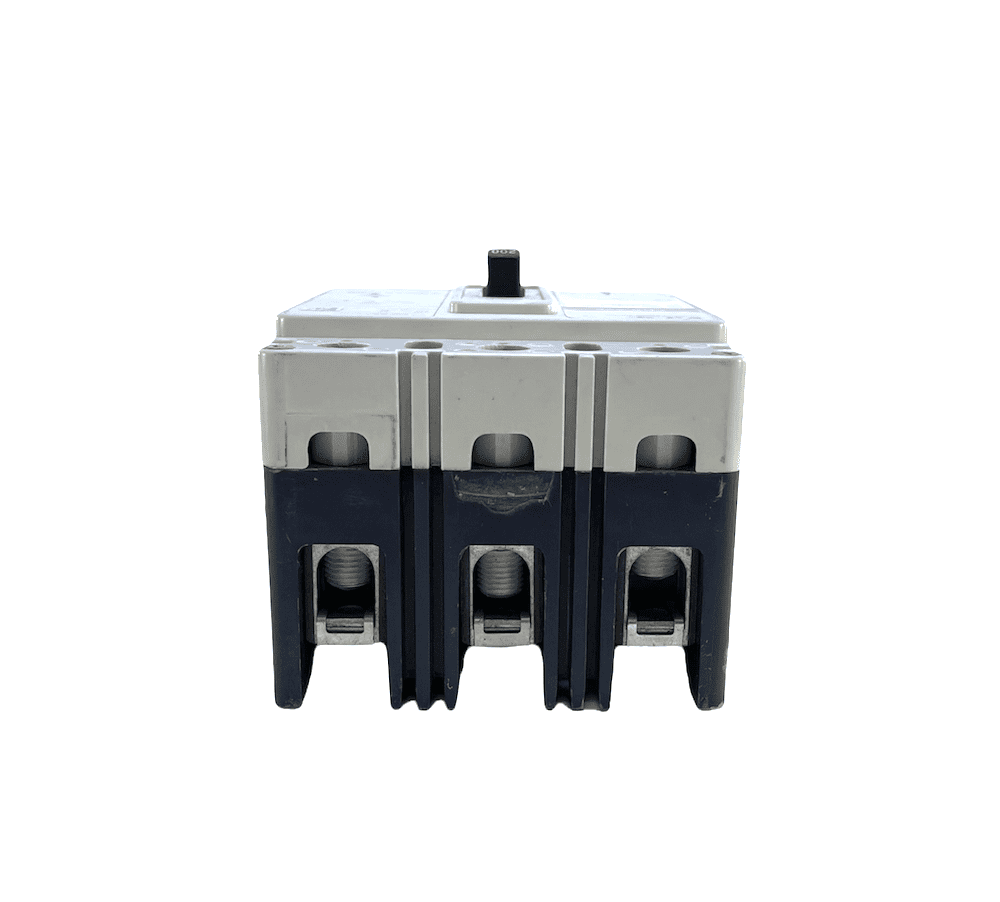

EDB3200BP10 | Eaton 200 Amp 3-Pole Type QR Circuit Breaker
- Regular price
- $864.00
- Sale price
- $864.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB3200BP10
Description
The Eaton EDB3200BP10 (Type EDB, Series C, F‑Frame) is a robust 3‑pole, 200 A thermal‑magnetic molded case circuit breaker.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Circuit Breaker
|
| Part Number | EDB3200BP10 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Frame |
Series C / F‑Frame |
| Poles | 3 Pole |
| Current Rating |
200 Amp
|
| Voltage Rating (AC) | 240 VAC |
| Voltage Rating (DC) | 125 VDC |
| Interrupting Rating | 22 kA @ 240 VAC, 10 kA @ 125 VDC |
| Trip Type | Thermal-Magnetic, Fixed LI (Long-Time/Instantaneous) |
| Mounting Style | Bolt-On |
| Line/Load Lugs | Lugs on Line Side Only |
| Weight | 4.10 lbs |
Information About EDB3200BP10
The EDB3200BP10 is part of Eaton’s Series C molded case circuit breaker family—rugged, UL-listed solutions built for dependable overcurrent protection in low-voltage power distribution systems. Designed for three-phase applications, this 3-pole, 200 A breaker features a thermal-magnetic (LI) trip unit and supports up to 240 VAC and 125 VDC. With a bolt-on mounting configuration and 22 kA interrupt rating at 240 VAC, it’s ideal for panelboards, switchgear, and industrial control panels. Widely used in both new and replacement installations, it delivers long-term performance and field-proven reliability.
Key Features:
- 3-Pole, 200 A Protection: Designed for three-phase systems, the EDB3200BP10 supports up to 200 A of continuous current, making it suitable for lighting panels, HVAC, and motor control centers.
- Thermal-Magnetic Trip Unit (LI): Offers fixed long-time and instantaneous overcurrent protection to guard against both overloads and short circuits.
- High Interrupting Capacity: Rated for 22 kA at 240 VAC and 10 kA at 125 VDC, supporting safe interruption of high fault currents.
- Bolt-On Installation: Secures easily into panelboards or switchgear with included line-side lugs; load-side connections may vary by model.
- Dual Voltage Support: Operates reliably in AC and DC systems—supporting flexibility in commercial and light industrial settings.
- Reverse Feed Capability: Allows line or load-side feeding, simplifying installation in retrofits or panel modifications.
- UL Listed & Series C Certified: Compliant with UL 489 standards and part of Eaton’s trusted Series C F-frame breaker lineup.
- Compact Form Factor: Fits into standard breaker spaces with consistent dimensions across Series C F-frame offerings.
- Same-Day Shipping Available: Commonly stocked by suppliers with expedited shipping and 24-hour emergency fulfillment options.
The Eaton EDB3200BP10 circuit breaker delivers robust 3-pole protection, high interrupt capacity, and industry-standard compliance—making it a trusted choice for contractors, OEMs, and facility managers seeking safe, field-proven circuit protection in new builds and retrofit applications alike.
