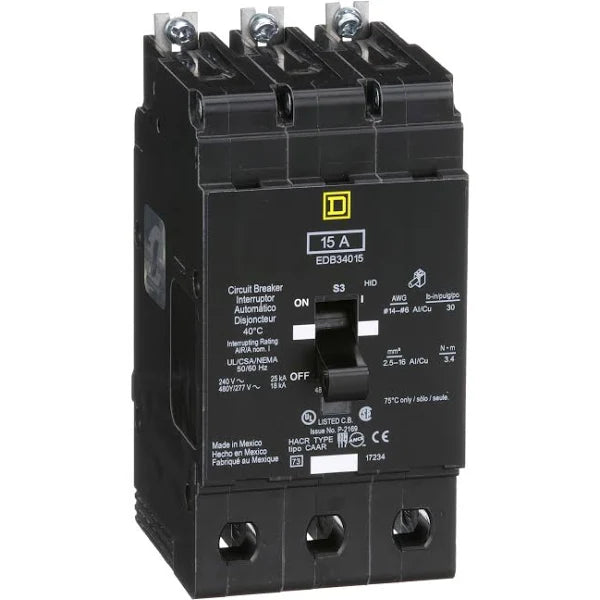

EDB34015 | Square D 15A 3-Pole 480V E-Frame Bolt-On Thermal Magnetic Circuit Breaker
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EDB34015
Description
The Square D EDB34015 is a 15-amp, 3-pole molded case circuit breaker designed for 277/480V three-phase systems. It features a thermal-magnetic trip unit that provides Long-Time and Instantaneous protection against overloads and short circuits. With an 18 kA interrupting rating at 480V and bolt-on mounting, the EDB34015 is suited for use in commercial lighting and power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | EDB34015 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Type | EDB |
| Frame | E-Frame |
| Amperage Rating | 15 A |
| Poles | 3 |
| Phase | 3-Phase |
| Voltage Rating | 277/480 VAC |
| AIC Rating | 18 kA @ 480V |
| Protection | Thermal Magnetic |
| Trip Type | Thermal-Magnetic |
| Functions | LI – Long-Time, Instantaneous |
| Connection Type | Bolt-On |
| Terminal Type | Aluminum lugs |
| Wire Size Range | AWG 12–6 (Al), AWG 14–6 (Cu) |
| Operating Temperature | 40°C calibrated |
| HACR Rated | Yes |
| HID Rated | Yes |
| Dimensions | 5.66" H × 2.94" W × 4.05" D |
| Application | NF panelboards, commercial lighting & power distribution |
Information About EDB34015
The EDB34015 is part of the Square D E-Frame series used primarily in NF lighting panelboards, offering reliable thermal-magnetic protection for 480Y/277V systems. The breaker uses a bolt-on connection for secure integration and includes trip indication to show when the device has interrupted a fault. Rated at 15 amps with an 18 kA interrupting capacity at 480V, it supports HACR and HID applications and complies with UL and CSA requirements. Built with aluminum lugs and calibrated for 40°C operation, the breaker provides consistent performance in commercial and industrial electrical distribution environments.
Key Features
- 15A molded case protection: Suitable for lighting and branch-circuit applications.
- 3-pole E-Frame design: Supports three-phase 277/480V systems.
- Thermal-magnetic trip: Provides stable Long-Time and Instantaneous protection.
- 18 kA interrupt rating at 480V: Meets standard fault protection requirements.
- Bolt-on mounting: Ensures secure installation in NF panelboards.
- Trip indicator: Visually confirms breaker trip status.
- HACR and HID rated: Approved for heating/air conditioning and high-intensity discharge lighting loads.
- Aluminum lugs included: Accepts AWG 12–6 (Al) and AWG 14–6 (Cu).
The EDB34015 delivers the reliability and precision required for Square D E-Frame lighting and power distribution systems.
