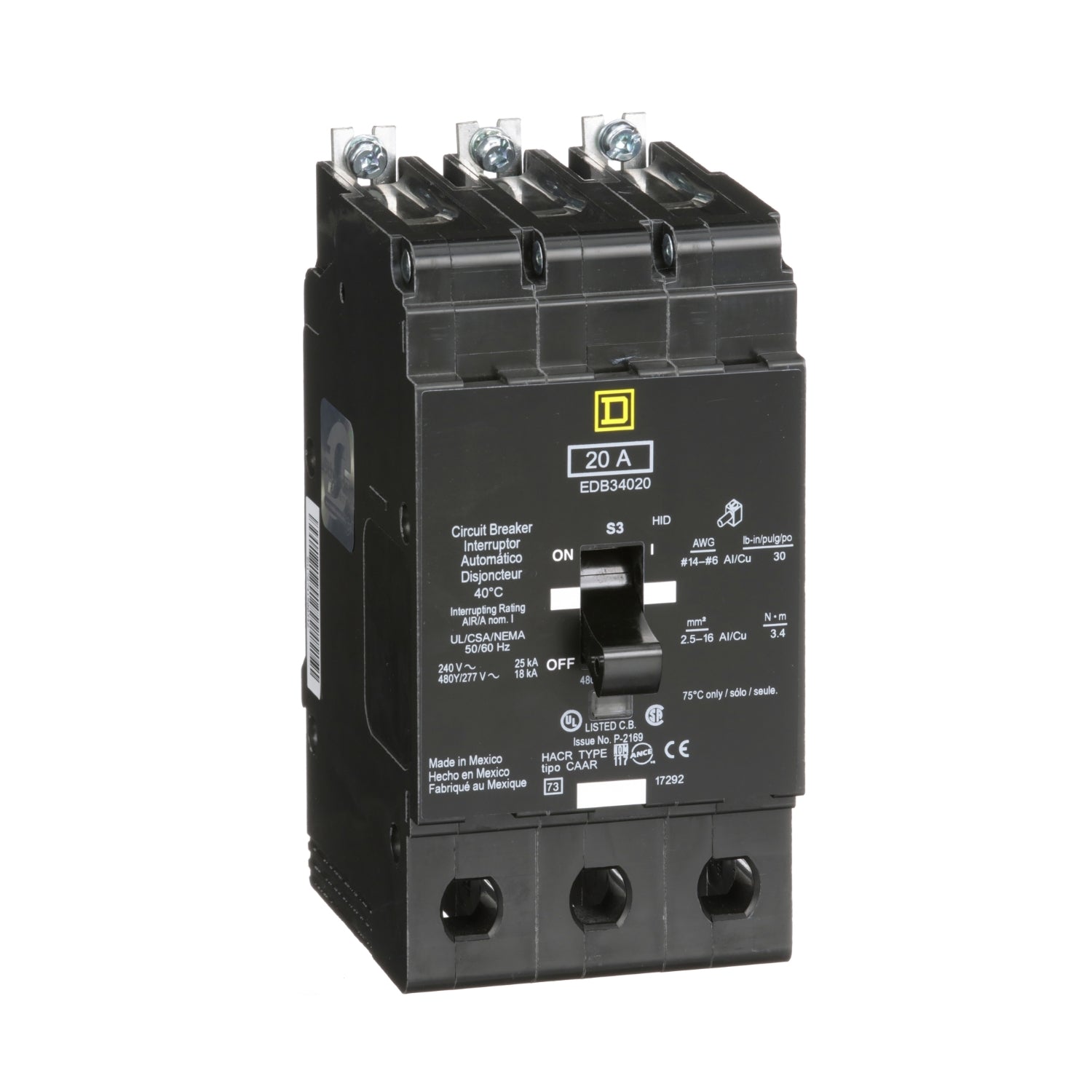

Product Description P/N: EDB34020
Description
The EDB34020 is a mini circuit breaker belonging to the E-Frame series, featuring a 3-pole configuration with a current rating of 20A. Specifically designed for use in lighting panelboard applications, E-Frame breakers are renowned for their effectiveness and reliability. They are tailored to Square D NF Panelboards and offer a wide array of robust features.
Primarily intended to provide superior overload and short circuit protection, E-Frame breakers are equipped with a thermal-magnetic trip unit and a signal indicator to alert users of trip occurrences. This specific breaker is HID rated and HACR rated, ensuring suitability for high intensity discharge applications.
Technical Specifications
|
Part # |
EDB34020 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EDB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A |
|
Line Rated Current |
20 A |
|
Maximum operating voltage |
480Y/277 V AC |
|
Circuit breaker application |
HID rated |
|
|
HACR rated |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
270 A |
|
Local signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
3 |
|
Number of spaces |
3 |
|
Number of spaces required |
3 |
|
Product destination |
NF panelboard |
|
Protection Type |
Short-circuit |
|
|
Overload |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
D |
|
Tightening torque |
30.09 lbf.in (3.4 N.m) |
|
|
0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb(US) (1.81 kg) |
Information About EDB34020
The EDB34020 is a mini circuit breaker falling under the E-Frame series, featuring a 3-pole configuration with a current rating of 20A. Specifically designed for lighting panelboard applications, E-Frame breakers are renowned for their effectiveness and reliability. Tailored for Square D NF Panelboards, they offer a wide variety of robust features aimed at providing superior overload and short circuit protection.
All E-Frame breakers are equipped with a thermal-magnetic trip unit and a signal indicator to alert users in the event of a trip occurrence. Additionally, this specific breaker is HID rated and HACR rated, ensuring suitability for high intensity discharge applications.
Operating at an operating voltage of 480Y/277 VAC, the EDB34020 boasts a maximum interrupt rating of 25 kA at 120 VAC. It has a hold current of 270A, ensuring that the breaker can be held to trip reliably, and a trip current of 875A, which is the current value at which the breaker is guaranteed to trip.
Numerous accessories are available for this breaker, enhancing its versatility and adaptability to specific application requirements. Additionally, the breaker is calibrated for operation at 40 degrees Celsius, ensuring reliable performance under various operating conditions.
