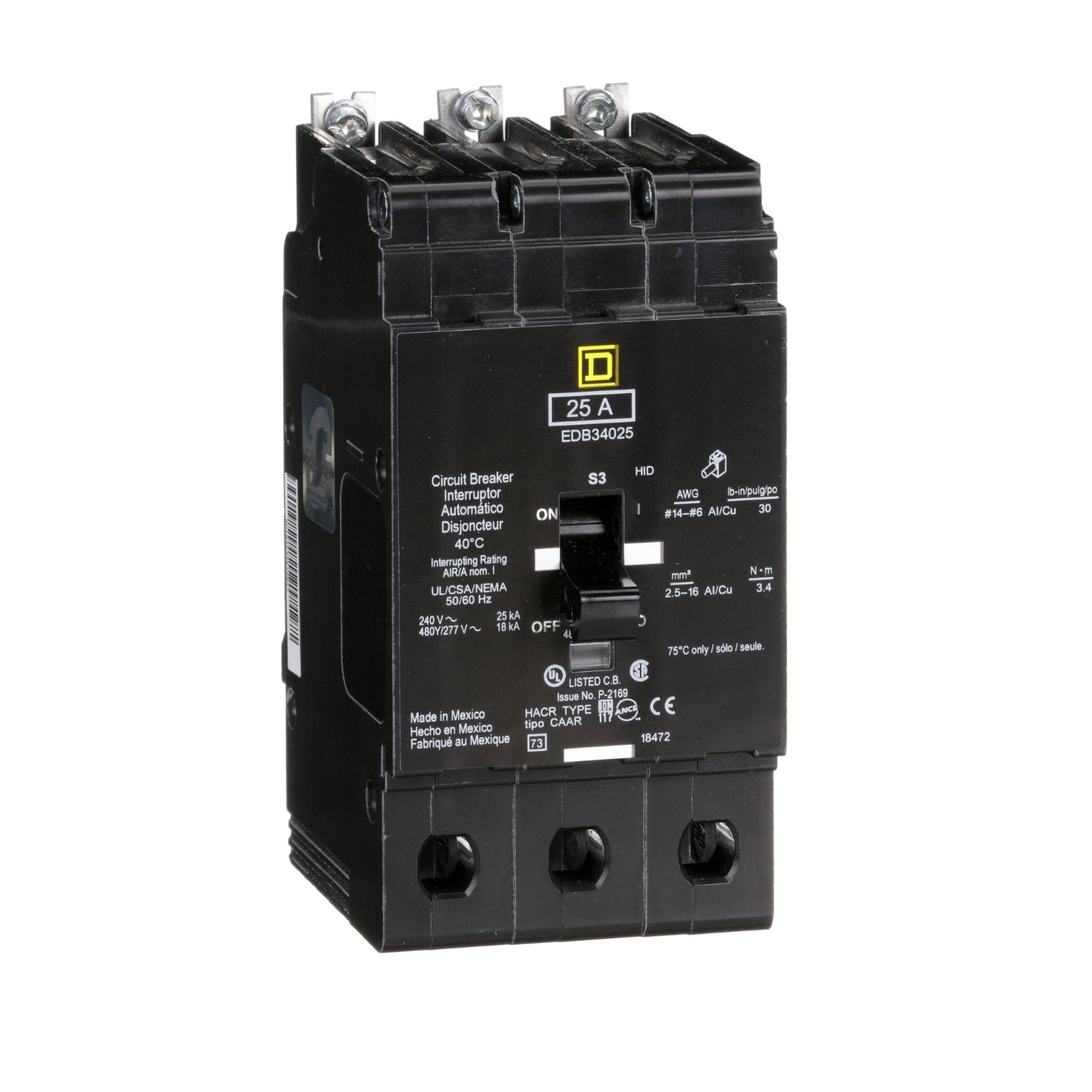

EDB34025 | Schneider Electric Mini Circuit Breaker
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: EDB34025
Description
The EDB34025 is a Mini Circuit Breaker from the E-Frame series, engineered for use in Square D NF Panelboards, renowned for their effectiveness and reliability. Specifically designed for lighting panelboard applications, these breakers offer robust features tailored for superior overload and short circuit protection.
Equipped with a thermal-magnetic trip unit, all E-Frame breakers feature a signal indicator that promptly notifies users of any tripping occurrences. Additionally, this specific E-Frame breaker is HID rated and HACR rated, ensuring compatibility with high-intensity discharge applications.
Operating at 25A and featuring 3 poles, this breaker operates at an operating voltage of 480Y/277 VAC, providing reliable protection for various electrical systems. With a maximum interrupt rating of 25 kA at 120 VAC, it ensures efficient protection against short circuits.
Technical Specifications
|
Part # |
EDB34025 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EDB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A |
|
Line Rated Current |
25 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
Electrical Connection |
Lugs aluminium |
|
Holding Current |
270 A |
|
Local signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of Poles |
3 |
|
Number of Spaces |
3 |
|
Number of Spaces Required |
3 |
|
Product Destination |
NF panelboard |
|
Protection Type |
Overload |
|
|
Short-circuit |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
D |
|
Tightening torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb(US) (1.81 kg) |
Information About EDB34025
The EDB34025 is a Mini Circuit Breaker from the E-Frame series, designed for use in lighting panelboard circuits, particularly Square D NF Panelboards. Renowned for their effectiveness and reliability, E-Frame breakers offer a range of robust features tailored to provide superior overload and short circuit protection.
Equipped with a thermal-magnetic trip unit and a signal indicator, E-Frame breakers promptly notify users of any tripping occurrences. Additionally, they boast HID and HACR ratings, ensuring compatibility with various applications.
This specific E-Frame breaker is rated at 25A and features three poles, operating at an voltage of 480Y/277 VAC. It provides a maximum interrupt rating of 25 kA at 120 VAC. With a hold current of 270A, the breaker is designed to trip reliably when the current exceeds 875A.
The breaker is calibrated for operation at 40 degrees Celsius and is UL Listed for High Intensity Discharge applications.
