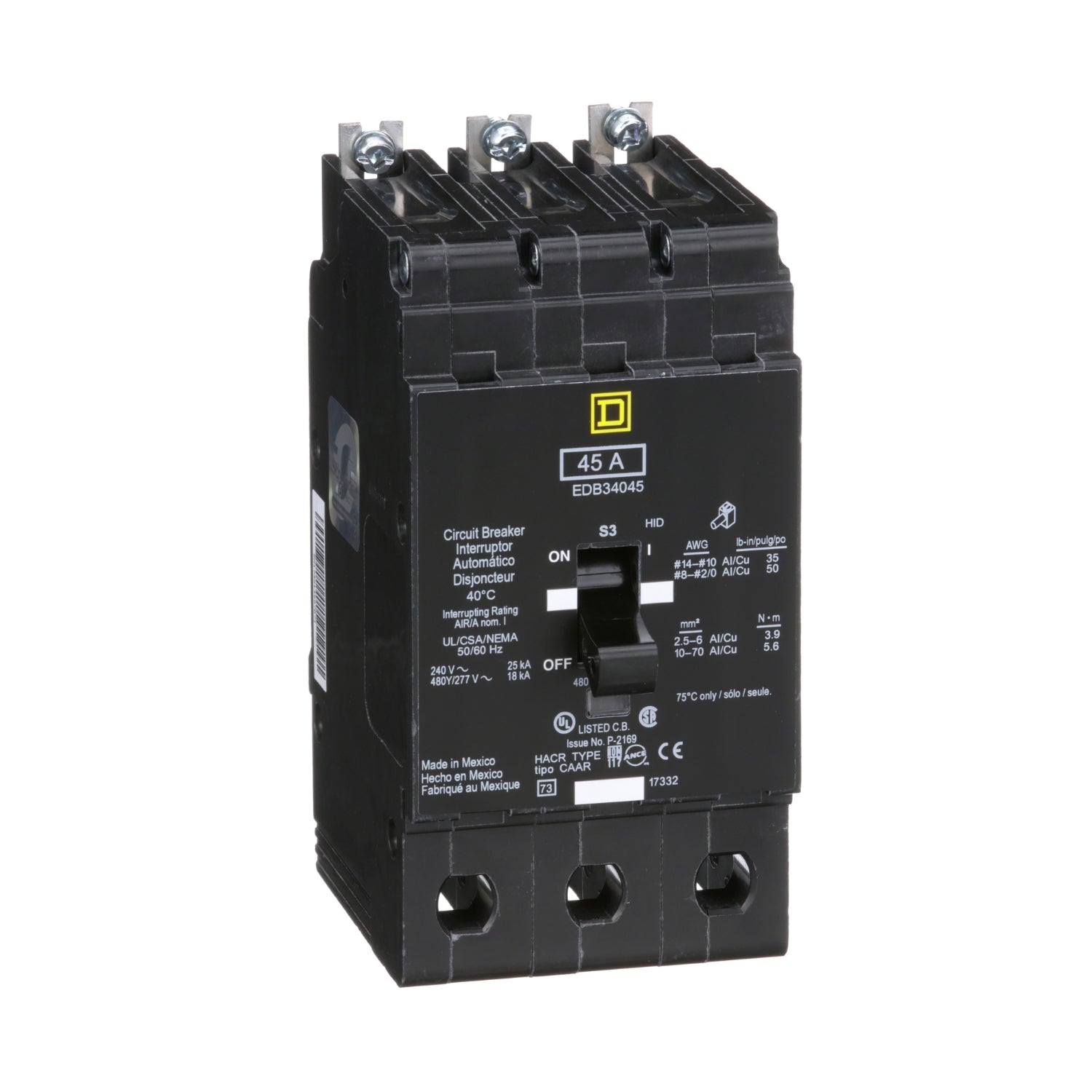

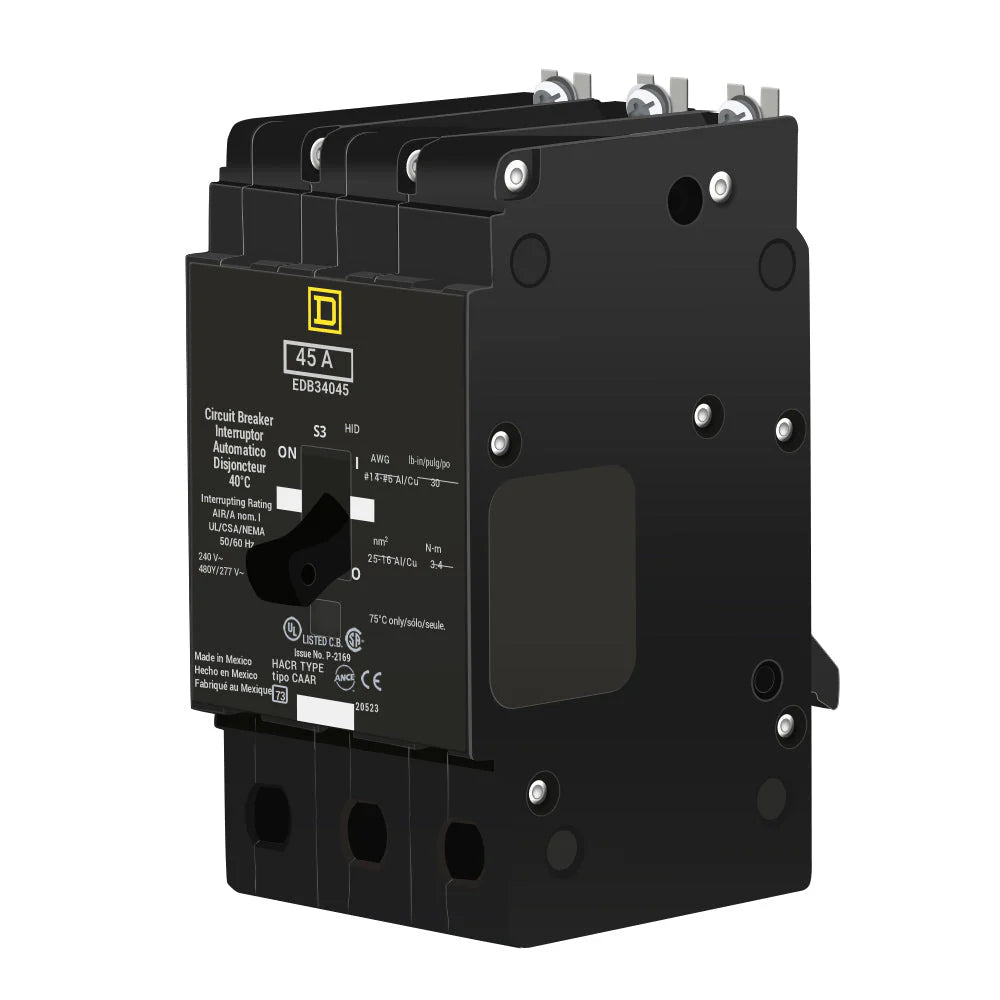

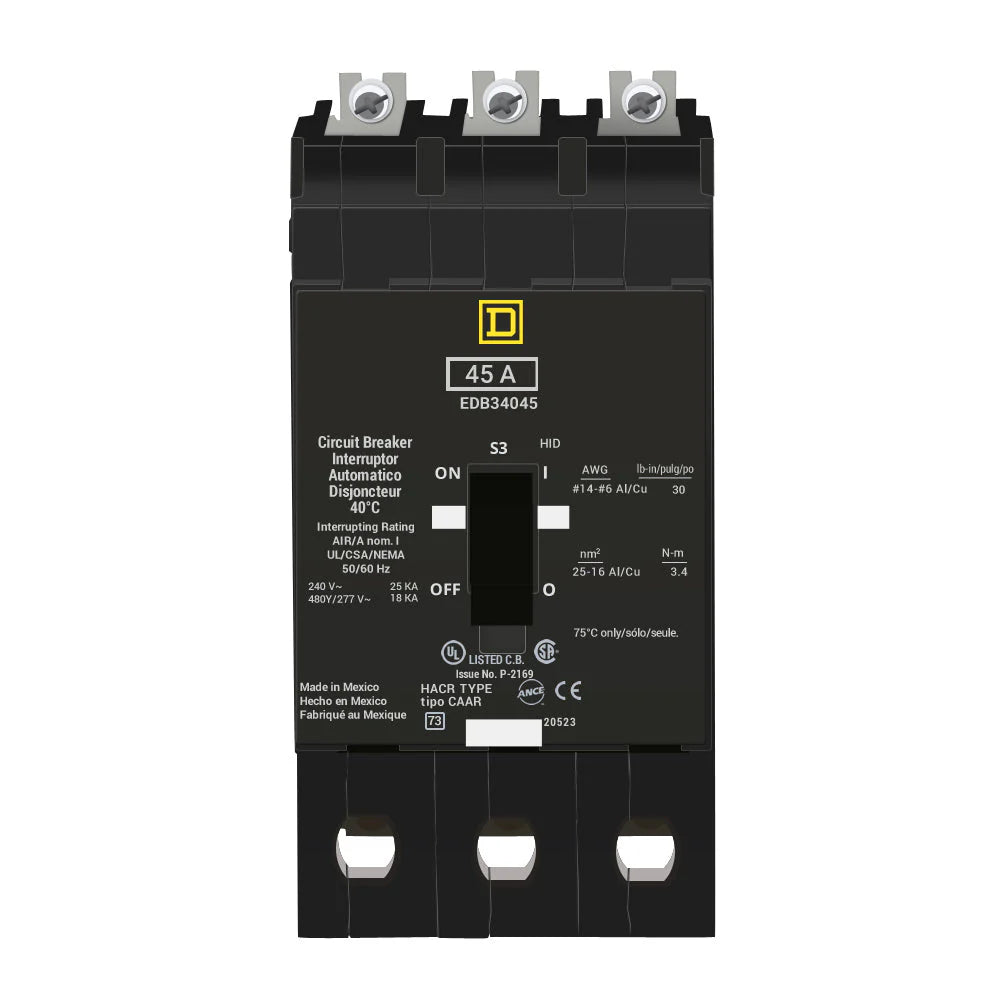

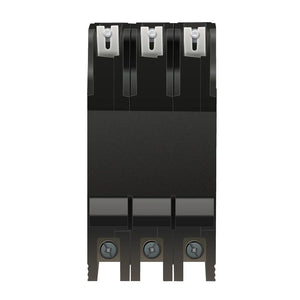

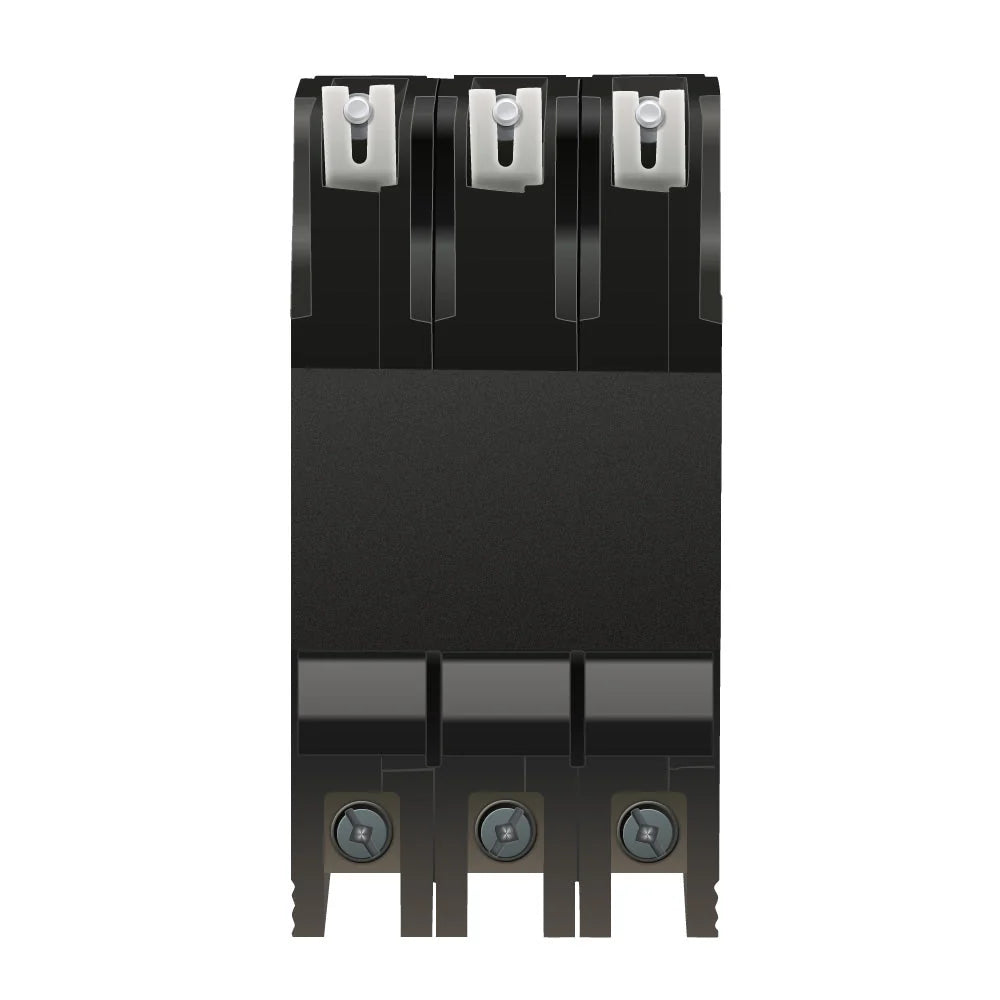

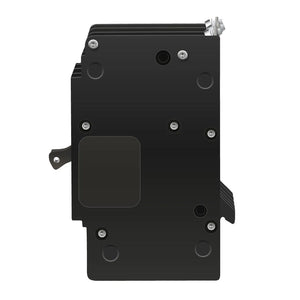

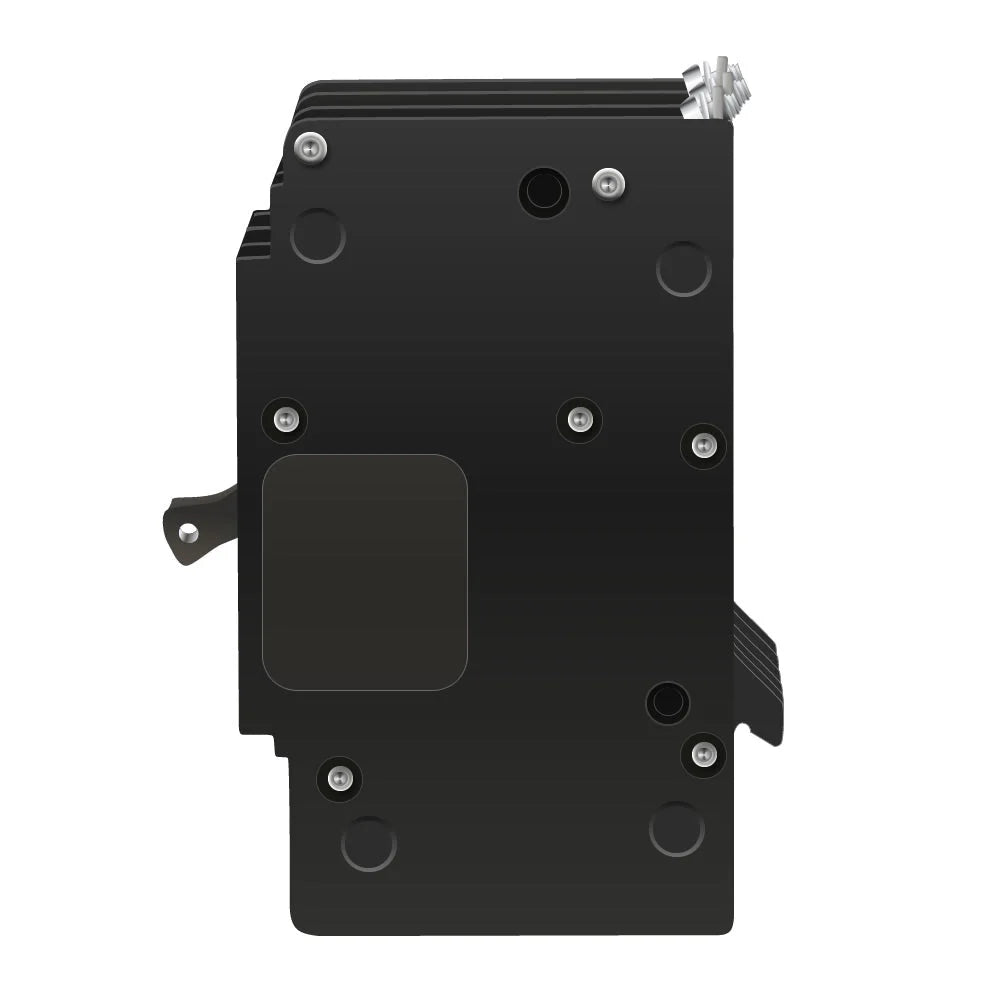

EDB34045 | Schneider Electric Mini Circuit Breaker
- Regular price
- $397.00
- Sale price
- $397.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB34045
Description
The EDB34045 is a three-pole mini circuit breaker from Square D's E-Frame series, specifically designed for use in Square D NF Panelboards. Known for its reliability and effectiveness, E-Frame breakers offer robust features tailored for lighting panelboard applications, providing superior overload and short circuit protection.
Equipped with a thermal-magnetic trip unit, the EDB34045 includes a trip signal indicator to alert users of circuit interruptions. This breaker is HID (High Intensity Discharge) rated and HACR (Heating, Air Conditioning, and Refrigeration) rated, suitable for diverse electrical environments.
Technical Specifications
|
Part # |
EDB34045 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EDB |
|
Module type |
E-Frame |
|
Trip unit rating |
1800 A |
|
Line Rated Current |
45 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
Electrical Connection |
Lugs, aluminum |
|
Holding Current |
630 A |
|
Local Signaling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of Poles |
3 |
|
Number of Spaces |
3 |
|
Number of Spaces Required |
3 |
|
Product Destination |
NF panelboard |
|
Trip Unit Technology |
Thermal-magnetic |
|
Breaking Capacity Code |
D |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb (1.81 kg) |
Information About EDB34045
The EDB34045 mini circuit breaker from Square D's E-Frame series is designed specifically for use in lighting panelboard applications, particularly in Square D NF Panelboards, where robust performance and reliability are critical. This breaker is engineered to provide superior overload and short circuit protection, making it suitable for demanding electrical environments.
Key features of the E-Frame breaker include a thermal-magnetic trip unit, which combines thermal overcurrent protection with magnetic short circuit protection. It includes a signal indicator that visually signals when a trip occurs, aiding in quick identification and troubleshooting. The breaker is HID (High Intensity Discharge) rated and HACR (Heating, Air Conditioning, and Refrigeration) rated, ensuring its suitability across a wide range of applications.
Specifically, the EDB34045 breaker is a 45A, 3-pole device with an operating voltage of 480Y/277 VAC. It offers a maximum interrupt rating of 25 kA at 120 VAC, providing robust protection against short circuits. The breaker features a hold current rating of 630A, indicating the maximum current level at which the breaker will not trip, and a trip current rating of 1800A, which is the threshold at which the breaker is guaranteed to trip to protect the circuit.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
