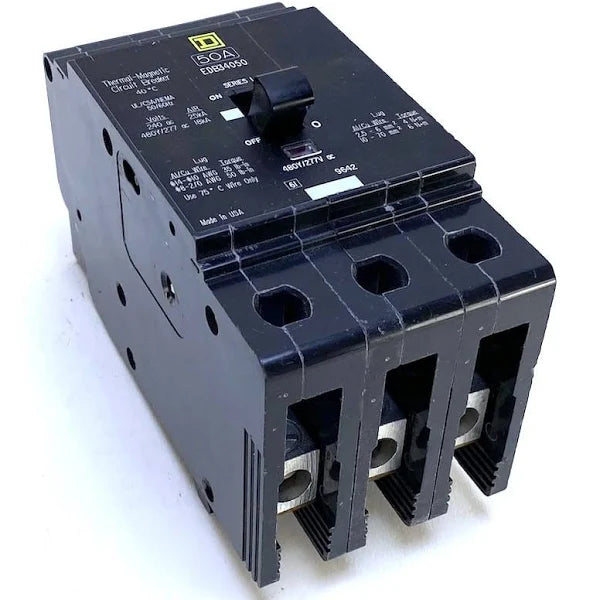

EDB34050 | Schneider Electric Square D E-Frame Circuit Breaker, 50A, 3-Pole, 480Y/277VAC, 18kA, Bolt-On
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EDB34050
Description
The Schneider Electric EDB34050 is a 50A E-Frame molded case circuit breaker designed for lighting and branch distribution circuits in Square D NF panelboards. Rated for 480Y/277 VAC with an 18kA interrupting capacity, it delivers dependable thermal-magnetic protection for commercial applications. Its bolt-on configuration and integrated trip indicator ensure secure installation and clear status visibility.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | EDB34050 |
| Subcategory | Miniature E-Frame Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 A |
| Poles | 3 |
| Voltage Rating | 480Y/277 VAC, 240 VAC |
| Interrupt Rating | 18 kA @ 480Y/277 V |
| Interrupt Rating (Additional) | 25 kA @ 120/240 V |
| Trip Technology | Thermal Magnetic |
| Trip Indicator | Yes |
| HID / HACR Rating | Yes |
| Mounting Type | Bolt-On |
| Conductor Range (Aluminum) | AWG 12–2/0 |
| Conductor Range (Copper) | AWG 14–2/0 |
| Hold Current | 630 A |
| Trip Current | 1800 A |
| Application | Lighting Panels, HVAC, Commercial Branch Circuits |
Information About EDB34050
The EDB34050 is part of the Square D miniature E-Frame breaker family, built for compatibility with NF lighting panelboards and three-phase distribution systems. Featuring a 3-pole design and a 50-amp rating, it provides reliable circuit protection at 480Y/277 VAC and holds both UL and CSA certifications. The breaker includes a thermal-magnetic trip unit and a signal indicator to support rapid identification of trip events. With HID and HACR ratings, and aluminum lugs accommodating conductor sizes up to 2/0 AWG, the EDB34050 ensures versatile applicability across lighting, HVAC, and commercial distribution systems.
Key Features
- E-Frame miniature design: Optimized for Square D NF lighting and branch distribution panelboards.
- 50A, 3-pole configuration: Supports three-phase circuit protection for moderate load applications.
- 480Y/277 VAC rating: Suitable for commercial and industrial lighting systems.
- 18 kA interrupting capacity: Provides strong short-circuit performance at 480V.
- Thermal-magnetic trip unit: Ensures accurate overload and fault response.
- Trip indicator: Offers clear visual identification of breaker status.
- HID & HACR rated: Approved for lighting, motor, and HVAC applications.
- Bolt-on mounting: Delivers secure installation in NF panelboards.
The EDB34050 delivers the reliability and precision required for lighting, HVAC, and branch distribution circuits in commercial electrical systems.
