EDB34070 | Schneider Electric Mini Circuit Breaker
- Regular price
- $374.00
- Sale price
- $374.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

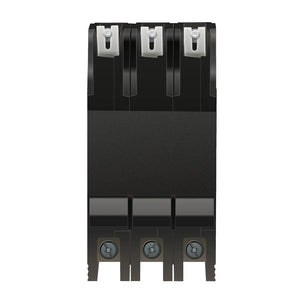

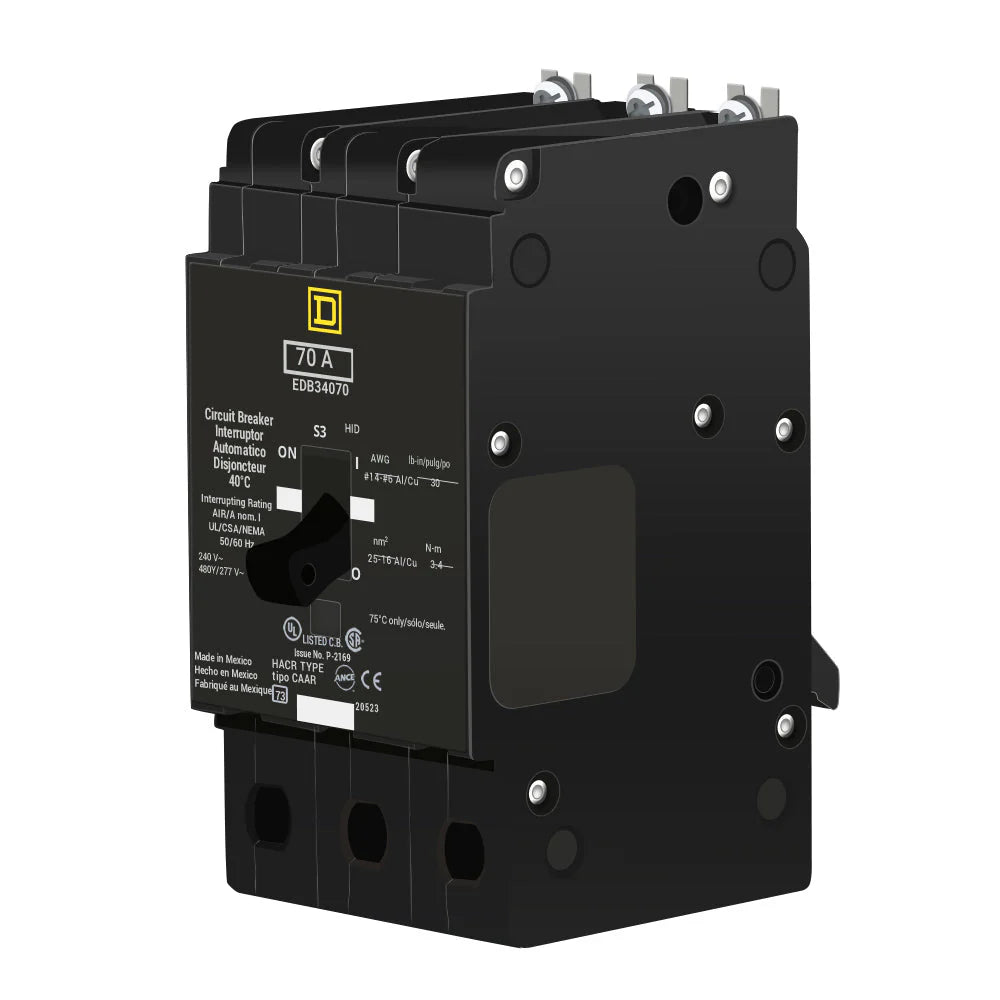

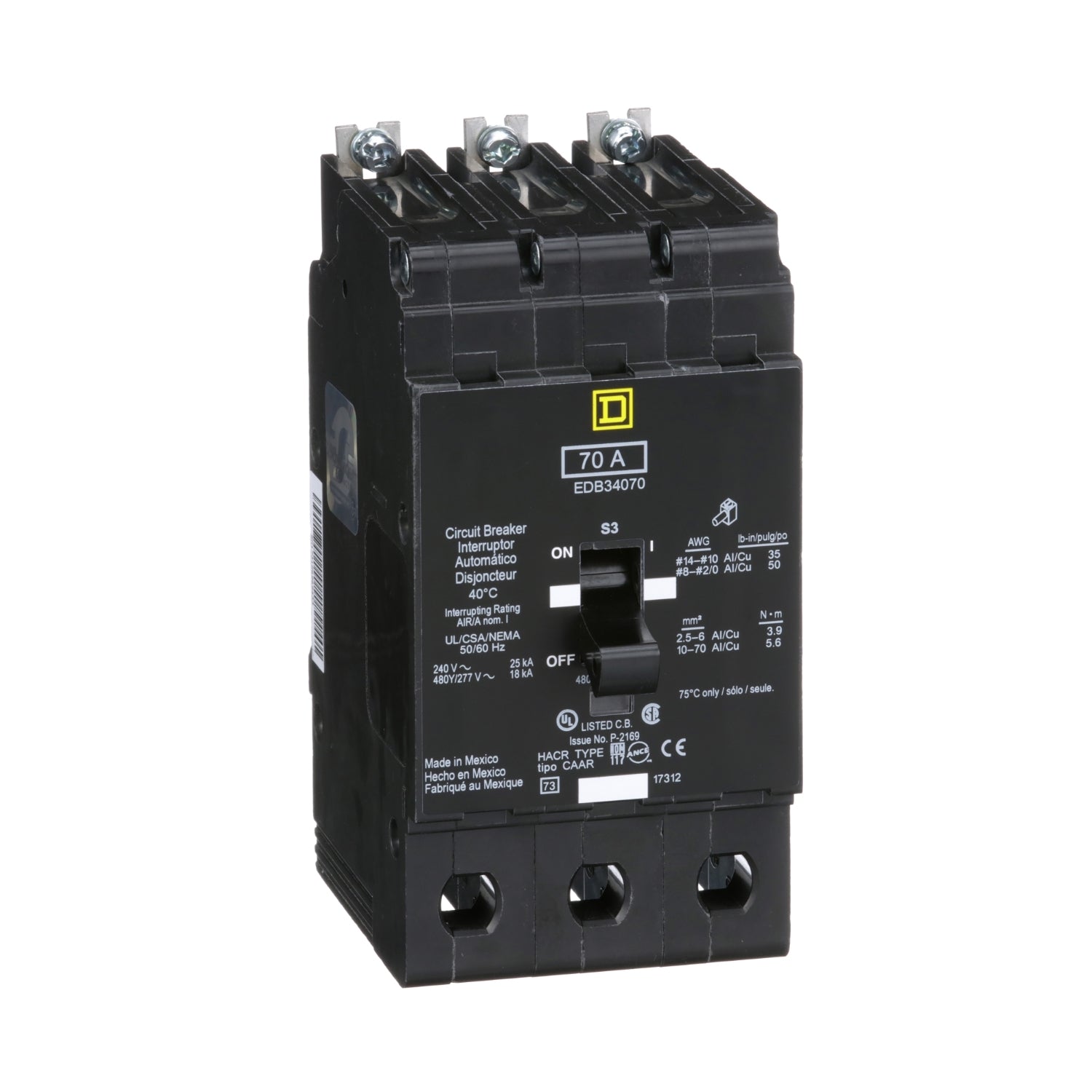

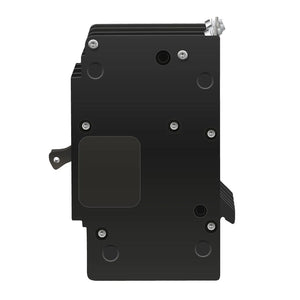

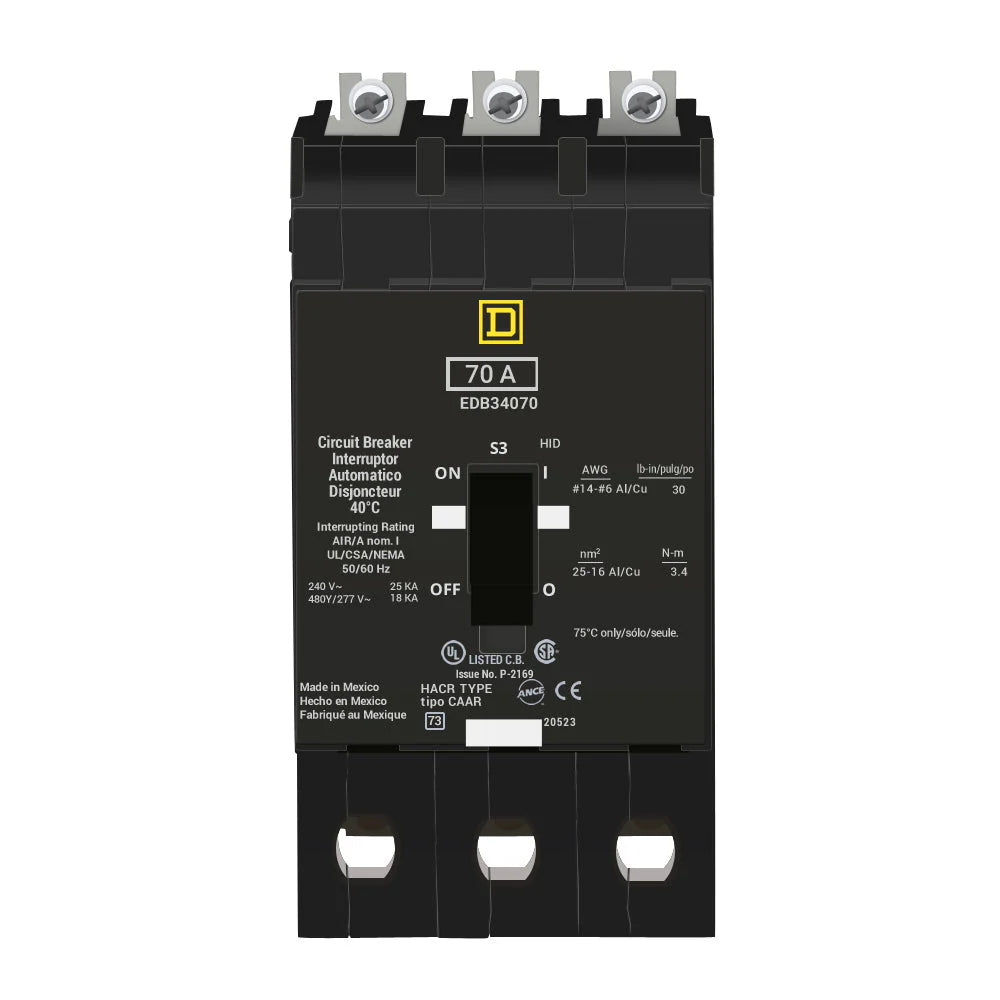

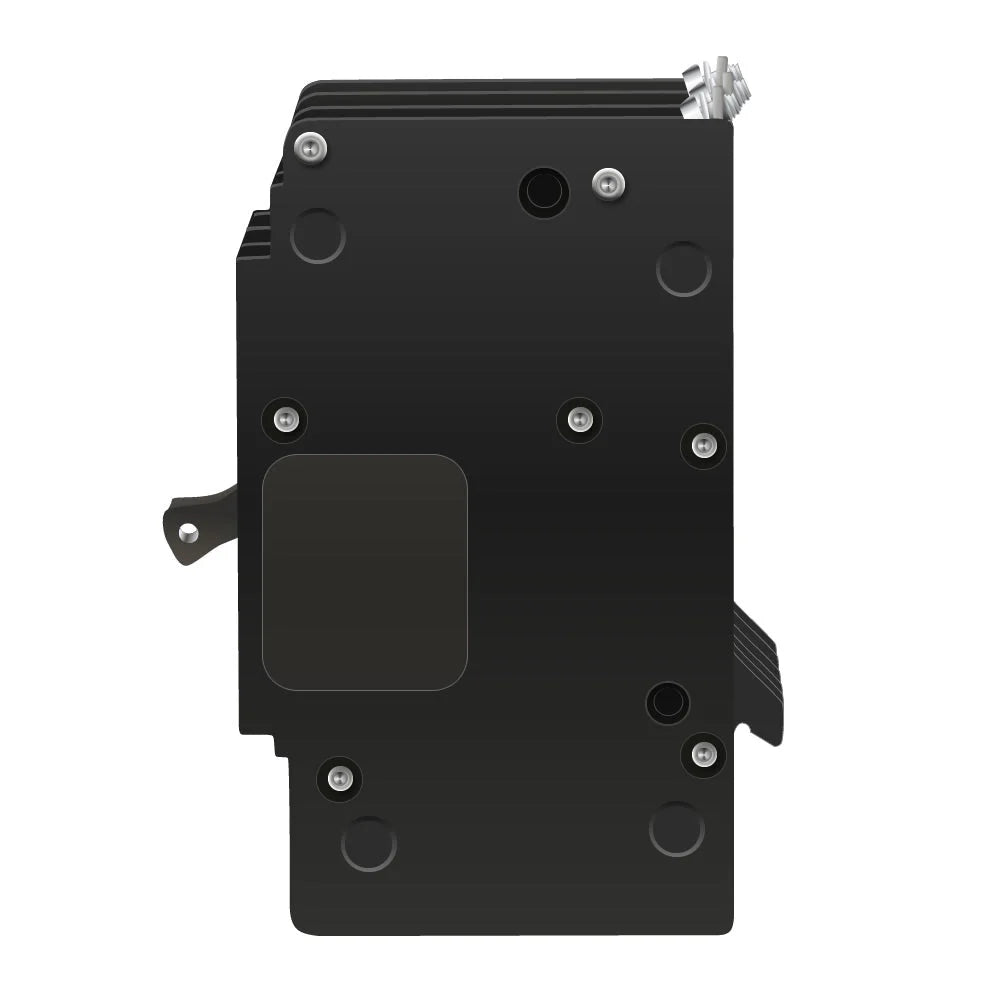

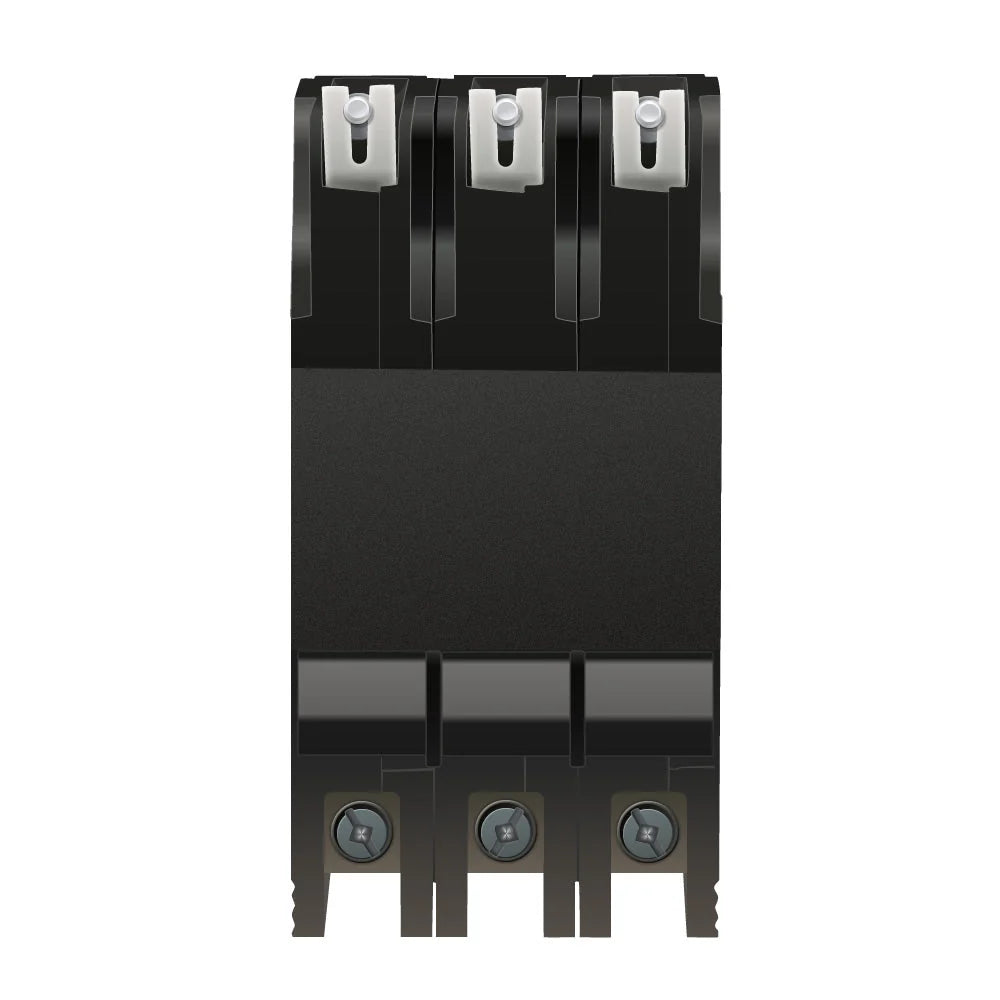

Product Description P/N: EDB34070
Description
The EDB34070 is a mini circuit breaker from the E-Frame series, designed for use in Square D NF panelboards. This circuit breaker is rated for 70A and operates with a voltage of 480Y/277 VAC. It features a 3-pole configuration and offers a maximum interrupting capacity of 25 kA at 120 VAC. The E-Frame breaker includes a thermal-magnetic trip unit to provide reliable overload and short circuit protection.
Technical Specifications
|
Part # |
EDB34070 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EDB |
|
Module type |
E-Frame |
|
Trip unit rating |
1800 A |
|
Line Rated Current |
70 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
Circuit Breaker Application |
HACR rated |
|
Electrical Connection |
Lugs, aluminum |
|
Holding Current |
630 A |
|
Local Signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of Poles |
3 |
|
Number of Spaces |
3 |
|
Number of Spaces Required |
3 |
|
Product Destination |
NF panelboard |
|
Protection Type |
Overload, Short-circuit |
|
Trip Unit Technology |
Thermal-magnetic |
|
Breaking Capacity Code |
D |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb (1.81 kg) |
Information About EDB34070
The EDB34070 Mini Circuit Breaker, part of the E-Frame series, is designed for use in Square D NF Panelboards, particularly suited for lighting applications. Known for its robust features and reliability, the E-Frame breaker ensures superior protection against both overload and short circuit conditions. Equipped with a thermal-magnetic trip unit, it includes a trip indicator that signals when a trip event occurs.
This specific E-Frame breaker is rated at 70A with a three-pole configuration, operating at an voltage of 480Y/277 VAC. It boasts a maximum interrupt rating of 25 kA at 120 VAC. The breaker features a hold current capacity of 630A, ensuring it trips reliably when necessary, with a trip current set at 1800A, indicating the guaranteed tripping threshold.
Engineered to operate effectively at up to 40 degrees Celsius, the EDB34070 breaker is HACR rated, emphasizing its suitability for diverse electrical environments. Its bolt-on mounting configuration facilitates secure installation, enhancing operational safety within panelboard systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
