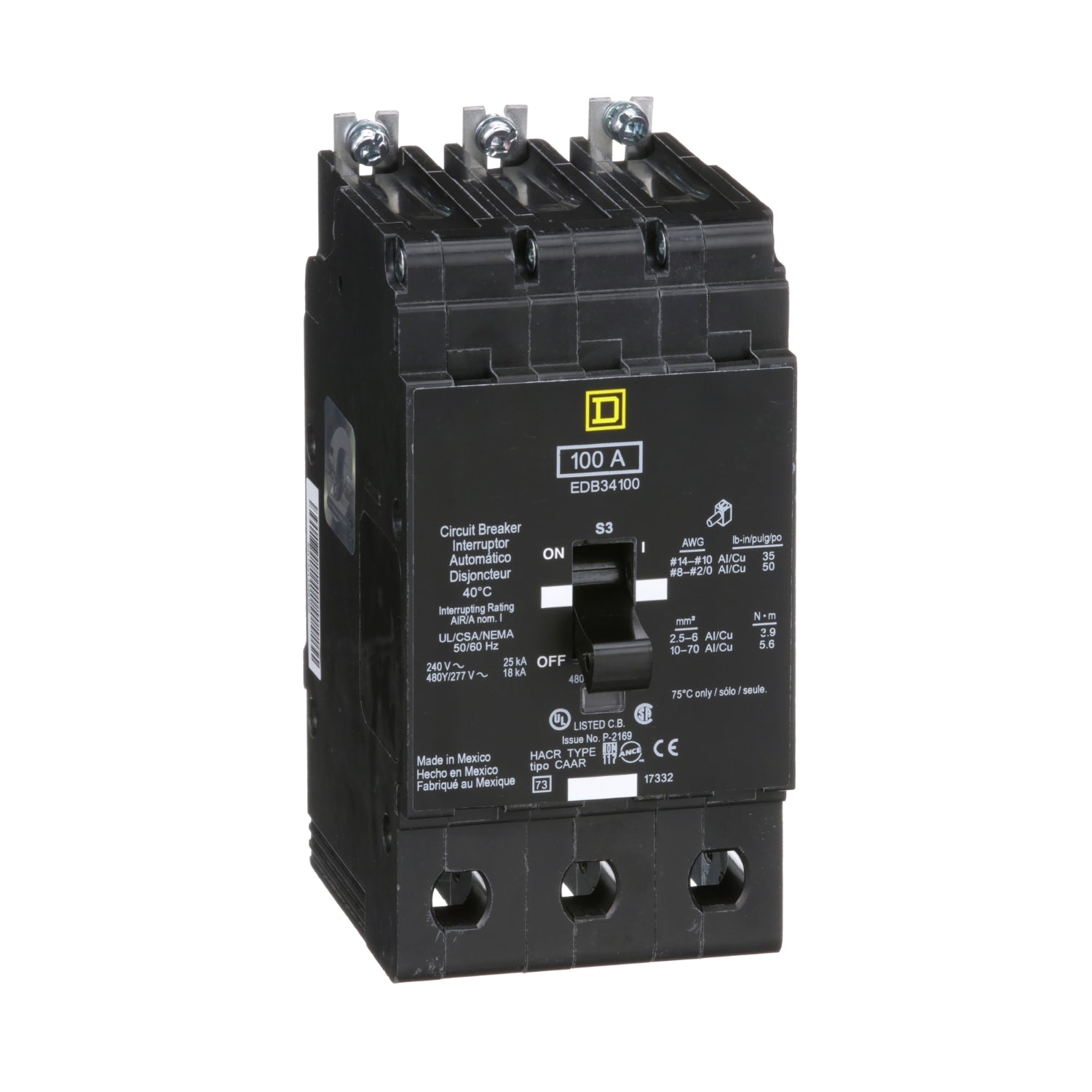

EDB34100 | Schneider Electric EDB Series 3-Pole 100A 480V Thermal Magnetic Circuit Breaker
- Regular price
- $279.00
- Sale price
- $279.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDB34100
Description
The Schneider Electric EDB34100 is a molded case circuit breaker designed for three-phase electrical distribution systems requiring dependable overcurrent protection. Rated for 277/480V operation with a 100-amp capacity, it provides stable performance in commercial and industrial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | EDB34100 |
| Subcategory | Molded Case Circuit Breaker |
| Family | EDB Series |
| Type | EDB |
| Voltage | 277/480 V |
| Amperage | 100 A |
| Protection | Thermal Magnetic |
| AIC Rating | 18 kA @ 480 V |
| Connection | Bolt-On |
| Poles | 3 |
| Phase | 3 |
| Functions | LI – Long-Time and Instantaneous |
| Interrupting Capacity | Standard |
| Operating Temperature | 40°C |
| Trip Unit Type | Thermal Magnetic |
| Application | Industrial and commercial electrical distribution |
| Mounting Style | Bolt-On Molded Case |
| Breaker Type | Molded Case Circuit Breaker |
Information About EDB34100
The EDB34100 is a molded case circuit breaker developed for Schneider Electric’s EDB Series, offering reliable circuit protection for industrial and commercial three-phase systems. Its design supports operation at 277/480 volts with a 100-amp rating, making it suitable for a broad range of distribution equipment. The breaker incorporates a bolt-on mounting configuration, ensuring secure attachment within compatible panelboards and switchboards. With LI trip functions, the EDB34100 provides both long-time overload response and instantaneous fault interruption, contributing to dependable system protection.
Key Features
- Three-pole configuration: Supports balanced protection in three-phase distribution systems.
- 100-amp capacity: Handles medium-duty electrical loads in commercial and industrial environments.
- Thermal magnetic trip: Provides overload and short-circuit protection in a single molded case unit.
- 18 kA interrupt rating: Suitable for systems requiring standard interrupting capacity at 480 volts.
- Bolt-on mounting: Ensures a secure mechanical and electrical connection for stable installation.
- LI trip functions: Offers Long-Time and Instantaneous trip characteristics for coordinated protection.
- Compact molded case design: Fits efficiently into EDB-compatible panelboards and distribution assemblies.
- Engineered for 277/480V: Supports common facility power distribution configurations.
The EDB34100 delivers the reliability and precision required for protecting three-phase electrical systems in demanding industrial and commercial applications.
