Product Description P/N: EDB34125

Description / Specifications

Description

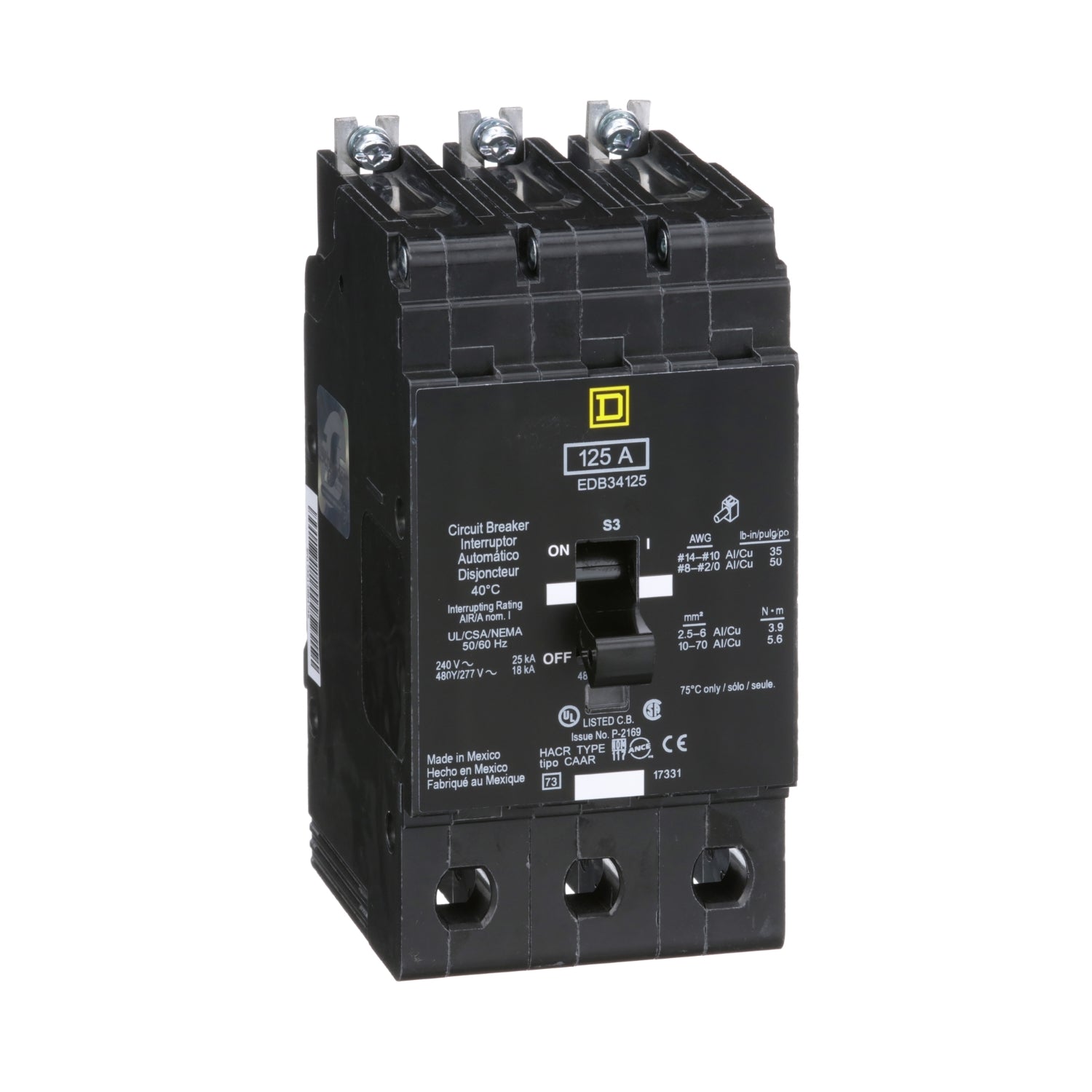

The EDB34125 is a Mini Circuit Breaker belonging to the E-Frame series, designed for use in Lighting Panelboard applications, particularly Square D NF Panelboards. This 3-pole bolt-on breaker is rated at 125A and operates at a system voltage of 480Y/277VAC. It is UL Listed and CSA rated, ensuring compliance with safety standards.

Equipped with a thermal-magnetic trip unit and a signal indicator for trip indication, this breaker offers robust protection. It is HACR rated and features aluminum lugs with a terminal lug rating of AWG 12 to AWG 2/0 for aluminum and AWG 14 to AWG 2/0 for copper.

Tested for breaking capacity at various voltages, the E-Frame breaker has a capacity of 18 kA at 480Y/277VAC and 25 kA at 120/240VAC. With a hold current of 1000A and a trip current of 2300A, it ensures reliable operation under different load conditions.



Technical Specifications

Part #

EDB34125

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range of Product

125 A Frame EDB-EGB-EJB

Product or Component Type

Miniature circuit-breaker

Device Short Name

EDB

Module Type

E-Frame

Trip Unit Rating

2300 A

Line Rated Current

125 A

Maximum Operating Voltage

480Y/277 V AC

AWG Gauge (Aluminium)

AWG 12...AWG 2/0

AWG Gauge (Copper)

AWG 14...AWG 2/0

Breaking Capacity

18 kA 277 V AC

Circuit Breaker Application

HACR rated

Electrical Connection

Lugs aluminium

Holding Current

1000 A

Local Signaling

Trip indicator

Mounting Mode

Bolt-on

Number of Poles

3

Number of Spaces

3

Number of Spaces Required

3

Product Destination

NF panelboard

Trip Unit Technology

Thermal-magnetic

Breaking Capacity Code

D

Height

5.66 in (143.76 mm)

Width

2.94 in (74.68 mm)

Depth

4.05 in (102.87 mm)

Net Weight

4 lb(US) (1.81 kg)

Product Certifications

cULus

Ambient Air Temperature (Operation)

104 °F (40 °C)



Information About EDB34125

The EDB34125 Mini Circuit Breaker, belonging to the E-Frame series, is a lighting panelboard circuit breaker known for its proven effectiveness and reliability, designed specifically for use in Square D NF Panelboards. This device is a 3-pole bolt-on breaker with a rating of 125 A at a system voltage of 480Y/277 VAC. It holds UL Listing and CSA ratings.

Equipped with a thermal-magnetic trip unit and a signal indicator, this E-Frame breaker promptly notifies users of any trips that occur. It holds an HACR rating for enhanced safety and performance. The breaker features aluminium lugs with a terminal lug rating of AWG 12...AWG 2/0 (aluminium) and AWG 14...AWG 2/0 (copper), ensuring secure connections.

The breaking capacity of this E-Frame breaker has been rigorously tested at various voltages, achieving capacities of 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC. It boasts a hold current of 1000 A, indicating the maximum current the breaker can sustain before tripping, and a trip current of 2300 A, ensuring reliable trip operation.
