EDL172XR | Satec Extended Range Portable Event And Data Logger
- Regular price
- $1,357.00
- Sale price
- $1,357.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EDL172XR
Description
The Satec EDL172XR is an extended-range portable event and data logger designed for advanced power quality analysis and energy monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Satec |
| Category | Industrial Automation and Controls |
| Part Number | EDL172XR |
| Subcategory | Portable Event & Data Loggers |
| Based On | PM172 analyzer functionality |
| Battery Powered | Yes (internal rechargeable battery) |
| Small Current Support | Measures small current via Rogowski sensor |
| Accessories | Voltage probe leads, carry case |
| Weight | 6.01 kgs |
Information About EDL172XR

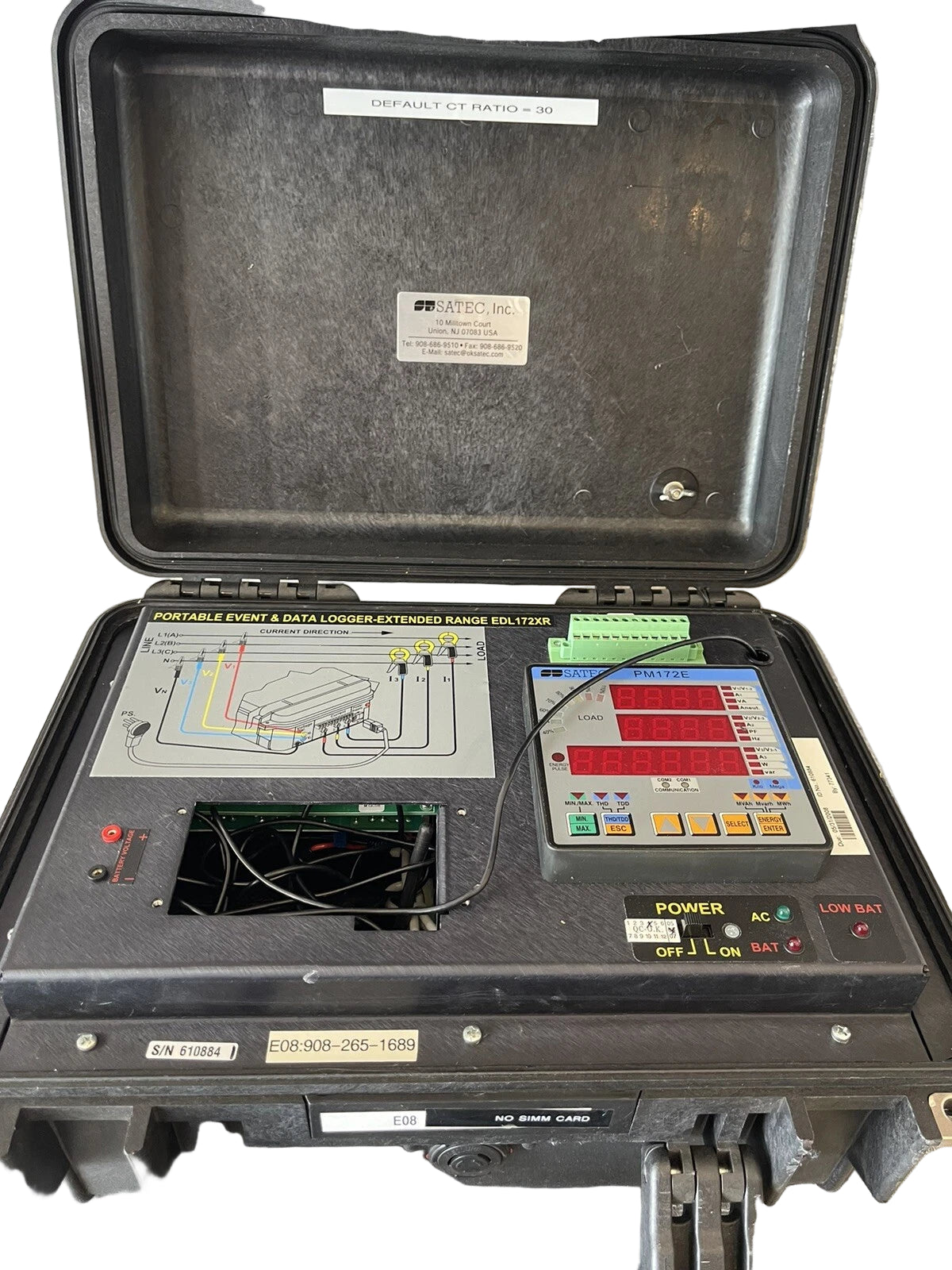

The Satec EDL172XR is an extended-range portable event and data logger designed for advanced power quality analysis and energy monitoring in the field. Built on the proven functionality of the Satec PM172 power analyzer, it provides comprehensive three-phase metering, power quality assessment, waveform capture, and event logging in a rugged, transportable format.
Key Features:
- Based On: Satec PM172 power analyzer functionality.
- Measurement Range: Voltage, current, power, energy, harmonics, and transient events.
- Low-Current Capability: Supports Rogowski coils for small current measurement.
- Power Source: Internal rechargeable battery for portable operation.
- Logging Functions: Event recording, waveform capture, and long-term trending.
- Accessories: Voltage leads, Rogowski sensors or current clamps, and carry case.

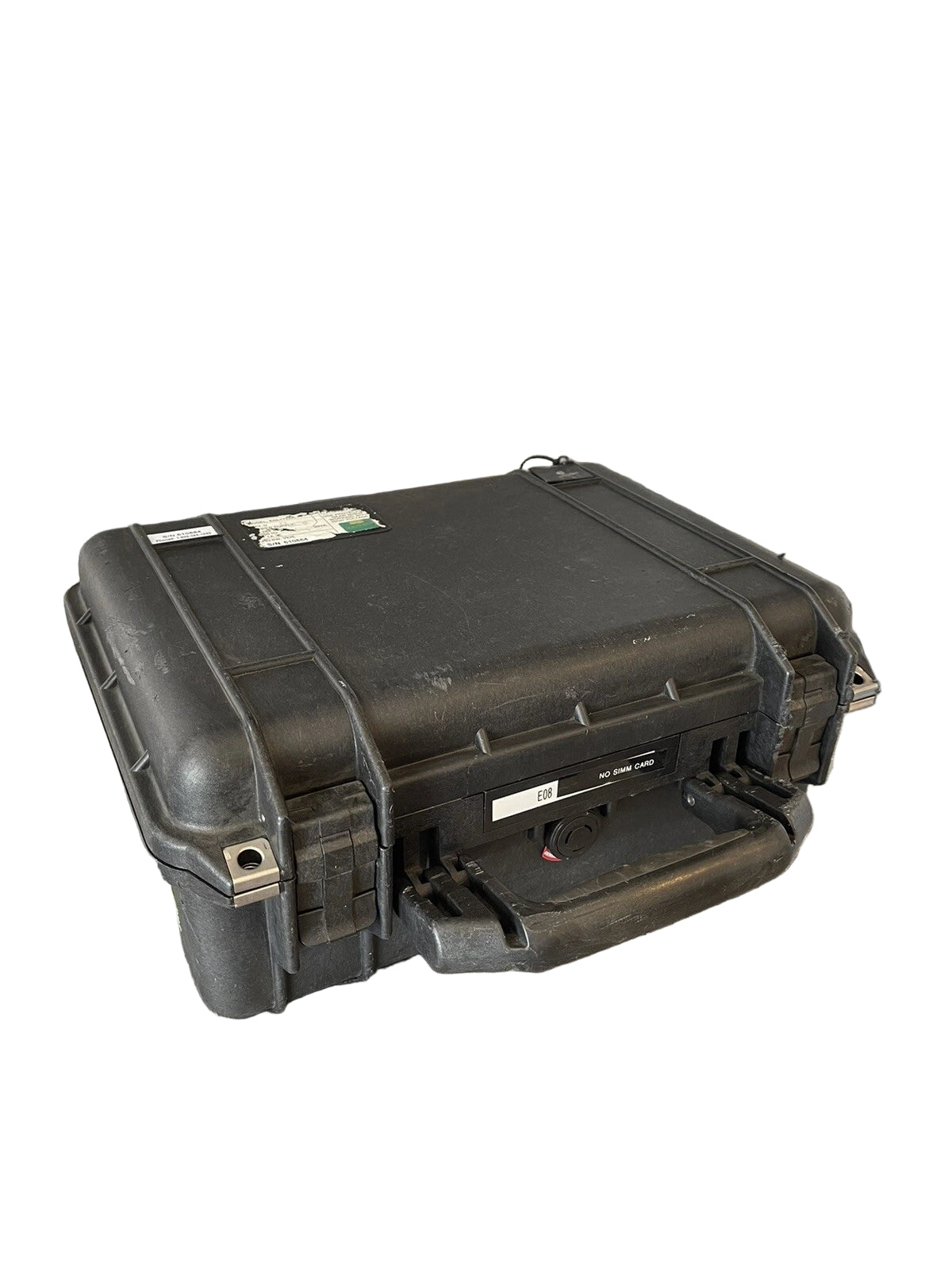

- Construction: Rugged portable enclosure for field use.
- Weight: 6.01 kg.
The Satec EDL172XR delivers the power of a full-featured power analyzer in a mobile package, making it a trusted solution for temporary monitoring, troubleshooting, and detailed power quality investigations in diverse environments.
