Edwards 200200D nEXT Split-Flow Duplex Turbomolecular Vacuum Pump for Analytical Instrument Systems
- Regular price
- $12,799.00
- Sale price
- $12,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 200200D
Description

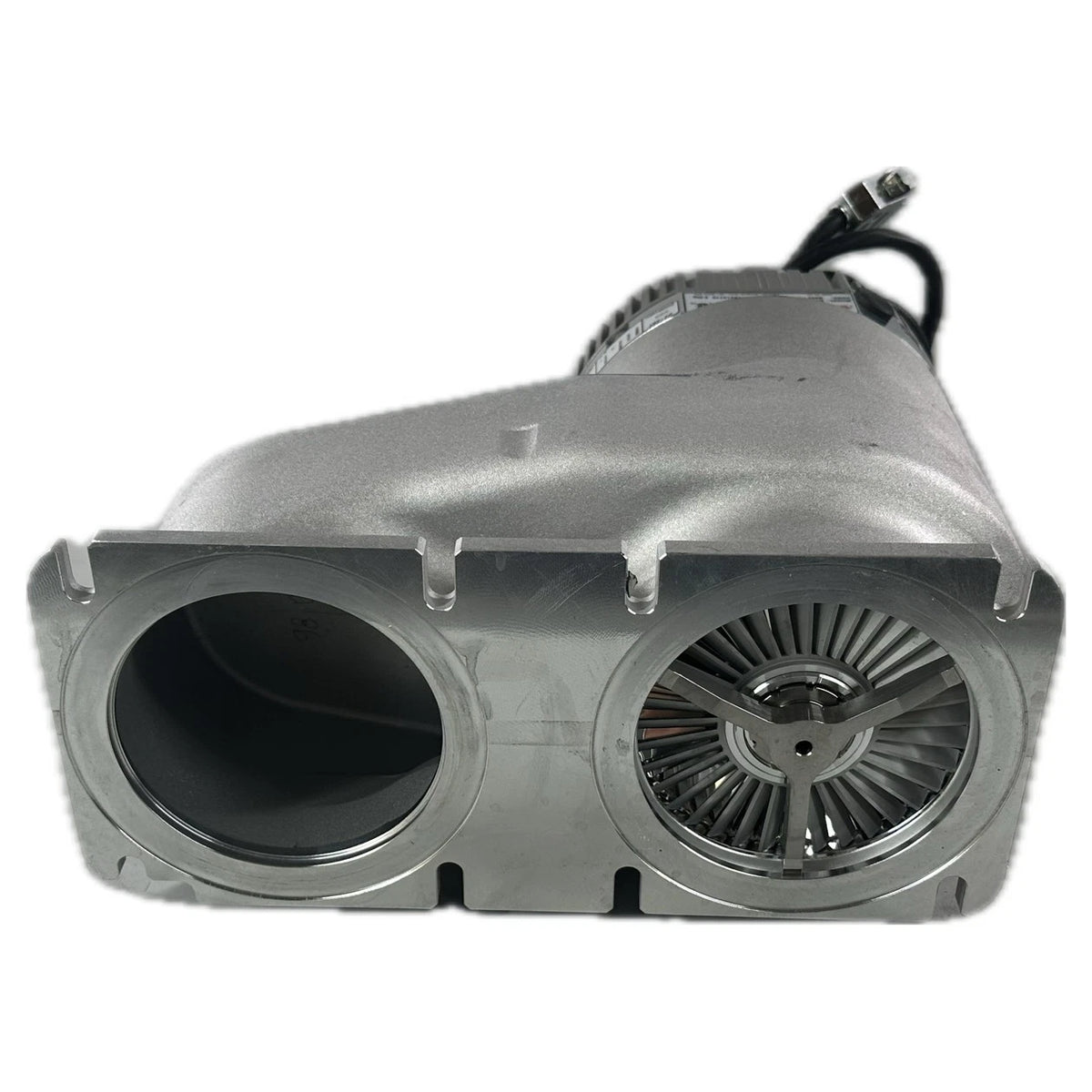

The Edwards 200200D is an nEXT split-flow duplex turbomolecular vacuum pump designed to evacuate separate vacuum stages within analytical instruments. Its main and side inlets provide nominal nitrogen pumping speeds of 200 L/s each, supporting differential pumping in compatible instrument configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Vacuum Equipment |
| Part Number | 200200D |
| Subcategory | Turbomolecular Vacuum Pumps |
| Series | nEXT Split Flow |
| Pump Configuration | Split-flow duplex |
| Pumping Technology | Turbomolecular stages with molecular drag mechanism |
| Main Inlet Pumping Speed | Nominal 200 L/s for nitrogen |
| Side Inlet Pumping Speed | Nominal 200 L/s for nitrogen |
| Listed Power Rating | 160 W, according to supplied product information |
| Nominal Rotational Speed | 1,000 Hz / 60,000 rpm |
| Motor Type | Brushless DC |
| Controller Configuration | Permanently attached electronic drive controller |
| Control Compatibility | Compatible customer control equipment or appropriate Edwards TIC Turbo Controller |
| Maximum Allowed Backing Pressure | Approximately 6 mbar, per published model specifications |
| Operating Temperature | +5 to +35 °C |
| Storage Temperature | −30 to +70 °C |
| Dimensions (L × H × W) | 236 × 314 × 160 mm, published model dimensions |
| Weight | 9.1 kg (20.1 lb) |
Information About 200200D

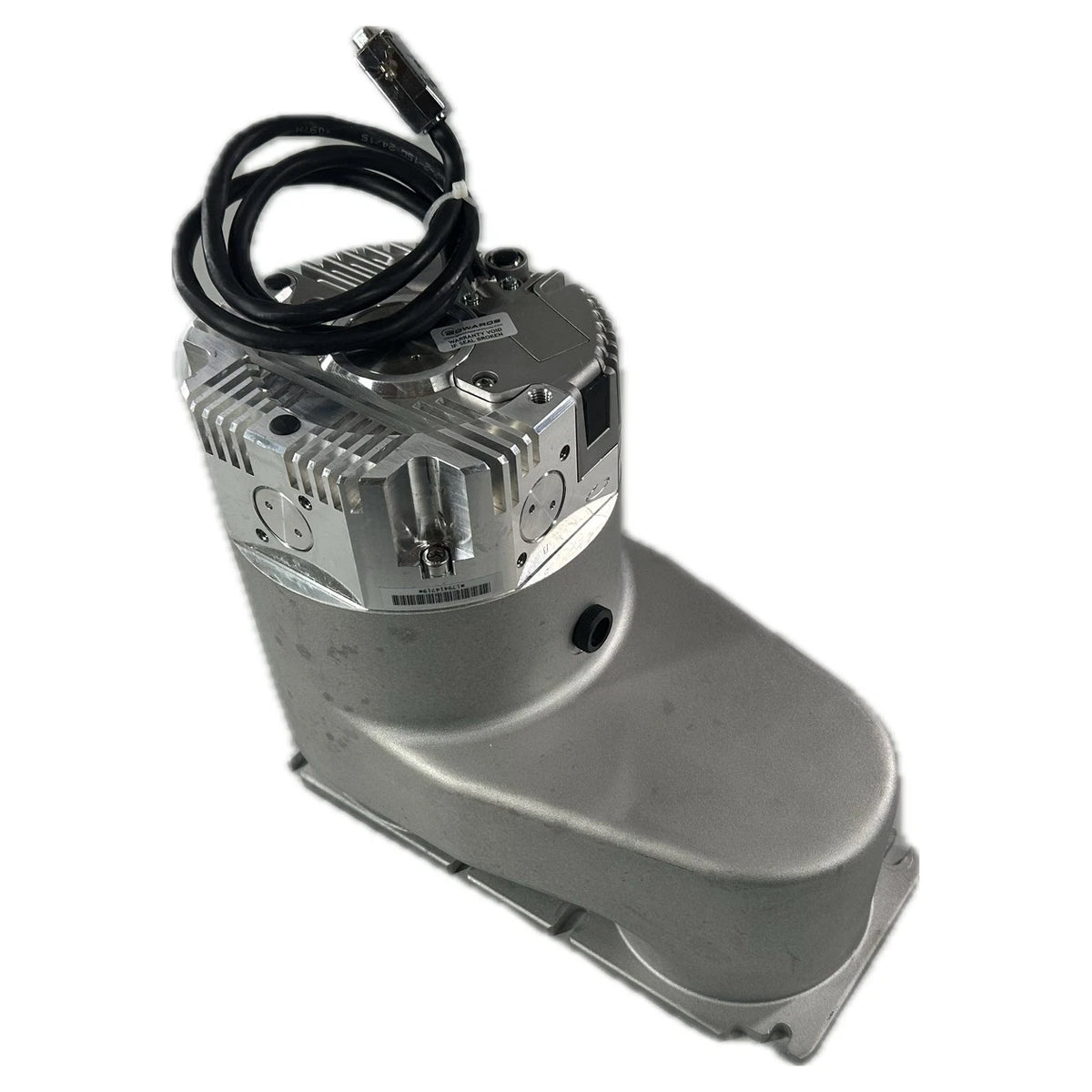

The 200200D is part of the Edwards nEXT split-flow pump family developed for equipment with multiple vacuum requirements and limited installation space. Its duplex construction combines turbomolecular blades with a molecular drag mechanism to accommodate higher backing pressures than a purely turbomolecular design. A permanently attached controller houses the drive electronics for the brushless DC motor. Operation requires compatible customer control equipment and a suitable power supply, or an appropriate Edwards TIC Turbo Controller.
Key Features:
- Split-Flow Design: Provides separate main and side inlets for differential pumping within compatible vacuum systems.
- Dual Pumping Capacity: Offers nominal nitrogen pumping speeds of 200 L/s at each inlet.
- Duplex Pumping Technology: Combines turbomolecular stages with a molecular drag mechanism.
- Integrated Drive Electronics: Includes a permanently attached controller for motor operation.
- Brushless DC Motor: Drives the high-speed rotor through the electronic controller.
- Control Compatibility: Connects to compatible customer equipment or appropriate Edwards TIC Turbo Controllers.
- Compact Configuration: Combines multiple pumping paths within one assembly to reduce installation space requirements.
The 200200D delivers the reliability and precision required for differential vacuum pumping in analytical instruments and compatible mass spectrometry systems.
