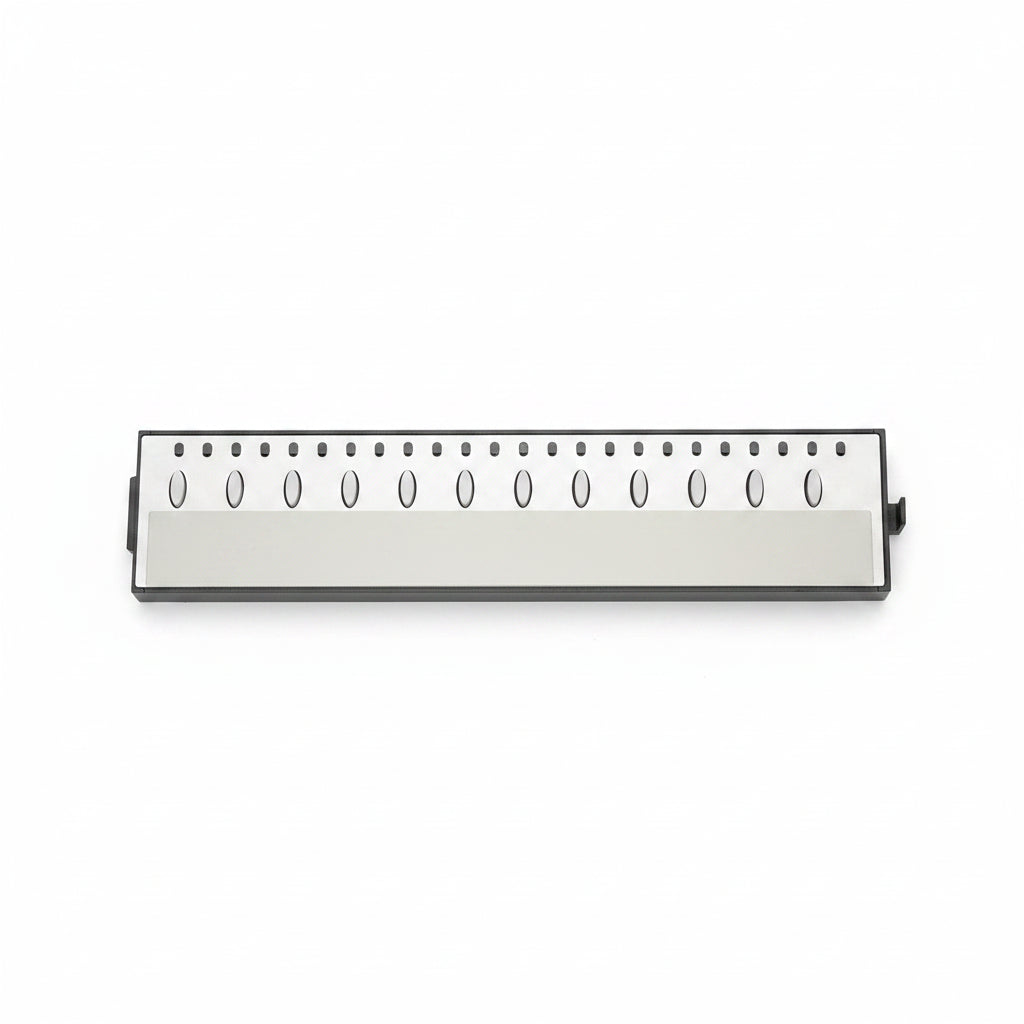

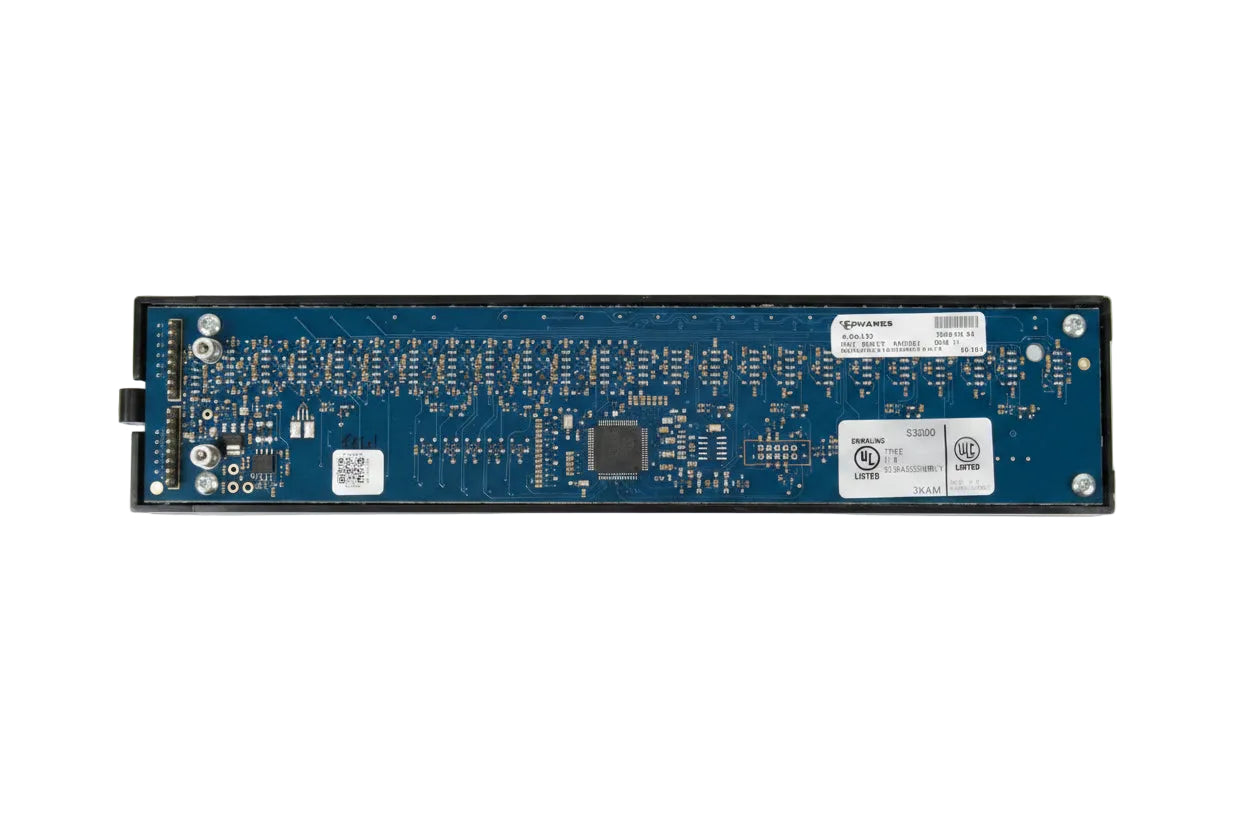

Edwards 4-24L12S EST4 Control Display Module with 24 LED Indicators and 12 Switches
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4-24L12S
Description
The Edwards 4-24L12S is an EST4 Control Display Module that provides 24 LED indicators and 12 switches for fire alarm system status display and operator control. Designed for compatible Edwards EST4 panels and annunciators, the 4-24L12S provides programmable visual indication and switch functions for applications such as zone control, audio functions, and equipment status monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm Systems |
| Part Number | 4-24L12S |
| Subcategory | Control Display Modules |
| Product Series | EST4 |
| Product Type | Control Display Module |
| LED Indicators | 24 |
| Control Switches | 12 |
| Indicator Type | Programmable Multi-Color LED |
| Switch Type | Tactile Control Switches |
| Operating Voltage | 24 VDC |
| Standby Current | 3.0 mA base + 0.23 mA per illuminated indicator |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 0 to 93%, noncondensing |
| Mounting | Compatible EST4 Inner Door Assemblies |
| Application | Fire Alarm Annunciation and System Control |
| Weight | 0.65 lb (0.29 kg) |
Information About 4-24L12S
The 4-24L12S is an Edwards EST4 Series control display module configured with 24 LED indicators and 12 operator switches. Its programmable indicators can represent assigned system states, while the tactile switches provide direct access to configured fire alarm control functions. The module supports customizable slide-in labeling and programmable LED behavior to identify specific equipment, zones, or system commands. It mounts within compatible EST4 cabinet and annunciator interface assemblies for centralized status monitoring and control.
Key Features:
- 24 LED Indicators: Provides 24 programmable visual positions for displaying assigned fire alarm system conditions.
- 12 Control Switches: Incorporates 12 tactile switches for executing programmed operator functions.
- Programmable Operation: Allows indicators and switches to be assigned according to specific system requirements.
- Multi-Color Indication: Supports selectable LED colors for distinguishing different equipment and system states.
- Configurable Flashing: Programmable LED flash behavior provides additional differentiation between displayed conditions.
- Custom Identification: Supports slide-in labels for clearly identifying individual indicators and control functions.
- EST4 Integration: Designed for installation within compatible Edwards EST4 fire alarm panels and annunciators.
- Multiple Applications: Supports functions such as audio zone control, fan and damper status, paging, and system annunciation.
The 4-24L12S delivers the reliability and precision required for fire alarm status annunciation, equipment monitoring, and operator control.
