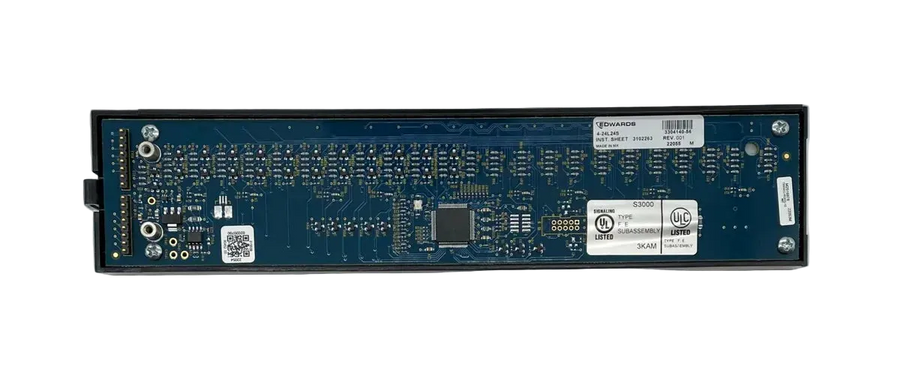

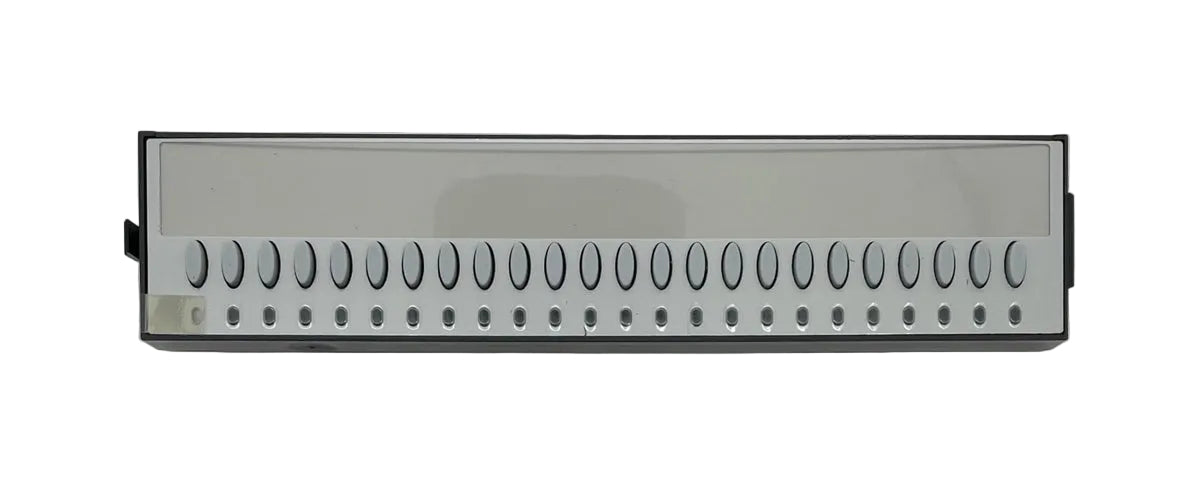

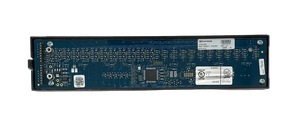

Edwards 4-24L24S EST4 Control Display Module
- Regular price
- $749.00
- Sale price
- $749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4-24L24S
Description
The Edwards 4-24L24S is an EST4 Control Display Module designed to provide local status indication and operator control within compatible fire alarm panels and remote annunciators. It combines 24 programmable LED indicators with 24 control switches, providing visual system feedback and direct access to assigned fire alarm functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm Systems |
| Part Number | 4-24L24S |
| Subcategory | Control Display Modules |
| Product Series | EST4 |
| Product Type | Control Display Module |
| LED Indicators | 24 |
| Control Switches | 24 |
| Indicator Configuration | Programmable Multi-Color LED |
| Switch Type | Tactile Rubber Control Buttons |
| Standby Current | 3.0 mA base + 0.23 mA per indicator ON at 24 VDC |
| Alarm Current | 3.0 mA base + 0.23 mA per indicator ON at 24 VDC |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 0 to 93%, noncondensing |
| Mounting | Compatible EST4 Inner Door Assemblies |
| Agency Listings | UL, ULC, FM, CSFM |
| Weight | 0.65 lb (0.29 kg) |
Information About 4-24L24S
The 4-24L24S is an Edwards EST4 Series control display module designed for installation on the inner door of compatible control panels and annunciators. Its 24 indicators use selectable LED colors, while the 24 tactile switches can be programmed for specific system control functions. Custom slide-in labels provide identification for individual controls and indicators, and programmable flash rates allow different system conditions to be visually distinguished. The module supports applications including fan and damper status, audio zone notification, paging, and other configurable fire alarm control functions.
Key Features:
- 24 LED Indicators: Provides 24 programmable positions for visual fire alarm system status indication.
- 24 Control Switches: Incorporates 24 tactile buttons for operator-controlled system functions.
- Selectable LED Colors: Each indicator can be configured to display an assigned color according to its programmed function.
- Programmable Flash Rates: Supports different indicator flash patterns for additional visual status information.
- Custom Labeling: Accepts slide-in labels that can be customized for system functions and regional language requirements.
- Switch Radio Groups: Allows up to 24 switches to operate within a configured control group.
- Activation Feedback: Associated status LEDs provide visual feedback when control switches are activated.
- Inner-Door Mounting: Snaps into compatible EST4 cabinet and annunciator inner-door display locations.
The 4-24L24S delivers the reliability and precision required for fire alarm system status indication, annunciation, and operator control.
