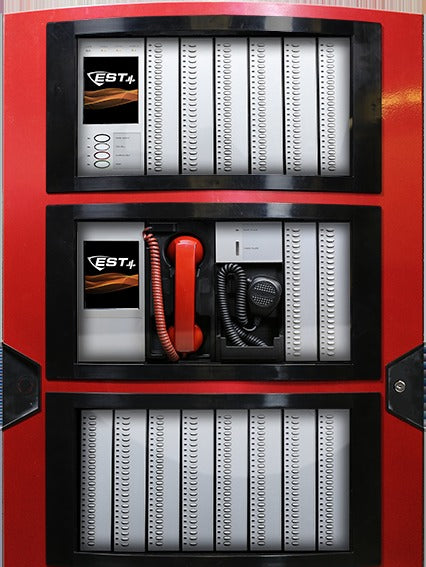

Edwards 4-CPUGRPH EST4 Graphic Annunciator Central Processor Module
- Regular price
- $5,199.00
- Sale price
- $5,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4-CPUGRPH
Description
The Edwards 4-CPUGRPH is a Graphic Annunciator Central Processor Module designed as the primary control element for graphic driver interface modules in EST4 fire alarm annunciator systems. It combines a CPU module, Graphic Interface Card, and mounting plate to process system information and coordinate graphic annunciator functions. The module supports network connectivity and interfaces with compatible 3-EVDVR driver modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Alarm Systems |
| Part Number | 4-CPUGRPH |
| Subcategory | Graphic Annunciator Modules |
| Product Series | EST4 |
| Product Type | Graphic Annunciator Central Processor Module |
| Primary Function | Graphic Annunciator Processing and Control |
| Assembly Components | CPU Module, Graphic Interface Card, Mounting Plate |
| USB Host Ports | 1 |
| USB Device Ports | 1 |
| SFP Network Connections | 2 |
| Graphic Driver Interface | 3-EVDVR |
| Network Support | Ethernet or Fiber with Compatible SFP Adapter |
| Application | Fire Alarm Graphic Annunciation |
| Weight | 1.5 lb (0.68 kg) |
Information About 4-CPUGRPH
The 4-CPUGRPH is an Edwards EST4 Series central processor module specifically designed for graphic fire alarm annunciation applications. Its assembly consists of a CPU module, Graphic Interface Card, and mounting plate for integration with compatible graphic annunciator hardware. The module provides USB host and device connections, two SFP network adapter connections, and an interface for 3-EVDVR graphic driver modules. It functions as the processing and communication core for Edwards graphic annunciator configurations used to display and manage fire alarm system information.
Key Features:
- Graphic Annunciator Processing: Serves as the central control element for graphic driver interface modules.
- EST4 Platform Compatibility: Designed for integration with Edwards EST4 fire alarm and life safety systems.
- Integrated CPU Assembly: Combines the processor, Graphic Interface Card, and mounting plate in one module.
- USB Host Port: Provides one USB host connection for supported peripheral applications.
- USB Device Port: Includes one USB device connection for system interface requirements.
- Dual SFP Connections: Provides connections for two small form-factor pluggable network adapters.
- Graphic Driver Interface: Connects with compatible 3-EVDVR graphic annunciator driver modules.
- Network Communication: Supports Ethernet or fiber communication when configured with appropriate SFP network adapters.
The 4-CPUGRPH delivers the reliability and precision required for centralized graphic annunciation and fire alarm system status management.
