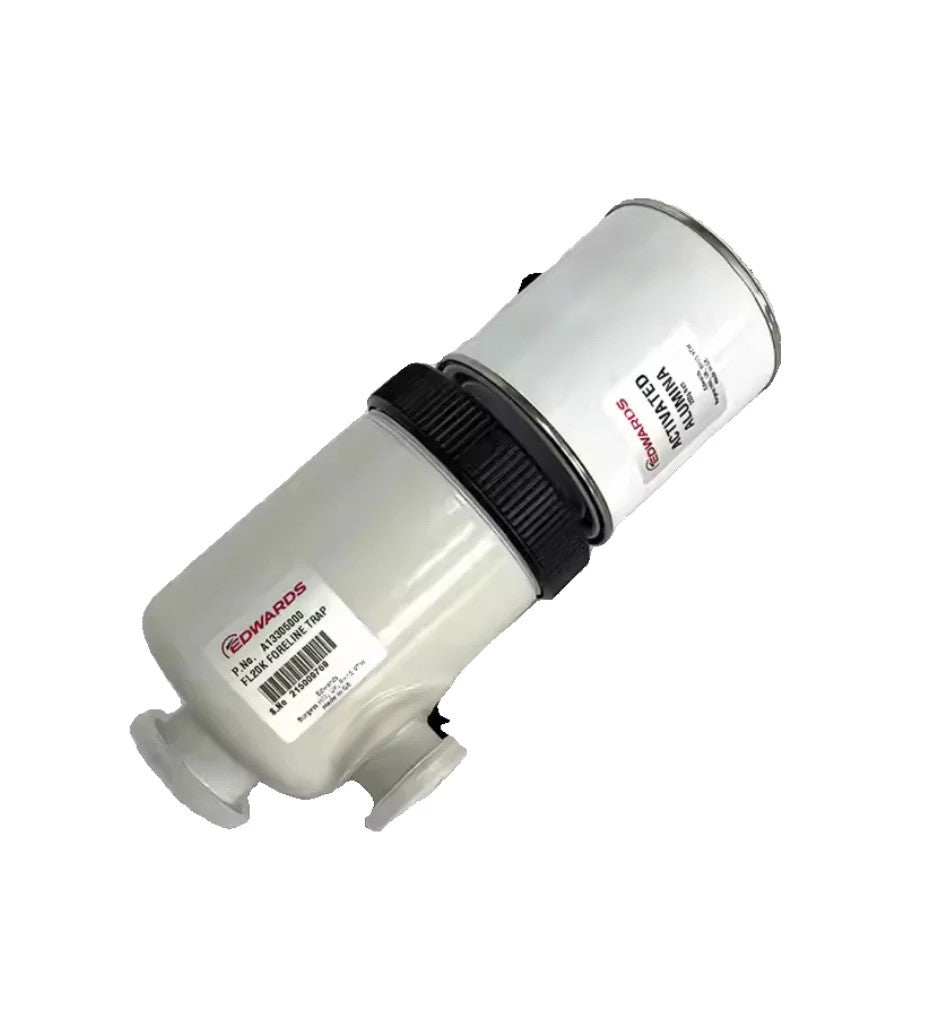

Edwards A13305000 FL20K Foreline Inlet Trap for Rotary Vacuum Pumps NW25
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A13305000
Description
The Edwards A13305000 FL20K Foreline Inlet Trap is designed to reduce oil vapor backstreaming into vacuum systems using two-stage rotary vane pumps. It uses an activated alumina sorbent charge housed in a removable basket within an aluminum body. With NW25 connections and a maximum flow rating of 20 cfm, it is suitable for compatible Edwards rotary pumps operating under appropriate vacuum conditions.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Vacuum Equipment |
|
Part Number |
A13305000 |
|
Subcategory |
Vacuum Traps |
|
Model |
FL20K |
|
Product Type |
Foreline Inlet Trap |
|
Compatible Pump Type |
Two-stage rotary vane vacuum pumps |
|
Connection Size |
NW25 |
|
Sorbent Material |
Activated alumina |
|
Body Material |
Aluminum |
|
Maximum Flow Rate |
20 cfm |
|
Ambient Operating Temperature |
0 to 50 °C |
|
Maximum Internal Pressure |
1 bar absolute |
|
Leak Tightness |
1 × 10⁻⁶ mbar·L/s at 1 bar differential |
|
Regeneration |
Sorbent basket can be baked at 250–300 °C for 2 hours, as specified in the supplied product information |
|
Weight |
2.20 lb |
Information About A13305000
The Edwards A13305000 FL20K Foreline Inlet Trap is designed to capture oil vapor from compatible two-stage rotary vane vacuum pumps and help prevent it from entering the vacuum system. It features an aluminum body, a removable basket containing activated alumina sorbent, and NW25 connections for installation in the foreline. The trap supports flow rates up to 20 cfm and is compatible with selected Edwards RV and E2M series pumps.
Key Features:
-
Oil Vapor Control: Captures oil vapor from compatible rotary vane pumps to help protect the vacuum system from contamination.
-
Activated Alumina Sorbent: Uses a 0.07 kg charge of activated alumina to trap oil vapor.
-
Removable Sorbent Basket: Allows the sorbent to be removed for maintenance and regeneration.
-
Aluminum Construction: Features an aluminum body with aluminum and Viton® wetted parts.
-
NW25 Connections: Connects to compatible vacuum lines using NW25 ports.
-
Maximum Flow Rate: Supports a rated flow of up to 20 cfm.
-
Pump Compatibility: Designed for use with Edwards RV3, RV5, RV8, RV12, E2M0.7, E2M1.5, E2M18, and E2M28 two-stage rotary vane pumps.
-
Operating Conditions: Suitable for ambient temperatures of 0–50 °C and a maximum internal pressure of 1 bar absolute.
The A13305000 delivers the reliability and precision required for oil vapor control in rotary-pump vacuum systems.
