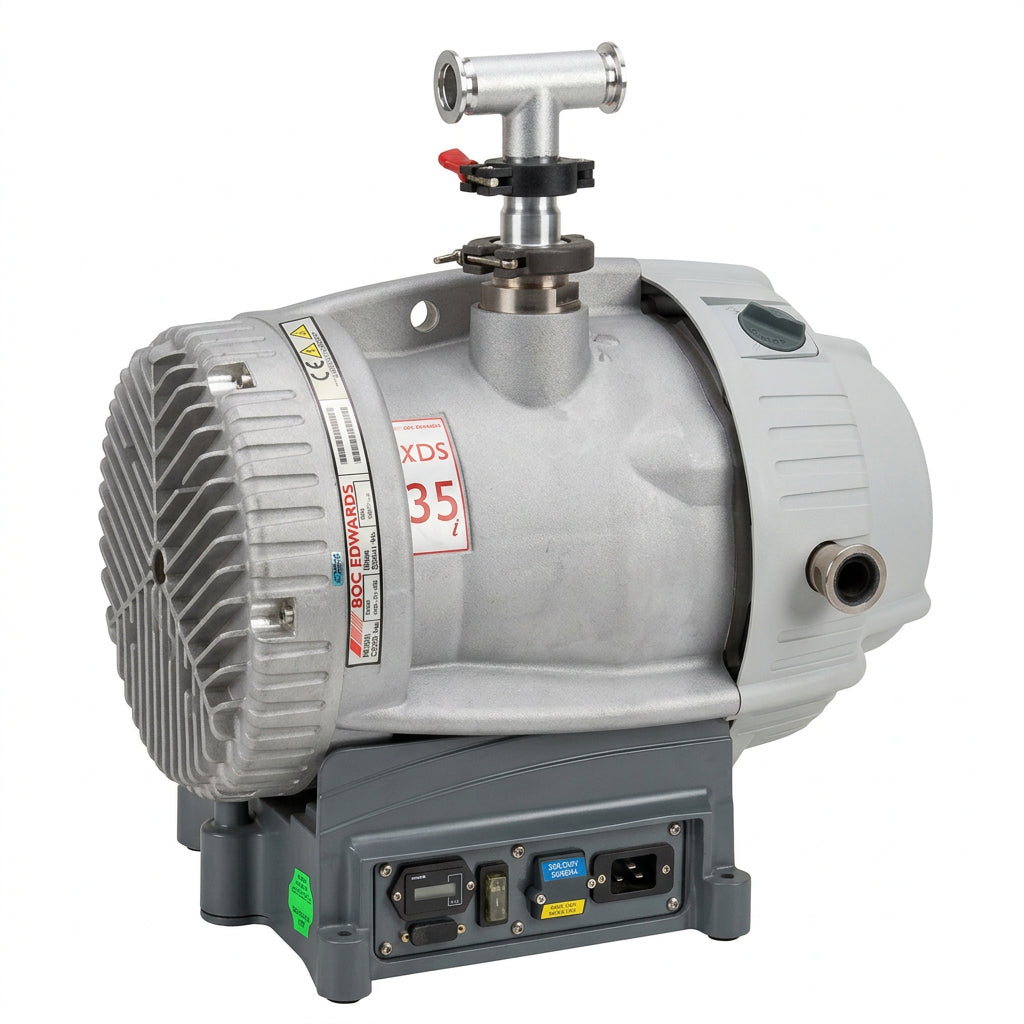

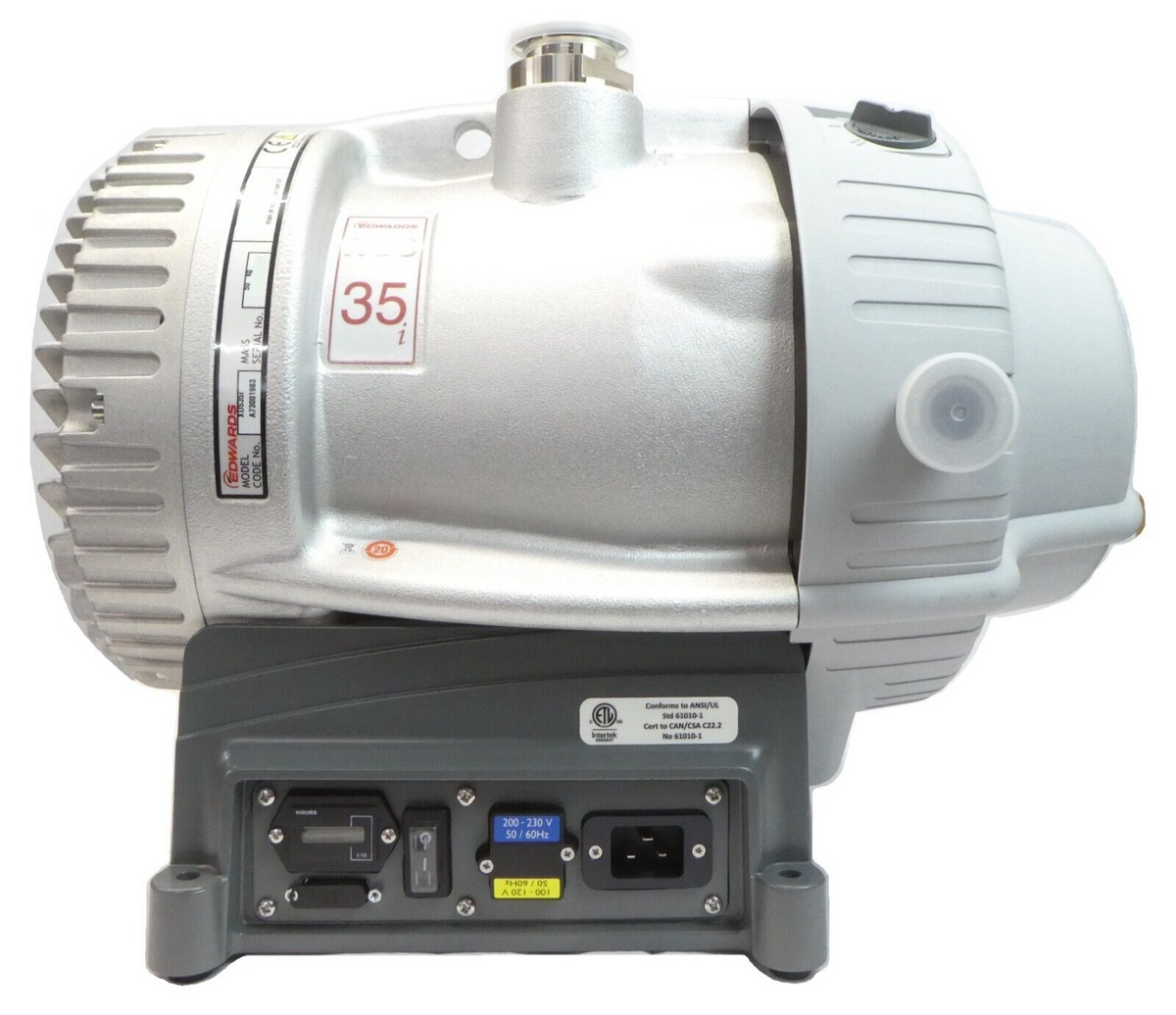

Edwards A73001983 XDS35i Dry Scroll Vacuum Pump with Gas Ballast for Laboratory and Industrial Systems
- Regular price
- $19,999.00
- Sale price
- $19,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A73001983
Description
The Edwards A73001983 is an XDS35i dry scroll vacuum pump designed for clean evacuation in laboratory and industrial vacuum systems. It provides a peak pumping speed of 35 m³/h and an ultimate pressure of 0.01 mbar, supporting applications such as analytical instrumentation, load-lock evacuation, and turbomolecular pump backing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Vacuum Equipment |
| Part Number | A73001983 |
| Subcategory | Dry Scroll Vacuum Pumps |
| Model | XDS35i |
| Variant | Standard version with gas ballast |
| Pumping Technology | Dry scroll |
| Peak Pumping Speed | 35 m³/h |
| Ultimate Vacuum | 0.01 mbar total pressure, gas ballast closed |
| Ultimate Vacuum with Gas Ballast I | 0.02 mbar |
| Rated Motor Power | 520 W |
| Supply Voltage | 100–120 / 200–230 V AC |
| Supply Phase and Frequency | Single-phase, 50/60 Hz |
| Inlet Connection | DN 40 ISO-KF (NW40) |
| Exhaust Connection | DN 25 ISO-KF (NW25) |
| Cooling Method | Forced-air fan cooling |
| Maximum Water Vapor Capacity | 240 g/h with gas ballast II |
| Dimensions (L × W × H) | 476 × 333 × 396 mm |
| Noise Level | 57 dB(A) at ultimate vacuum |
| Weight | 48 kg |
Information About A73001983
The A73001983 is the standard gas-ballast-equipped model in the Edwards XDS35i series. Its scroll mechanism compresses gas without oil in the pumping chamber, while a bearing shield separates bearing lubrication from the process gas path. The integrated motor drive provides overload protection and supports remote start/stop operation. DN 40 ISO-KF inlet and DN 25 ISO-KF exhaust connections allow integration with compatible vacuum piping and accessories.
Key Features:
- Dry Scroll Technology: Produces vacuum without oil lubrication in the pumping chamber.
- Pumping Capacity: Provides a peak pumping speed of 35 m³/h at either 50 or 60 Hz.
- Ultimate Pressure: Reaches 0.01 mbar total pressure with the gas ballast closed.
- Bearing Isolation: Separates bearing lubricant from the pumped gas stream.
- Adjustable Gas Ballast: Supports condensable vapor handling, including water vapor loads up to 240 g/h.
- Integrated Motor Drive: Provides pump overload protection and remote start/stop capability.
- Single-Phase Supply: Accepts 100–120 V or 200–230 V AC electrical supplies at 50/60 Hz.
- Standard Vacuum Connections: Uses a DN 40 ISO-KF inlet and DN 25 ISO-KF exhaust for compatible system connections.
The A73001983 delivers the reliability and precision required for clean vacuum generation in analytical, research, and industrial pumping applications.
