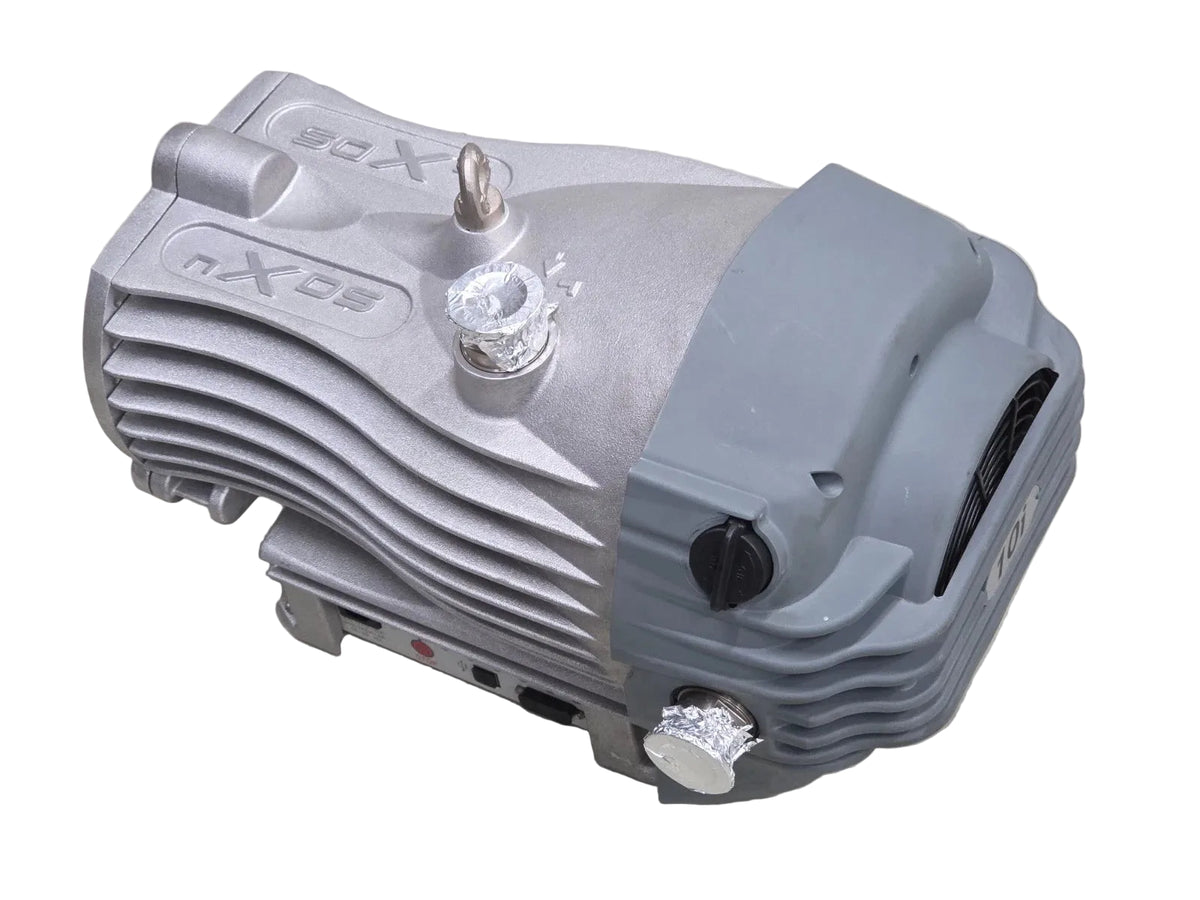

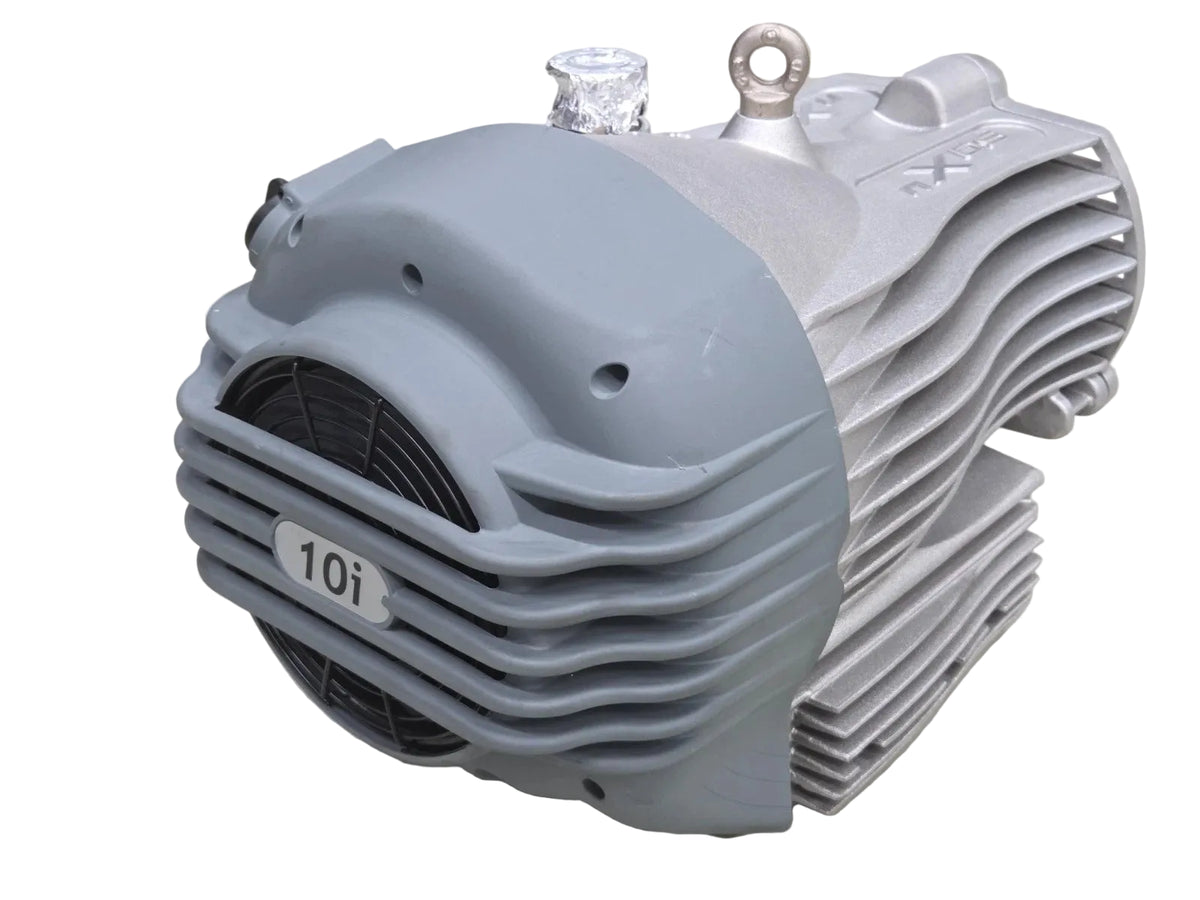

Edwards A73601983 nXDS10i Oil-Free Dry Scroll Vacuum Pump 6.7 CFM
- Regular price
- $7,999.00
- Sale price
- $7,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A73601983
Description
The Edwards A73601983 nXDS10i is an oil-free dry scroll vacuum pump designed to generate clean vacuum for laboratory, analytical, and industrial applications. It delivers a nominal pumping speed of 6.7 CFM (11.4 m³/h) and an ultimate pressure of 0.007 mbar without gas ballast. The pump features NW25 inlet and exhaust connections, forced-air cooling, and single-phase operation across 100–127 V or 200–240 V at 50/60 Hz.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Vacuum Equipment |
|
Part Number |
A73601983 |
|
Subcategory |
Dry Scroll Vacuum Pumps |
|
Model |
nXDS10i |
|
Pump Type |
Oil-free dry vacuum pump |
|
Pumping Speed |
6.7 CFM (11.4 m³/h) |
|
Ultimate Pressure Without Gas Ballast |
0.007 mbar (0.005 Torr) |
|
Exhaust Connection |
DN 25 ISO-KF (NW25) |
|
Power Supply |
Single-phase, 100–127 V / 200–240 V AC |
|
Frequency |
50/60 Hz |
|
Continuous Power at Atmosphere |
490 W |
|
Cooling Method |
Forced-air cooling |
|
Noise Level |
52 dB(A) |
|
Dimensions (L × W × H) |
432 × 282 × 302 mm |
|
Electrical Connector |
IEC EN 60320 C14 |
|
Power Cable |
Sold separately |
|
Operating Ambient Temperature |
5 to 40 °C |
|
Weight |
57 lb |
Information About A73601983
The A73601983 belongs to Edwards’ nXDS series of dry scroll vacuum pumps and uses scroll technology to compress and evacuate gas without oil lubrication in the pumping mechanism. Its standard configuration is equipped with DN 25 ISO-KF (NW25) inlet and exhaust flanges for integration into compatible vacuum systems. The pump supports gas-ballast operation, with a specified ultimate pressure of 0.04 mbar when gas ballast is used. The unit includes an IEC C14 power inlet, while the region-specific mains power cable must be purchased separately.
Key Features:
-
Oil-Free Pumping: Dry scroll technology eliminates the need for oil in the pumping mechanism.
-
Pumping Speed: Delivers a nominal pumping speed of 6.7 CFM (11.4 m³/h).
-
Ultimate Vacuum: Reaches 0.007 mbar without gas ballast under specified conditions.
-
Gas Ballast Operation: Supports an ultimate pressure of 0.04 mbar with gas ballast.
-
NW25 Connections: Includes DN 25 ISO-KF inlet and exhaust flanges.
-
Flexible Power Supply: Operates on single-phase 100–127 V or 200–240 V AC at 50/60 Hz.
-
Forced-Air Cooling: Uses fan-assisted air cooling to manage operating temperature.
-
Compact Installation: Measures approximately 432 × 282 × 302 mm and weighs 25.8 kg.
The A73601983 delivers the reliability and precision required for clean, oil-free vacuum generation in laboratory and industrial systems.
