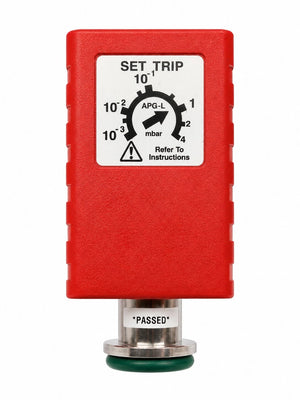

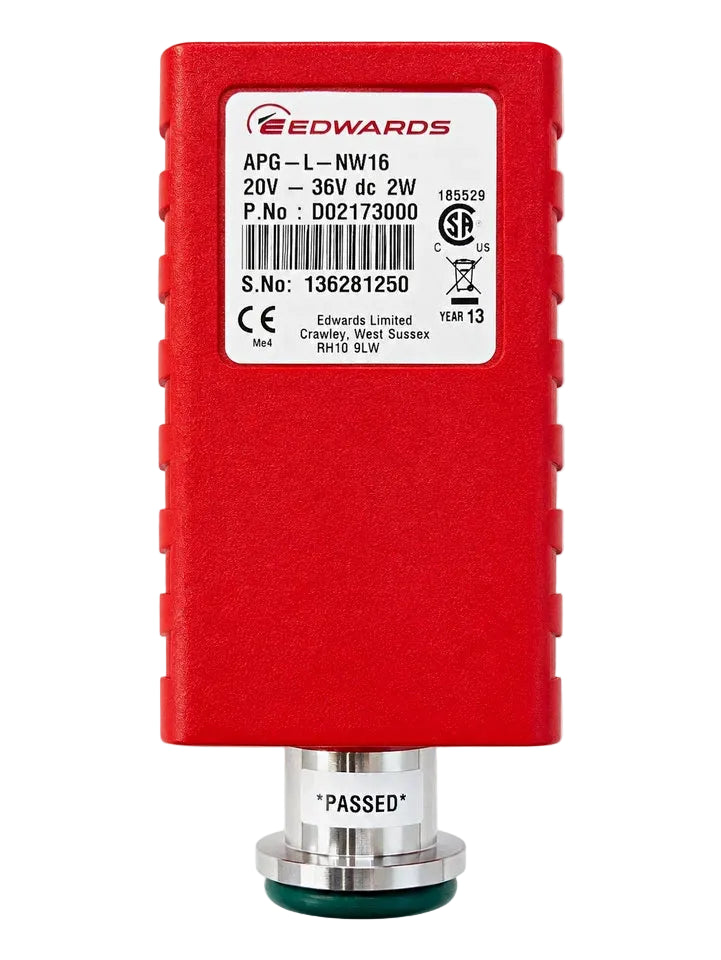

Edwards APG-L-NW16 D02173000 Active Pirani Vacuum Gauge with Analog Output
- Regular price
- $1,515.00
- Sale price
- $1,515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: APG-L-NW16
Description
The Edwards APG-L-NW16 is an active Pirani vacuum gauge identified by manufacturer part number D02173000. It measures pressure from atmosphere down to 10⁻⁴ mbar and provides an analog signal for compatible vacuum monitoring and control equipment.
Technical Specifications

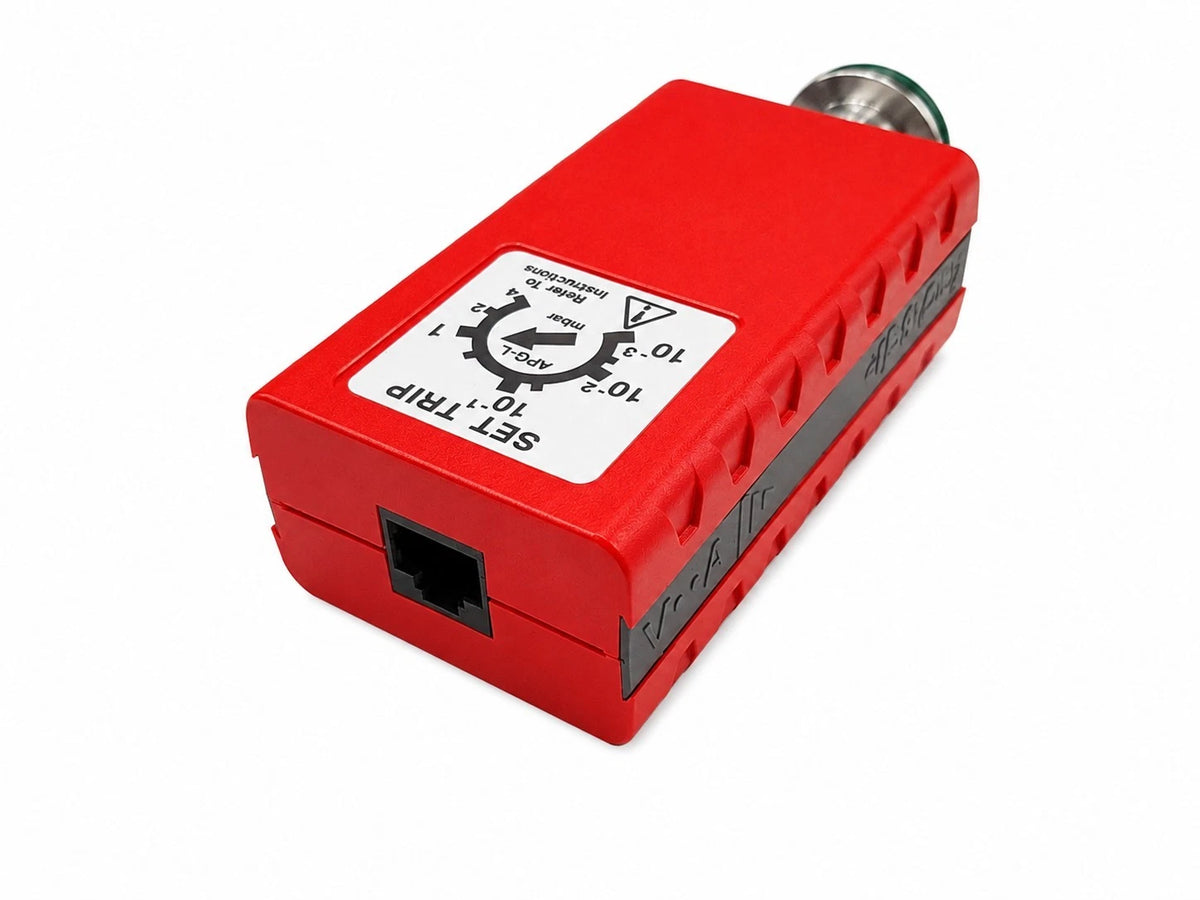

| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Controls & Indicators |
| Part Number | APG-L-NW16 |
| Subcategory | Pressure Gauge |
| Manufacturer Part Number | D02173000 |
| Product Family | APG |
| Measurement Principle | Pirani |
| Pressure Range | Atmosphere to 10⁻⁴ mbar |
| Vacuum Connection | NW16 / KF16 |
| Power Supply | 20–36 V DC |
| Maximum Power Consumption | 1.5 W, manufacturer specification |
| Analog Output Signal | 2–10 V DC |
| Setpoint Output | Open-collector transistor |
| Setpoint Electrical Rating | Maximum 40 V DC, 100 mA |
| Electrical Connector | Eight-way FCC68/RJ45 socket |
| Adjustments | Vacuum and atmosphere |
| Gauge Tube Material | Aluminum |
| Operating Temperature | +5 °C to +60 °C |
| Protection Rating | IP40 |
| Weight | 0.12 kg |
Information About APG-L-NW16
The APG-L-NW16 is the aluminum-tube, NW16 version of Edwards’ low-pressure APG gauge. Its integrated electronics combine the sensing head and signal conditioning within one assembly. The gauge operates from a 20–36 V DC supply and connects through an eight-way FCC68/RJ45 socket. Vacuum and atmosphere adjustments allow calibration at the specified reference conditions.
Key Features:
- Extended Vacuum Range: Measures from atmospheric pressure down to 0.0001 mbar.
- Pirani Sensing: Determines pressure through changes in gas thermal conductivity around a heated filament.
- Integrated Electronics: Combines the gauge head and drive electronics in one active unit.
- Analog Pressure Signal: Provides a 2–10 V DC output for compatible measurement equipment.

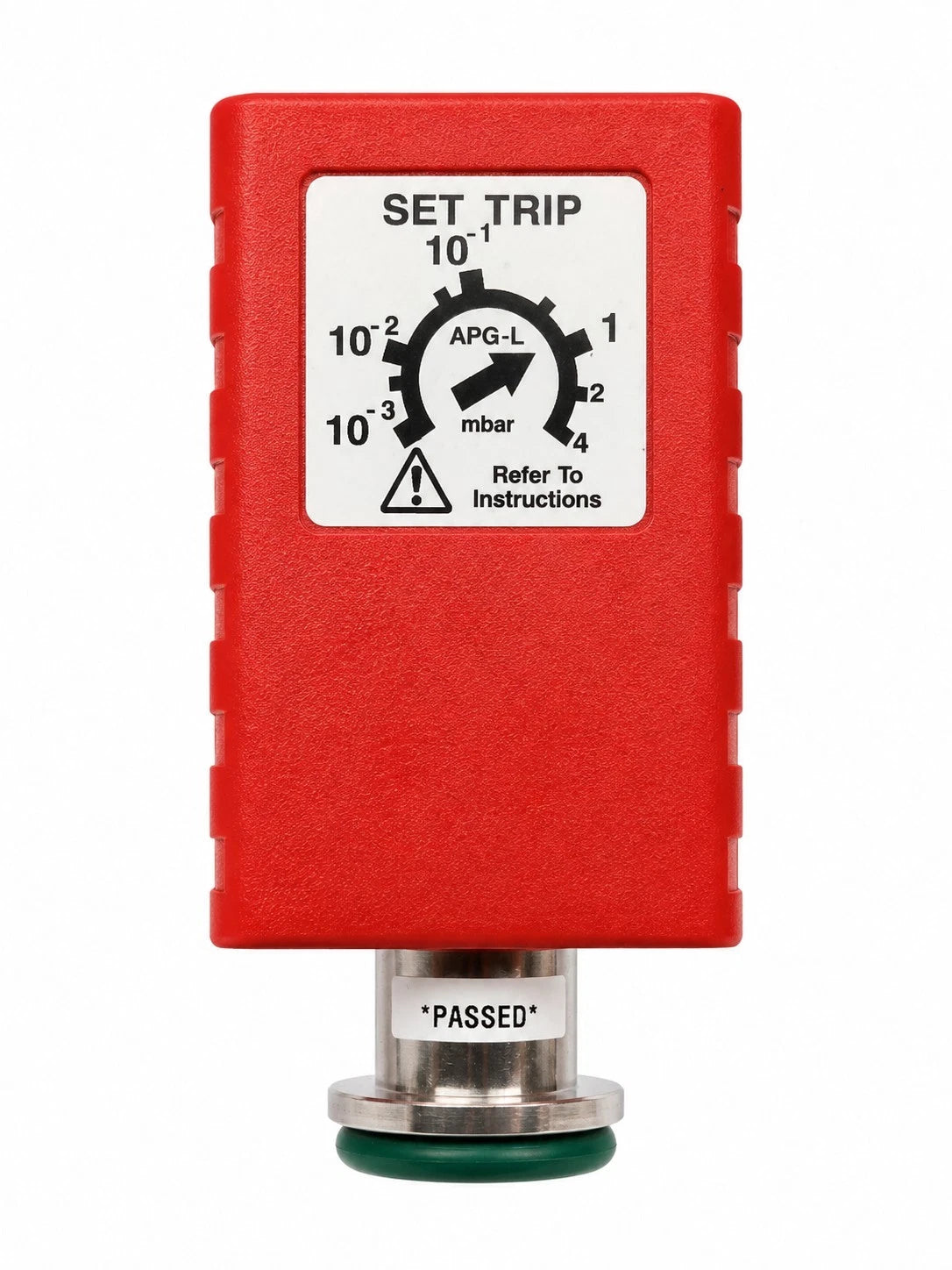

- Adjustable Setpoint: Includes an open-collector output for pressure-dependent switching.

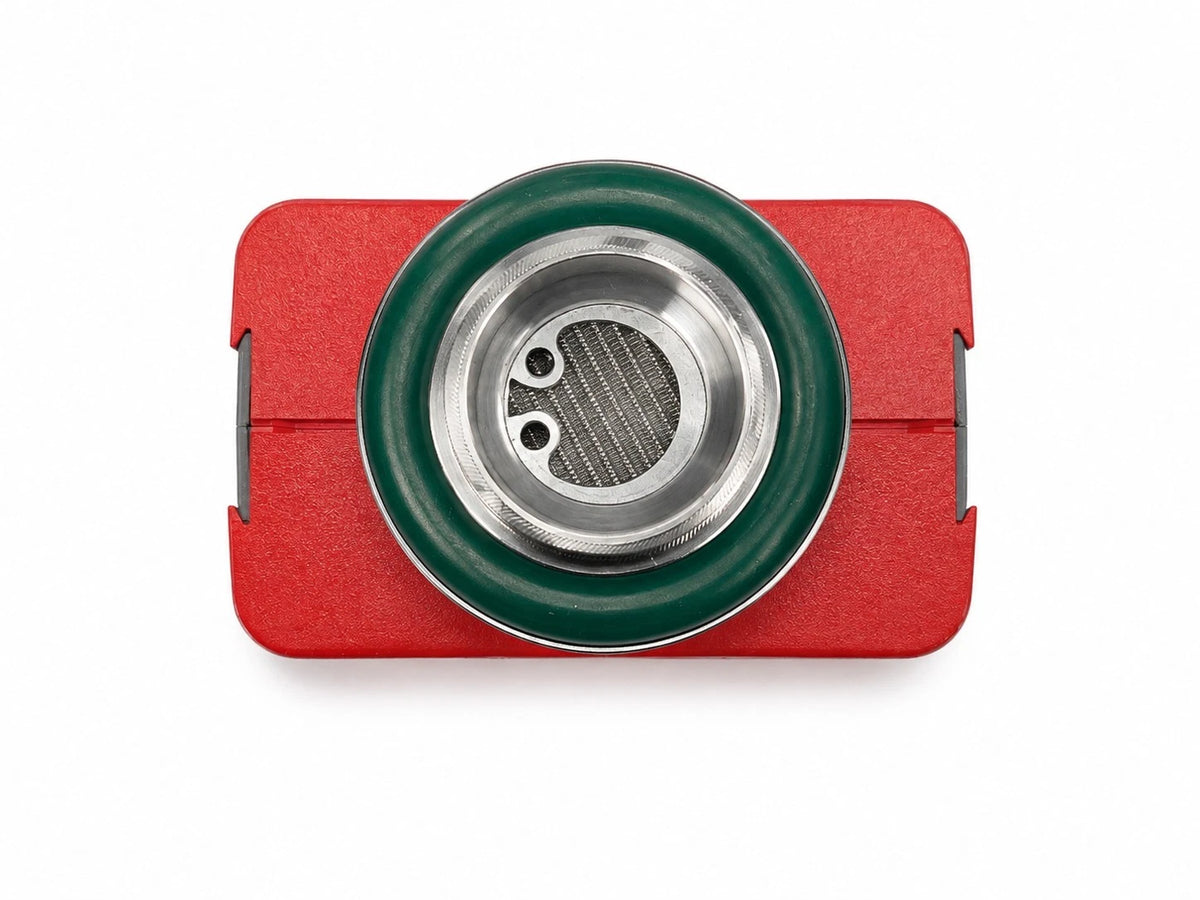

- NW16 Connection: Uses a KF16-compatible flange for attachment to vacuum pipework.
- Calibration Adjustments: Provides separate vacuum and atmosphere settings.
- DC Supply Operation: Accepts an external power supply between 20 and 36 V DC.
The APG-L-NW16 delivers the reliability and precision required for low-pressure measurement and vacuum-system monitoring in laboratory and industrial equipment.
