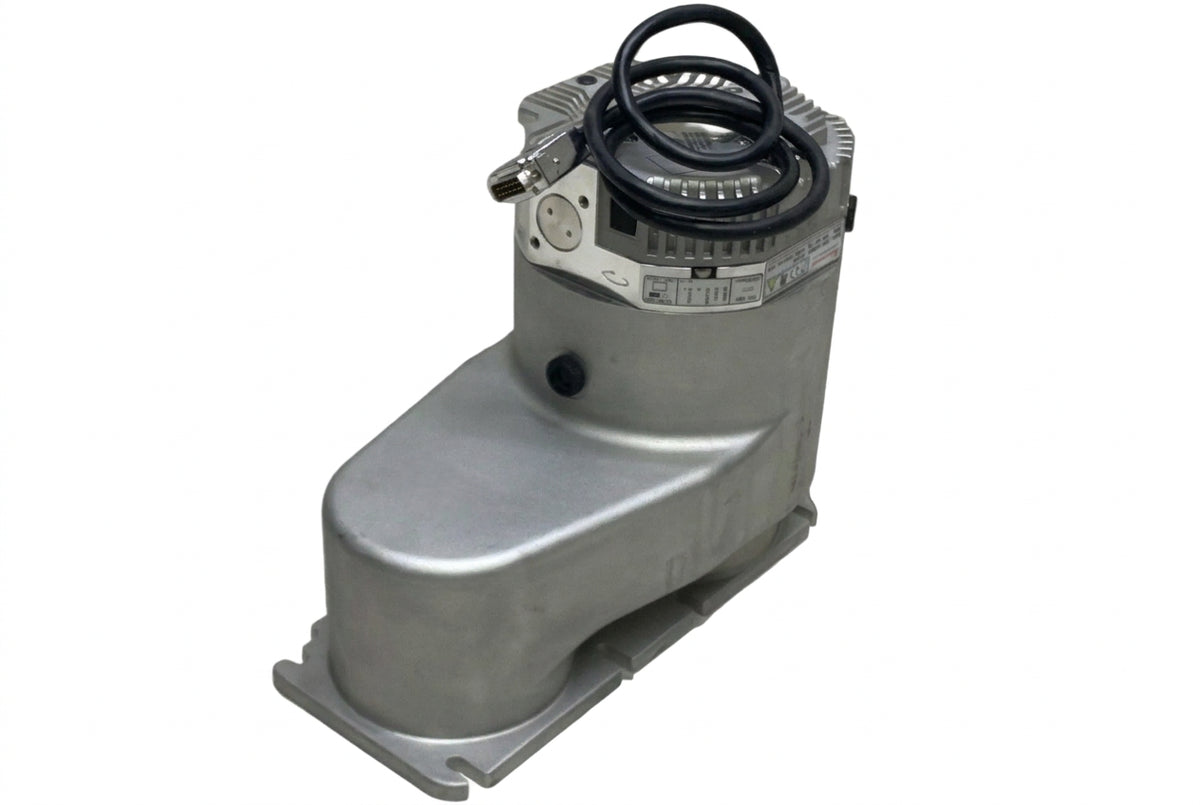

Edwards B85200512 nEXT 200200D Split-Flow Turbomolecular Vacuum Pump
- Regular price
- $3,587.00
- Sale price
- $3,587.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B85200512
Description
The Edwards B85200512 nEXT 200200D is a split-flow turbomolecular vacuum pump designed to generate high vacuum for analytical instruments and other vacuum applications. It combines a hybrid bearing system, an integrated motor drive, and a molecular drag stage to provide high pumping speed and gas compression in a compact pump assembly.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Vacuum Equipment |
|
Part Number |
B85200512 |
|
Subcategory |
Turbomolecular Pumps |
|
Model |
nEXT 200200D |
|
Pump Configuration |
Compound, split-flow |
|
Main Inlet Pumping Speed (N₂) |
200 l/s |
|
Compression Ratio (He, Side to Main Inlet) |
500 |
|
Maximum Allowed Backing Pressure |
Approximately 6 mbar |
|
Rotational Frequency |
1 kHz |
|
Motor Type |
Sensorless DC motor with integrated drive |
|
Bearing System |
Oil-lubricated ceramic lower bearing and dry permanent-magnet upper bearing |
|
Controller Compatibility |
Edwards TAG and TIC controllers |
|
Outlet Connection |
DN25 NW (NW25) |
|
Dimensions (L × H × W) |
236 × 314 × 160 mm |
|
Weight |
9.1 kg |
Information About B85200512
The B85200512 belongs to the Edwards nEXT series of compound turbomolecular pumps, which use an oil-lubricated ceramic lower bearing and a dry permanent-magnet upper bearing. Its rotor and molecular drag stage are designed to improve pumping performance and compression ratios across supported gas loads. The pump incorporates a sensorless DC motor and built-in drive compatible with Edwards TAG and TIC controllers. The nEXT 200200D model has a specified nitrogen pumping speed of 200 l/s at the main inlet and is intended for integration into compatible vacuum systems.
Key Features:
-
Split-Flow Design: Combines multiple pumping paths within one turbomolecular pump assembly.
-
Pumping Speed: Provides a nitrogen pumping speed of 200 l/s at both the main and side inlets.
-
Hybrid Bearing System: Uses an oil-lubricated ceramic lower bearing and a dry permanent-magnet upper bearing.
-
Molecular Drag Stage: Supports high compression ratios for demanding vacuum applications.
-
Integrated Drive: Features a sensorless DC motor with a built-in drive unit.
-
Controller Compatibility: Designed to work with compatible Edwards TAG and TIC controllers.
-
Serviceability: Designed to allow servicing of the oil cartridge and bearing system.
-
Compact Installation: Measures approximately 236 × 314 × 160 mm for integration into compatible vacuum equipment.
The B85200512 delivers the reliability and precision required for high-vacuum generation in analytical instruments, laboratory systems, and industrial vacuum applications.
