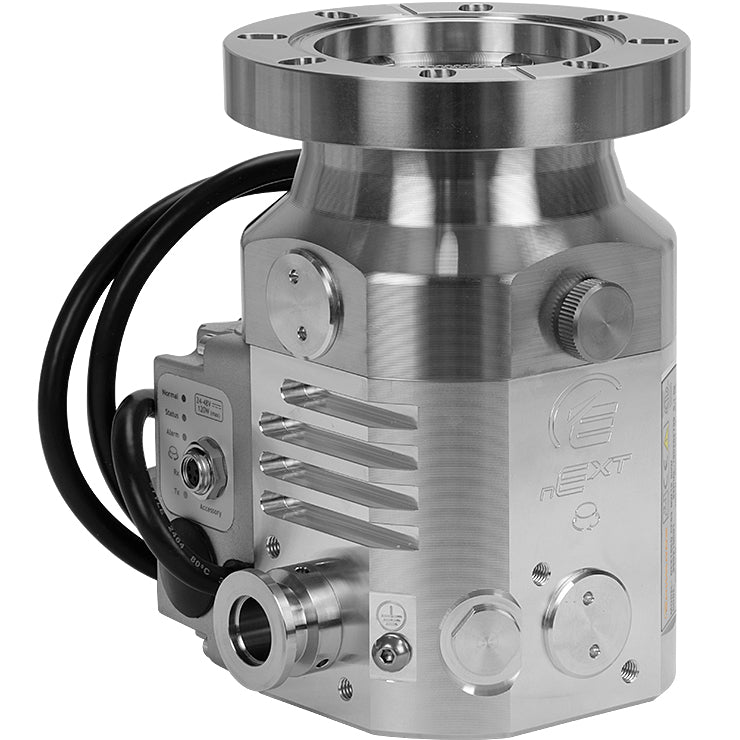

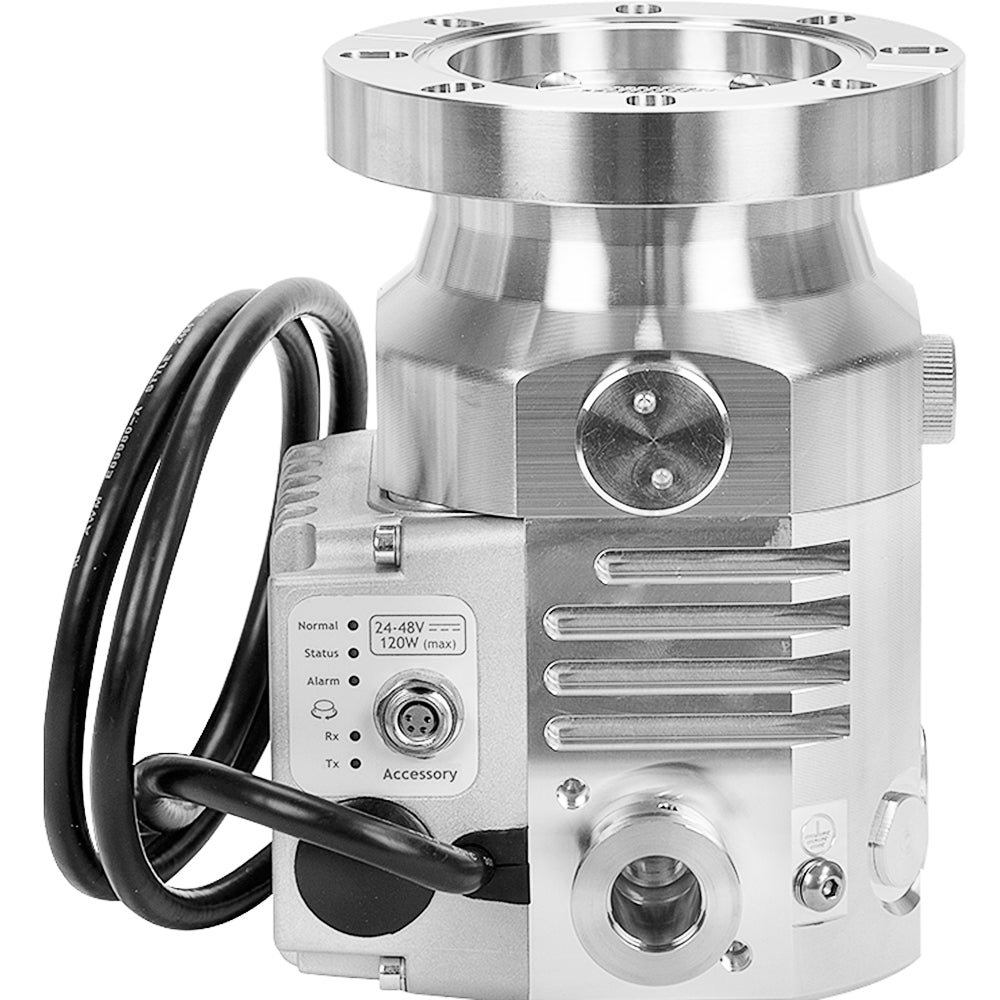

Edwards B8G210C01 nEXT85D Turbomolecular Vacuum Pump with DN63 CF Inlet
- Regular price
- $9,899.00
- Sale price
- $9,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B8G210C01
Description
The Edwards B8G210C01 is a turbomolecular vacuum pump with a DN63 CF inlet and an 84 L/s nitrogen pumping speed. The nEXT85D combines turbomolecular and drag stages with an integrated controller for analytical instruments, research systems, and industrial vacuum equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Pumps |
| Part Number | B8G210C01 |
| Subcategory | Turbomolecular Vacuum Pump |
| Model | nEXT85D |
| Pumping Configuration | nEXT85D duplex; turbomolecular and drag stages |
| Nitrogen Pumping Speed | 84 L/s |
| Ultimate Pressure | 5 × 10⁻¹⁰ mbar under specified system conditions |
| Nominal Rotational Speed | 90,000 rpm |
| Inlet Flange | DN63 CF, 4.5-inch |
| Backing / Exhaust Flange | DN16 ISO-KF / NW16 |
| Electrical Supply | 24–48 V DC |
| Rated Power Configuration | 80 W |
| Maximum Input Power | 120 W |
| Controller | Integrated nEXT85D drive electronics |
| Control Interfaces | RS232, RS485, USB, parallel I/O |
| Power / Control Connection | Attached cable with 15-pin D-sub connector |
| Cooling Options | Natural convection, forced air, or water, subject to operating conditions |
| Operating Orientation | Vertical with inlet upward through to horizontal |
| Weight | 4.40 kg |
Information About B8G210C01
The B8G210C01 is an Edwards nEXT85D configured with a 4.5-inch DN63 CF inlet and an NW16 backing connection. The nEXT85D operates from a suitable 24–48 V DC supply and requires a compatible backing pump. Its onboard electronics provide motor control, standby-speed operation, and five status indicators. The nEXT85D supports RS232, RS485, and USB connections for integration with external control and service equipment.
Key Features:
- Pumping Capacity: The nEXT85D provides a nitrogen pumping speed of 84 L/s.
- CF Inlet Flange: The nEXT85D uses a DN63 CF connection suitable for properly prepared ultra-high-vacuum systems.
- Compound Pumping Stages: The nEXT85D combines turbomolecular and drag stages for gas transfer toward the backing line.
- Integrated Electronics: The nEXT85D incorporates a controller for motor operation and standby-speed management.
- Communication Interfaces: The nEXT85D supports RS232, RS485, USB, and parallel control.
- Accessory Connection: The nEXT85D provides an interface for compatible cooling-fan or vent-valve accessories.
- Serviceable Components: The nEXT85D allows oil-cartridge and shaft-bearing maintenance using the specified procedures.
- Inlet Protection: The nEXT85D includes an inlet screen to help prevent debris from reaching the rotor.
The B8G210C01 nEXT85D delivers the reliability and precision required for high-vacuum generation in scientific instruments and industrial vacuum systems.
