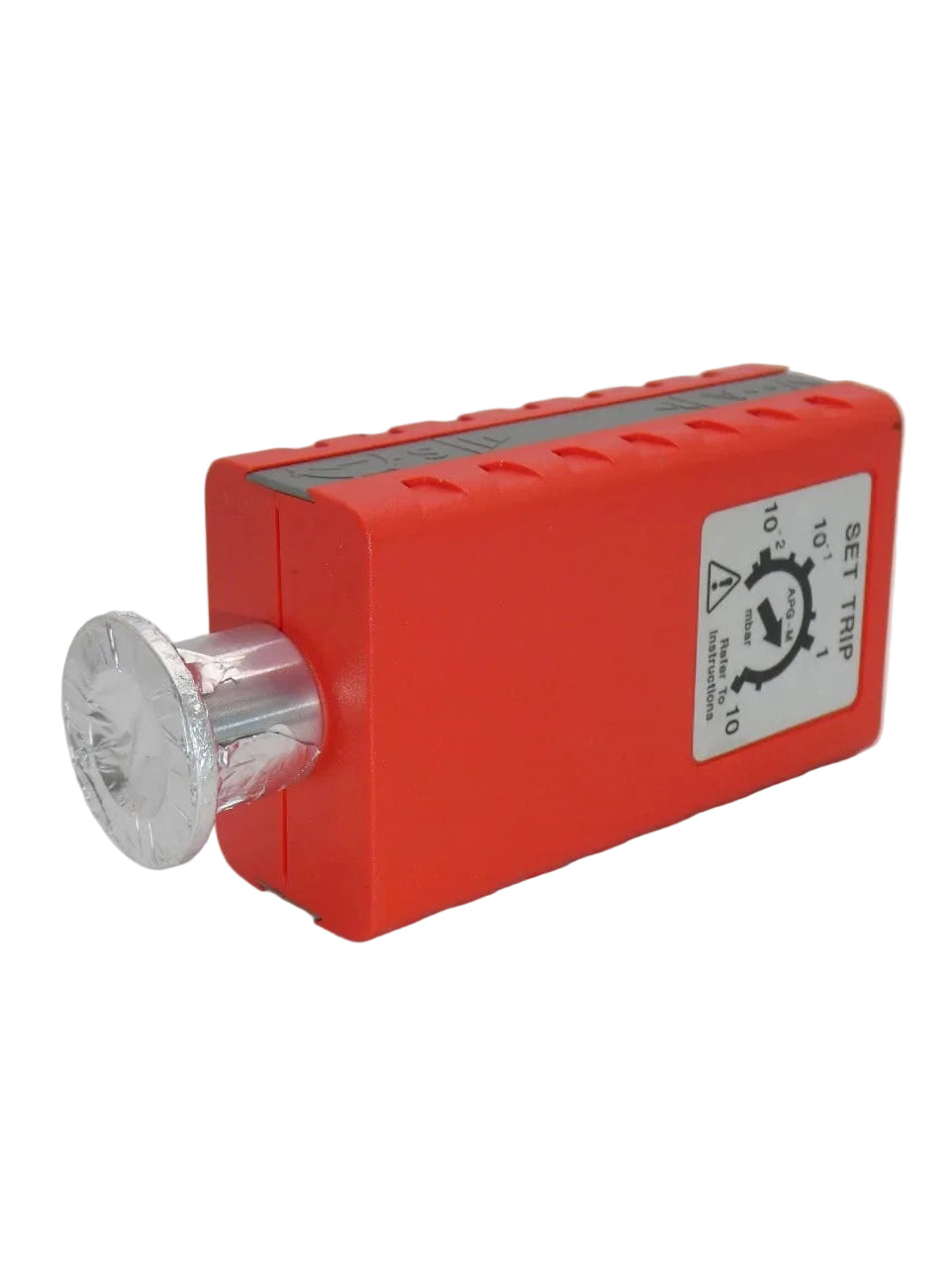

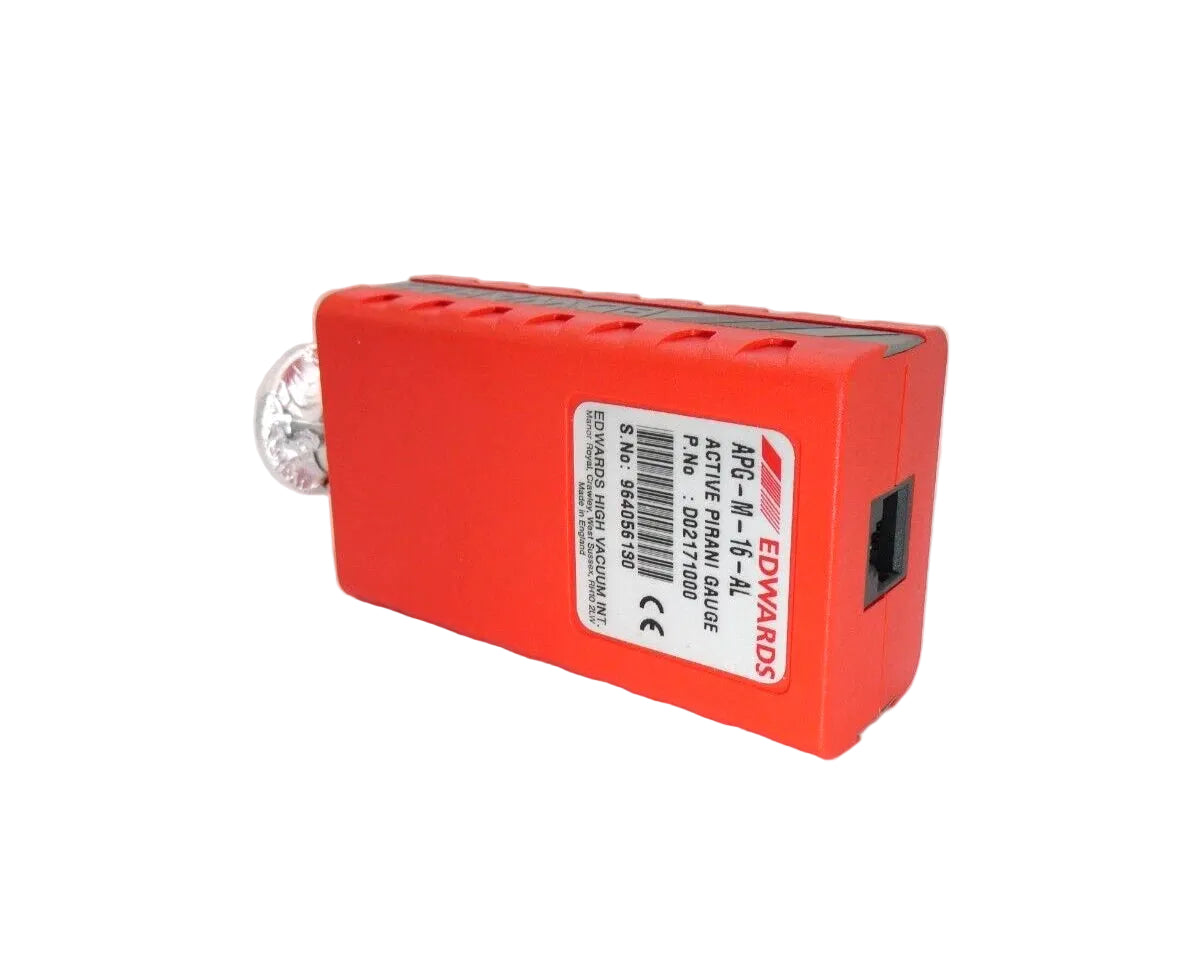

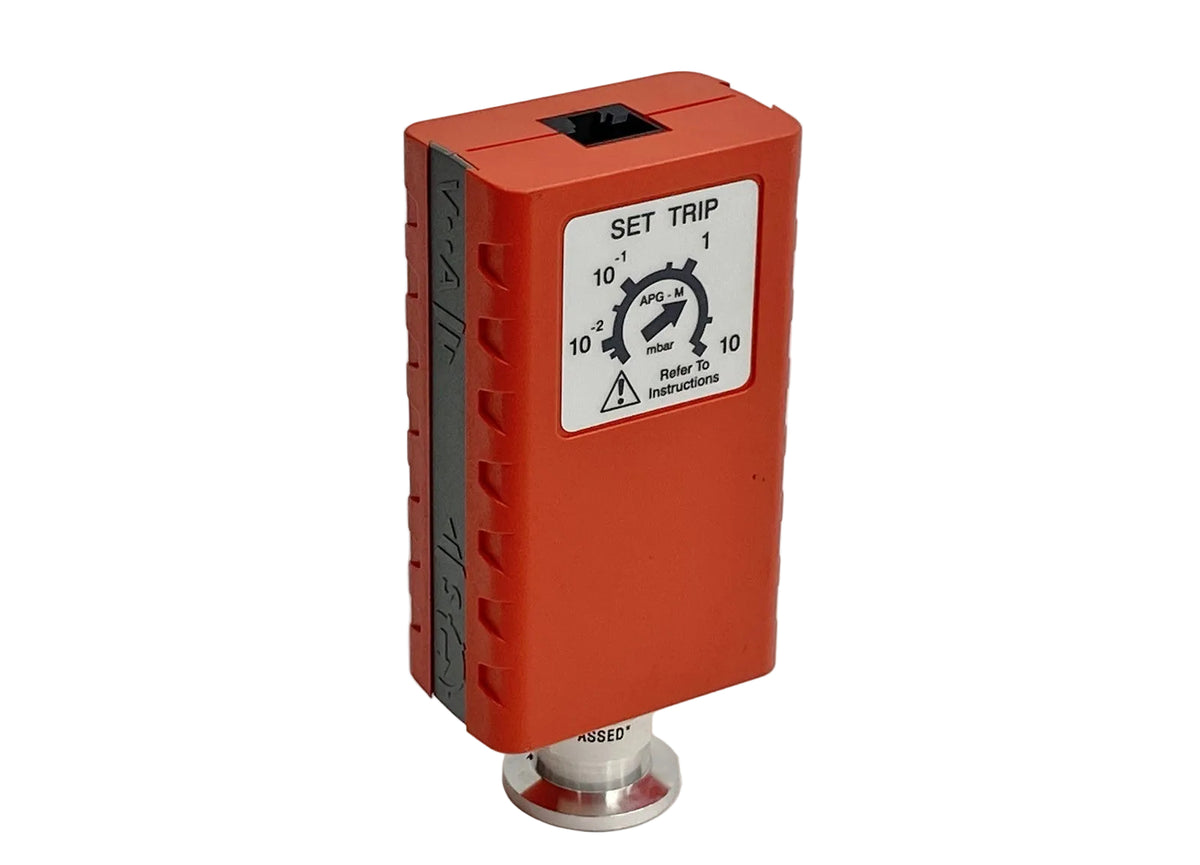

Edwards D02171000 APG-M-NW16 Active Pirani Vacuum Gauge
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D02171000
Description
The Edwards D02171000 is an APG-M-NW16 active Pirani gauge for measuring vacuum pressure from atmosphere to 0.001 mbar. It combines the sensing head and drive electronics in one assembly for monitoring rough-vacuum and backing-pressure applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Controls & Indicators |
| Part Number | D02171000 |
| Subcategory | Pressure Gauge |
| Model | APG-M-NW16 AL |
| Measurement Principle | Pirani |
| Pressure Range | Atmosphere to 0.001 mbar |
| Vacuum Connection | NW16 |
| Power Supply | 20–36 V DC |
| Maximum Power Consumption | 1.5 W |
| Analog Output | 2–10 V DC |
| Setpoint Output | Open-collector transistor |
| Setpoint Electrical Rating | Maximum 40 V DC, 100 mA |
| Electrical Connector | Eight-way FCC68/RJ45 socket |
| Adjustments | Vacuum and atmosphere |
| Operating Temperature | +5 °C to +60 °C |
| Protection Rating | IP40 |
| Gauge Tube Material | Aluminum |
| Filament Material | Gold-coated tungsten |
| Weight | 0.12 kg |
Information About D02171000
The D02171000 is the aluminum-tube version of the Edwards APG-M gauge. Its NW16 connection provides attachment to a compatible vacuum system. The integrated electronics operate from a 20–36 V DC supply and provide an analog pressure signal. Vacuum and atmosphere adjustments allow the gauge to be calibrated at the specified reference conditions.
Key Features:
- Pirani Measurement: Uses a heated filament to determine pressure through gas thermal conductivity.
- Vacuum Monitoring Range: Measures from atmospheric pressure down to 0.001 mbar.
- Integrated Electronics: Combines the gauge head and control electronics in one active unit.
- Analog Output: Provides a 2–10 V DC pressure signal for compatible monitoring equipment.
- Adjustable Setpoint: Includes an open-collector output for pressure-dependent control.
- NW16 Connection: Fits compatible vacuum plumbing through its standard flange connection.
The D02171000 delivers the reliability and precision required for rough-vacuum measurement and backing-pressure monitoring in vacuum equipment.
