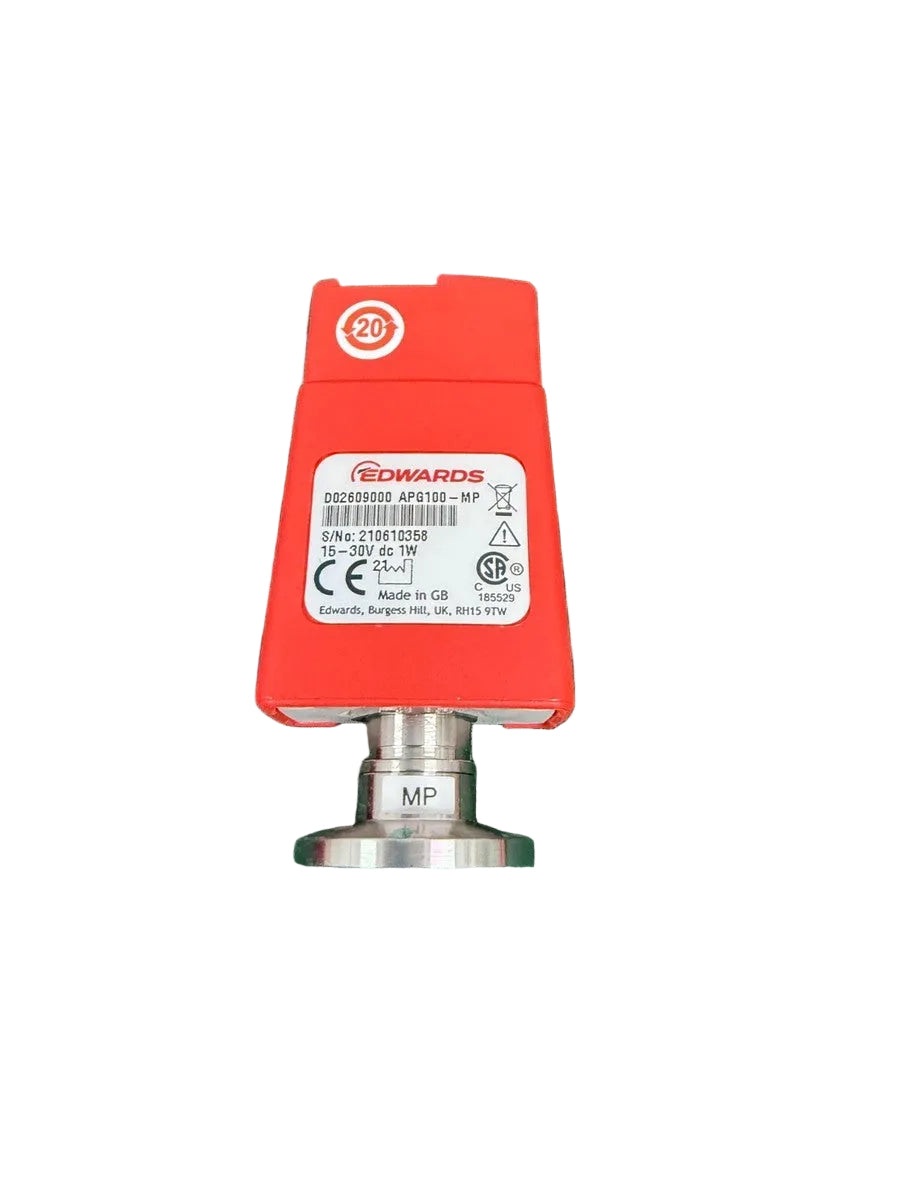

Edwards D02609000 APG100-MP Active Pirani Vacuum Gauge
- Regular price
- $1,592.00
- Sale price
- $1,592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D02609000
Description
The Edwards D02609000 APG100-MP is an active Pirani vacuum gauge designed to measure pressure in vacuum systems. It uses thermal conductivity measurement technology to monitor pressure and provides an electrical output for connection to compatible vacuum controllers and monitoring equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Measuring Instruments |
|
Part Number |
D02609000 |
|
Subcategory |
Vacuum Gauges |
|
Model |
APG100-MP |
|
Measurement Principle |
Pirani thermal conductivity |
|
Pressure Measurement Range |
1000 to 1 × 10⁻³ mbar |
|
Supply Voltage |
15–30 V DC |
|
Power Rating |
1 W |
|
Approvals |
CE |
|
Weight |
0.1 kg |
Information About D02609000
The D02609000 belongs to the Edwards APG100 series of active vacuum gauges, with the MP model designation identifying the specific gauge variant. The APG series uses Pirani measurement technology to determine pressure from the thermal conductivity of the gas surrounding its sensing element. The APG100-MP is listed in Edwards documentation with a display range extending from 1000 mbar. The supplied nameplate identifies a 15–30 V DC, 1 W electrical rating.
Key Features:
-
Measurement Technology: Uses the Pirani principle to measure vacuum pressure through gas thermal conductivity.
-
APG100 Series: Designed for pressure monitoring in compatible vacuum systems.
-
DC Power Supply: Nameplate specifies 15–30 V DC with a power rating of 1 W.
-
Active Gauge Design: Provides an electrical measurement signal for compatible controllers or monitoring equipment.
-
Gauge Identification: APG100-MP model designation identifies the specific gauge variant.
The D02609000 delivers the reliability and precision required for vacuum pressure measurement in industrial and laboratory systems.
