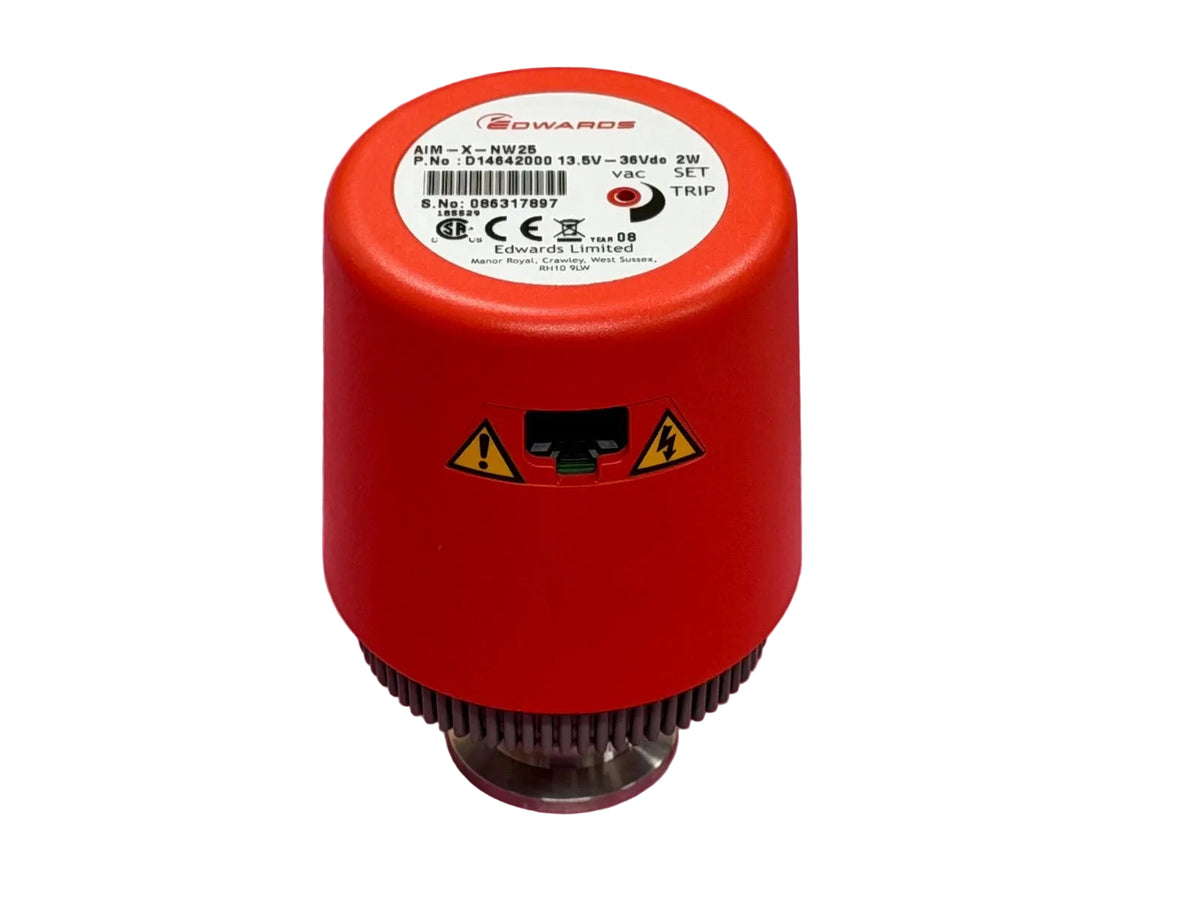

Edwards D14642000 AIM-X Active Inverted Magnetron Vacuum Gauge DN 25 CF
- Regular price
- $2,992.00
- Sale price
- $2,992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D14642000
Description
The Edwards D14642000 AIM-X Magnetron Gauge is an active inverted magnetron vacuum gauge designed to measure pressure across an ultra-high vacuum range. It combines a cold-cathode ionization sensor with integrated drive electronics and provides a 2–10 V DC output for pressure monitoring through compatible control systems. The gauge features a DN 25 CF flange, a 13.5–36 V DC power supply range, and an IP40-rated enclosure for industrial and scientific vacuum applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Edwards |
|
Category |
Measuring Instruments |
|
Part Number |
D14642000 |
|
Subcategory |
Vacuum Gauges |
|
Model |
AIM-X-NW25 |
|
Gauge Technology |
Active inverted magnetron, cold-cathode ionization |
|
Pressure Measurement Range |
1 × 10⁻² to 1 × 10⁻⁹ mbar |
|
Typical Accuracy |
±30% |
|
Inlet Flange |
DN 25 CF |
|
Power Supply |
13.5–36 V DC |
|
Maximum Power Consumption |
2 W |
|
Analog Output Signal |
2–10 V DC |
|
Set-Point Output |
Open collector, up to 40 V DC and 100 mA |
|
Maximum Overpressure |
10 bar absolute |
|
Enclosure Rating |
IP40 |
|
Operating Temperature |
+5 to +60 °C |
|
Storage Temperature |
0 to +70 °C |
|
Weight |
2.01 lb |
Information About D14642000
The D14642000 belongs to Edwards’ AIM-X series of active inverted magnetron gauges. Its integrated electronics regulate gauge operation and provide an analog signal for connection to a computer or programmable logic controller (PLC). The gauge includes fault indication and an open-collector set-point output rated up to 40 V DC and 100 mA. Its integrated Faraday shield helps reduce electrical noise interference.
Key Features:
-
Wide Pressure Measurement Range: Measures pressures from 1 × 10⁻² to 1 × 10⁻⁹ mbar.
-
Integrated Electronics: Combines the gauge sensor and drive electronics in one compact unit.
-
Analog Output: Provides a 2–10 V DC signal for pressure monitoring and system integration.
-
Flexible DC Supply: Operates from a 13.5–36 V DC power source.
-
DN 25 CF Connection: Supports installation in compatible vacuum systems using a DN 25 CF flange.
-
Set-Point Output: Includes an open-collector output rated up to 40 V DC and 100 mA.
-
Noise Resistance: Uses a low-impedance output and integral Faraday shield to improve signal integrity.
-
Operating Temperature: Supports ambient operating temperatures from +5 to +60 °C.
The D14642000 delivers the reliability and precision required for vacuum pressure monitoring in scientific and industrial systems.
